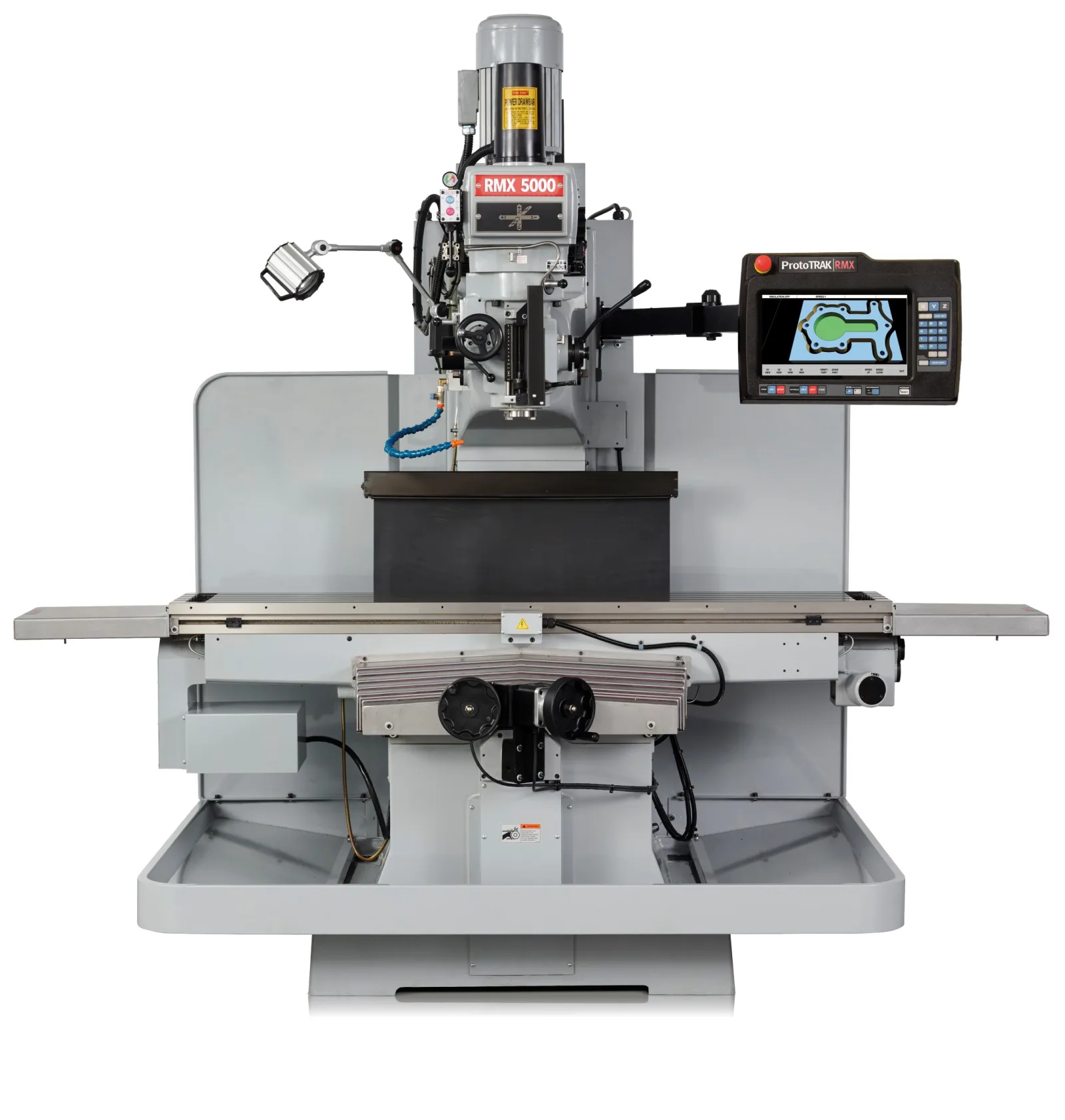

King Rich RMX 5000 ProtoTRAK CNC Mill

Product overview

About this machine.

Note: Machine images shown with SMX control & manual hand wheels.

Give yourself an advantage! How many companies do you know with 1500mm capacity on a relatively low cost CNC Bed Mill.

The King Rich KR-B4V interfaced with the ProtoTRAK RMX CNC Controller offers a proven rigid construction solid slide-way fixed bed milling solution.

This 3 axis CNC offers the latest ProtoTRAK technology. Canned cycles include pockets of every shape conceivable, pockets with islands, thread milling, bolt hole patterns, drilling, tapping and boring. AGE profiling means no more calculations! With the unique guess key, if a dimension is missing from the drawing simply guess the approximate position of a point or intersection, 3D surfacing with on board DNC and the capability to handle virtually unlimited program size.

Electronic Handwheels allow in manual operation the Handwheel to be switched between course and fine, as well it has the advantage of the handwheels not spinning around when in automatic mode.

The powerful TRAKing feature of the ProtoTRAK SMX CNC comes in that you no longer have to choose between the efficiency of CNC and manual control. With TRAKing, you don't have to go through the process of proving out the CNC program before you press the Go button. You can run the CNC program at the speed at which you crank the handwheel. Go fast, go slow, stop and take a measurement, go backwards, whatever. You are in complete control as the machine moves the table, saddle and (for 3-axis models) ram through the programmed coordinates.

NB: Guards removed for clarity
