T-Jaw Toolroom Vertical Bandsaw Series
1 / 5
T-Jaw logo WEB-TJAW

Saws & Cutting · Vertical saws

T-Jaw Toolroom Vertical Bandsaw Series

T-Jaw Vertical Bandsaws 360 - 1000mm throat models

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

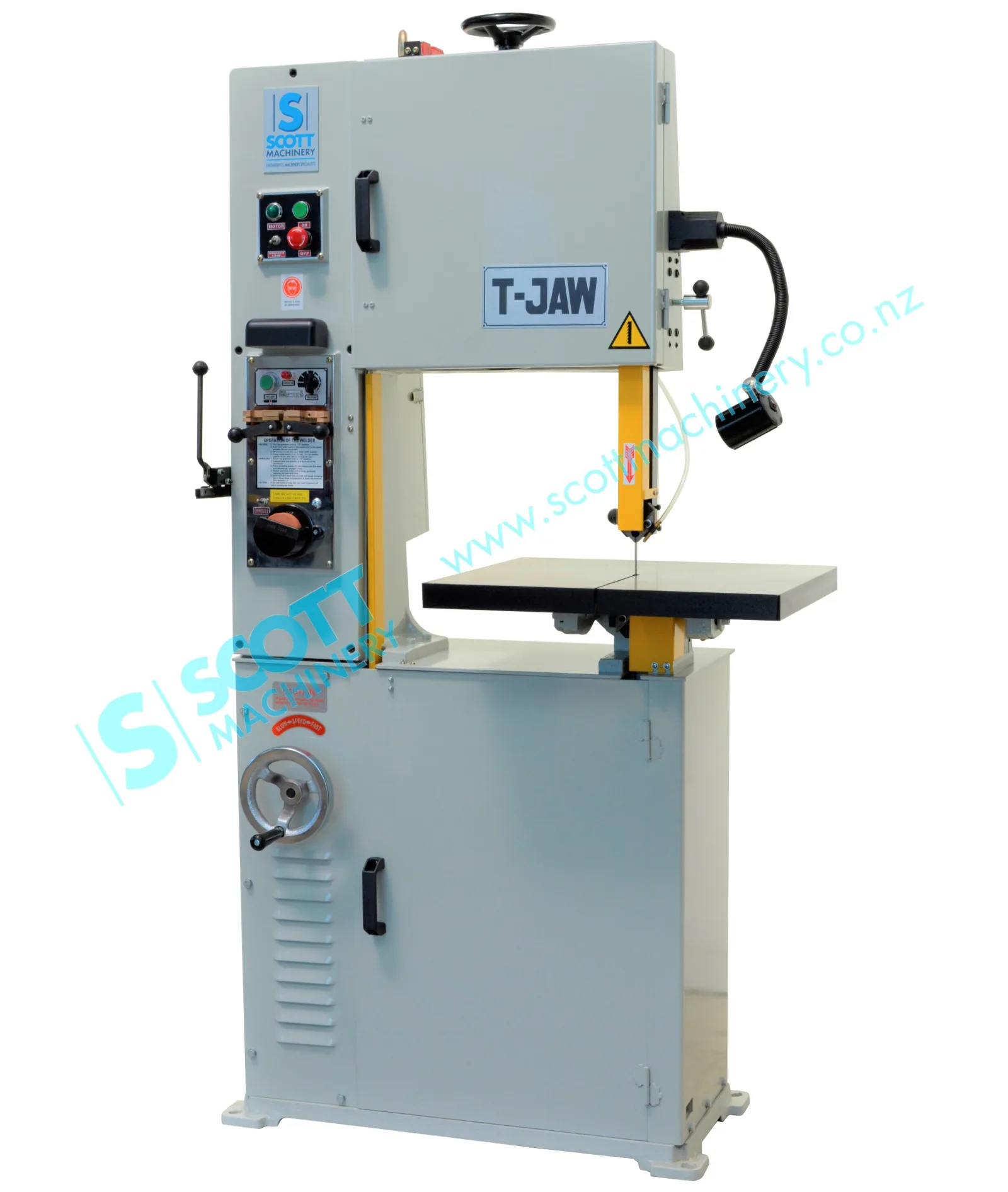

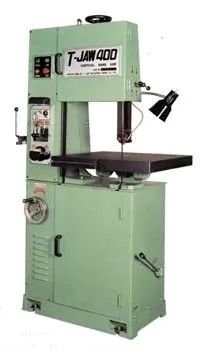

Models 400, 450, 500 & 1000 pictured Image 1 - 450 Image 2 - 400 Image 3 - 500 (Fitted with optional power fed table) Image 4 - Optional power fed table Image 5 - 1000 (Fitted with optional circle cutting attachment & mitre gauge)

Key features

  • Cast iron frame for rigidity
  • Infinitely variable blade speed adjustable by handwheel while blade is running
  • The band tension is cushioned
  • Blade shear, welder & grinder on front
  • Interchangeable saw wheels
  • Brush for cleaning blade drive wheel
  • Air pump for chip removal around cut
  • Upper wheel band adjustment
  • Adjustable saw blade guides
  • Machine light fitted (stock 450 machine fitted with LED work light)
  • Table tilt 4 ways
  • CE
  • Made in Taiwan
  • Three phase

Optional

  • Mitre gauge
  • Powerfeed to table
  • Circle cutting attachment
  • E-stop foot pedal

450 Most popular & best value model

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model 360 400 450 500 600 700
Throat mm 360 400 450 510 600 715
Height mm 200 250 254 360 304 360
Table size mm 565 x 500 600 x 560 565 x 500 740 x 680 740 x 680 740 x 680
Blade widths mm 3-13 3-15 3-15 3-25 3-25 3-25
Blade lengths mm 2850 - 3030 3120 - 3300 3430 - 3560 3960 - 4092 4244 - 4376 3960 - 4092
Table height mm 1000 1010 970 1000 1000 1000
Machine height mm 1600 1880 1714 2050 2100 1890
Motor HP 1 2 1 2 2 2
Weight kg 330 550 380 600 670 700

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.

0800 215 215 sales@scottmachinery.co.nz
Auckland · Christchurch · Nationwide support
Regarding T-Jaw Toolroom Vertical
