T-Jaw Toolroom Vertical Bandsaw Series
POA
WEB-TJAW | Prices exclude GST
Product overview
About this machine.

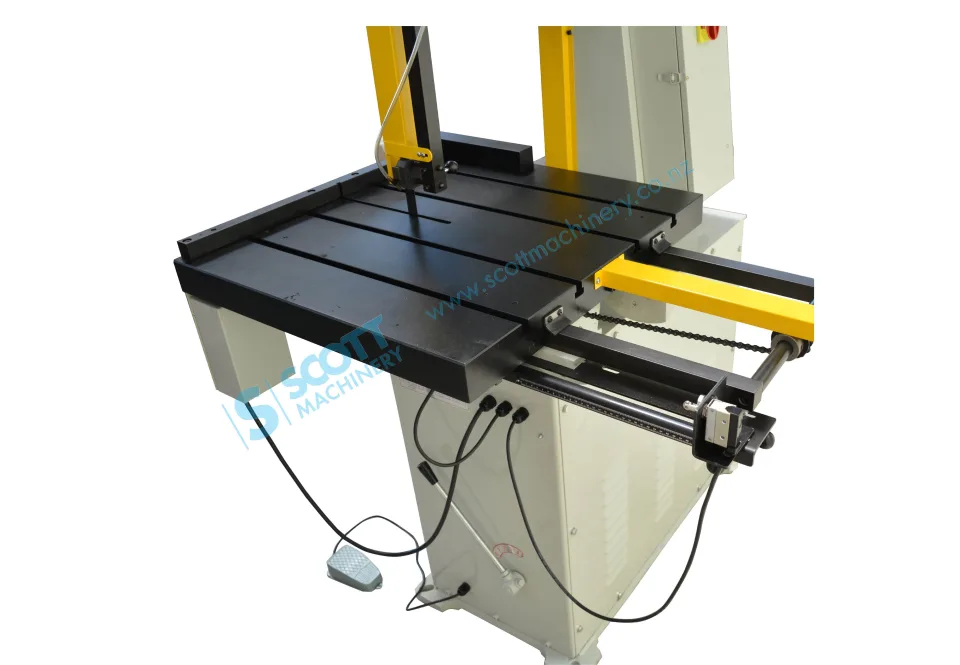

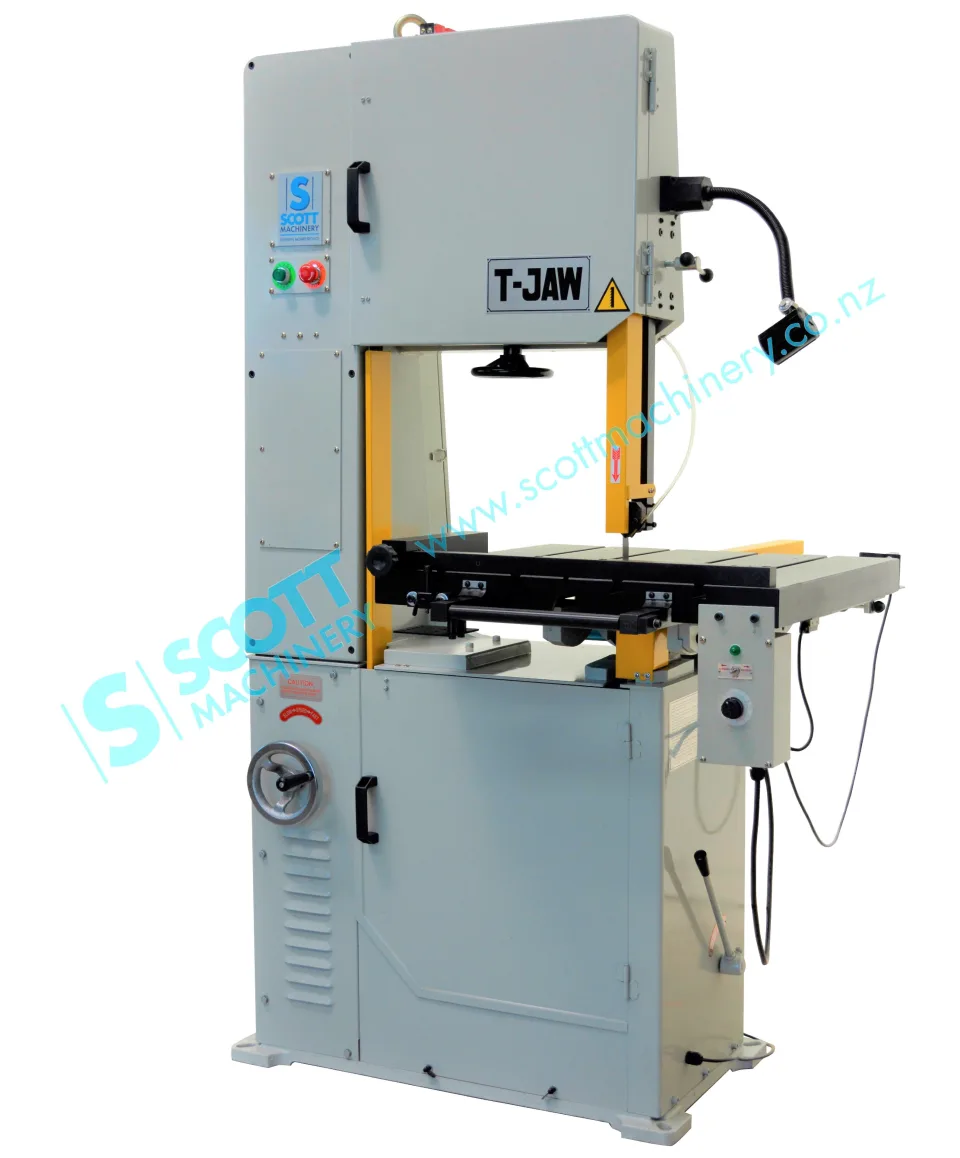

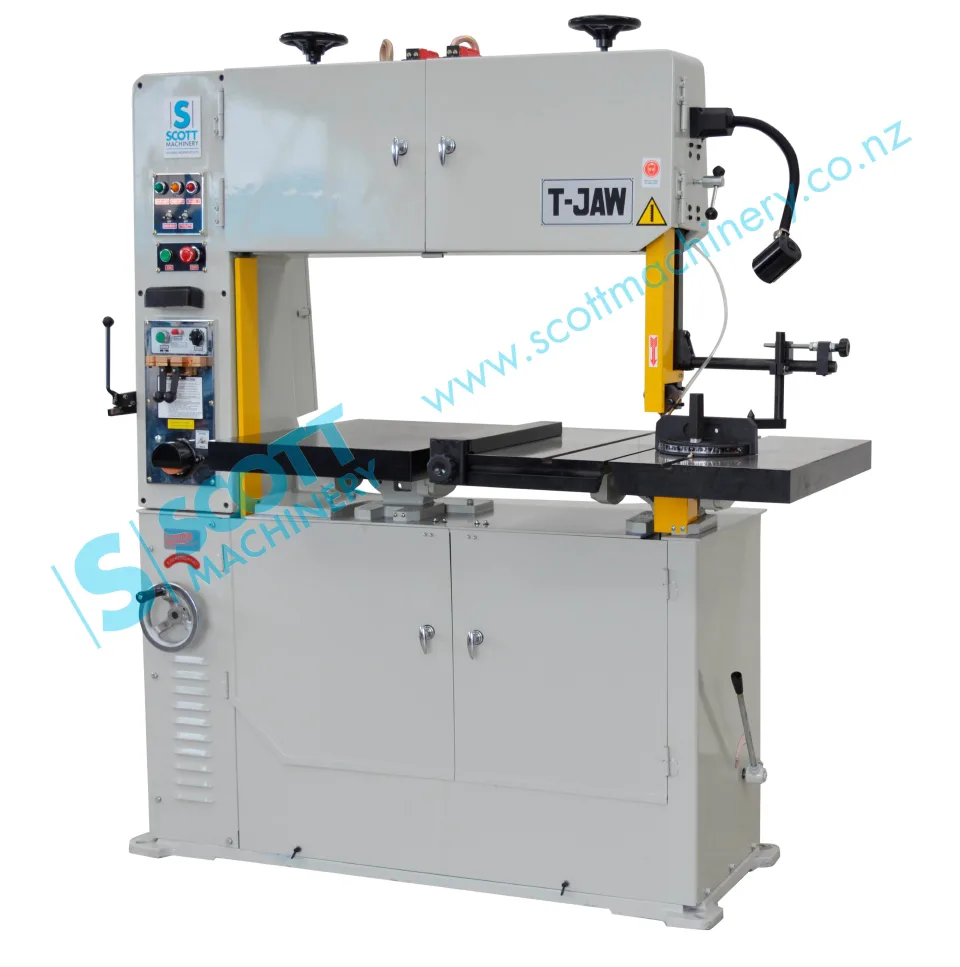

Models 400, 450, 500 & 1000 pictured Image 1 - 450 Image 2 - 400 Image 3 - 500 (Fitted with optional power fed table) Image 4 - Optional power fed table Image 5 - 1000 (Fitted with optional circle cutting attachment & mitre gauge)
Key features
- Cast iron frame for rigidity
- Infinitely variable blade speed adjustable by handwheel while blade is running
- The band tension is cushioned
- Blade shear, welder & grinder on front
- Interchangeable saw wheels
- Brush for cleaning blade drive wheel
- Air pump for chip removal around cut
- Upper wheel band adjustment
- Adjustable saw blade guides
- Machine light fitted (stock 450 machine fitted with LED work light)
- Table tilt 4 ways
- CE
- Made in Taiwan
- Three phase
Optional
- Mitre gauge
- Powerfeed to table
- Circle cutting attachment
- E-stop foot pedal
450 Most popular & best value model
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | 360 | 400 | 450 | 500 | 600 | 700 | |
|---|---|---|---|---|---|---|---|
| Throat | mm | 360 | 400 | 450 | 510 | 600 | 715 |
| Height | mm | 200 | 250 | 254 | 360 | 304 | 360 |
| Table size | mm | 565 x 500 | 600 x 560 | 565 x 500 | 740 x 680 | 740 x 680 | 740 x 680 |
| Blade widths | mm | 3-13 | 3-15 | 3-15 | 3-25 | 3-25 | 3-25 |
| Blade lengths | mm | 2850 - 3030 | 3120 - 3300 | 3430 - 3560 | 3960 - 4092 | 4244 - 4376 | 3960 - 4092 |
| Table height | mm | 1000 | 1010 | 970 | 1000 | 1000 | 1000 |
| Machine height | mm | 1600 | 1880 | 1714 | 2050 | 2100 | 1890 |
| Motor | HP | 1 | 2 | 1 | 2 | 2 | 2 |
| Weight | kg | 330 | 550 | 380 | 600 | 670 | 700 |
