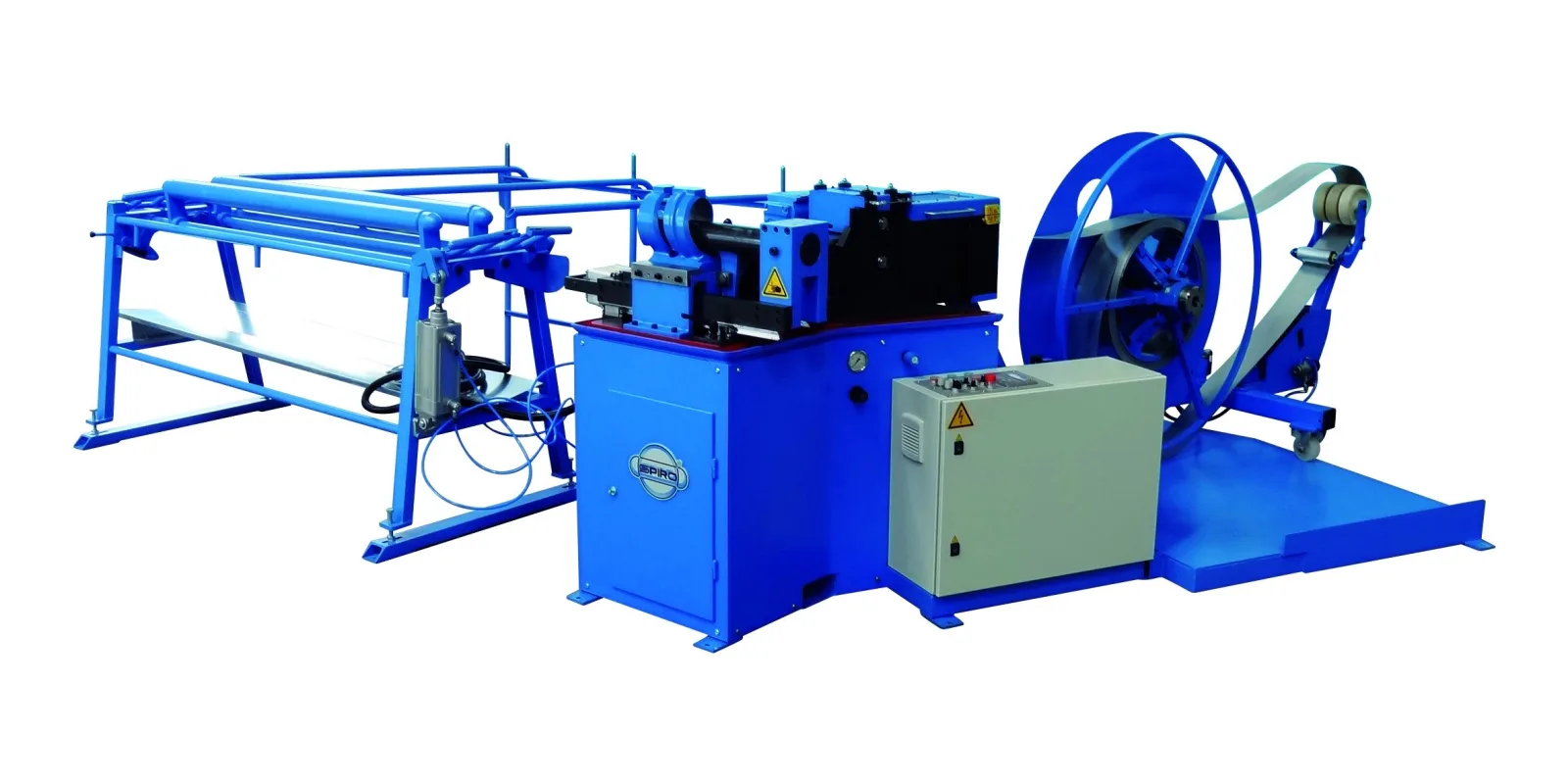

Spiro X-20 Tubeformer

Tubeformer Swiss design, 80 to 1250mm diameter

POA Configured to suit your application. Talk to us for a price.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

This rigid and highly mobile Tubeformer is ideal for on-site work and performs strongly in a rough environment. The compact design and selected technology allows for an easy relocation to a new worksite.

"The new generation of SPIRO FLYING SLITTER, utilizing extra strong linear guides in combination with the strength of the toggle joint, results in the perfect cut."

The spiral duct machine captures the All-In-One approach, including the run-off table, decoiler, automatic discharge function, corrugation unit, Spiro flying slitter, and standard tooling up to 1.0 mm. The Tubeformer X-20 design accomplishes the HVAC-industry requirements to produce in galvanized steel, stainless steel or aluminium, as well as fulfilling the DIN, EUROVENT, and SMACNA standards.

SPIRO offer the best in the business 2 year warranty.

Main Features:

  • Frequency controlled main drive, fast start-stop
  • Easy access angle adjustment
  • Control panel with easy to use interface
  • Easy set automatic length control system
  • Cut to length with 2nd generation SPIRO FLYING SLITTER, basic tooling included
  • Run-Off table with discharge and receiving ramp, max 3m tube length
  • Integrated vertical decoiler, DCV-1000
  • Corrugation unit 2C for inside or outside stiffening
  • SPIRO quick setup Form roller cassette No 1A, 0.4-0.6 x 137mm
  • SPIRO quick setup Form roller cassette No 3, 0.7-1.0 x 137mm

Technical Data:

Diameter range:

  • 80 to 1250mm

Strip:

  • 0.4-1.0 x 137mm galvanized
  • 0.4-0.6 x 137mm stainless

Coil data:

  • Max weight 1000kg
  • Coil min 508mm, max 1200mm

Corrugation:

  • Min 250mm
  • Max strip thickness 1.3mm galvanized

Performance Tested / Guaranteed (duct of 3 m length)

  • 0.5 mm (0.020in) thickness 100 mm (4in) diameter 180 Ducts/hour
  • 0.7 mm (0.028in) thickness 500 mm (20in) diameter 53 Ducts/hour
  • 0.9 mm (0.035in) thickness 1250 mm (50in) diameter 23 Ducts/hour
