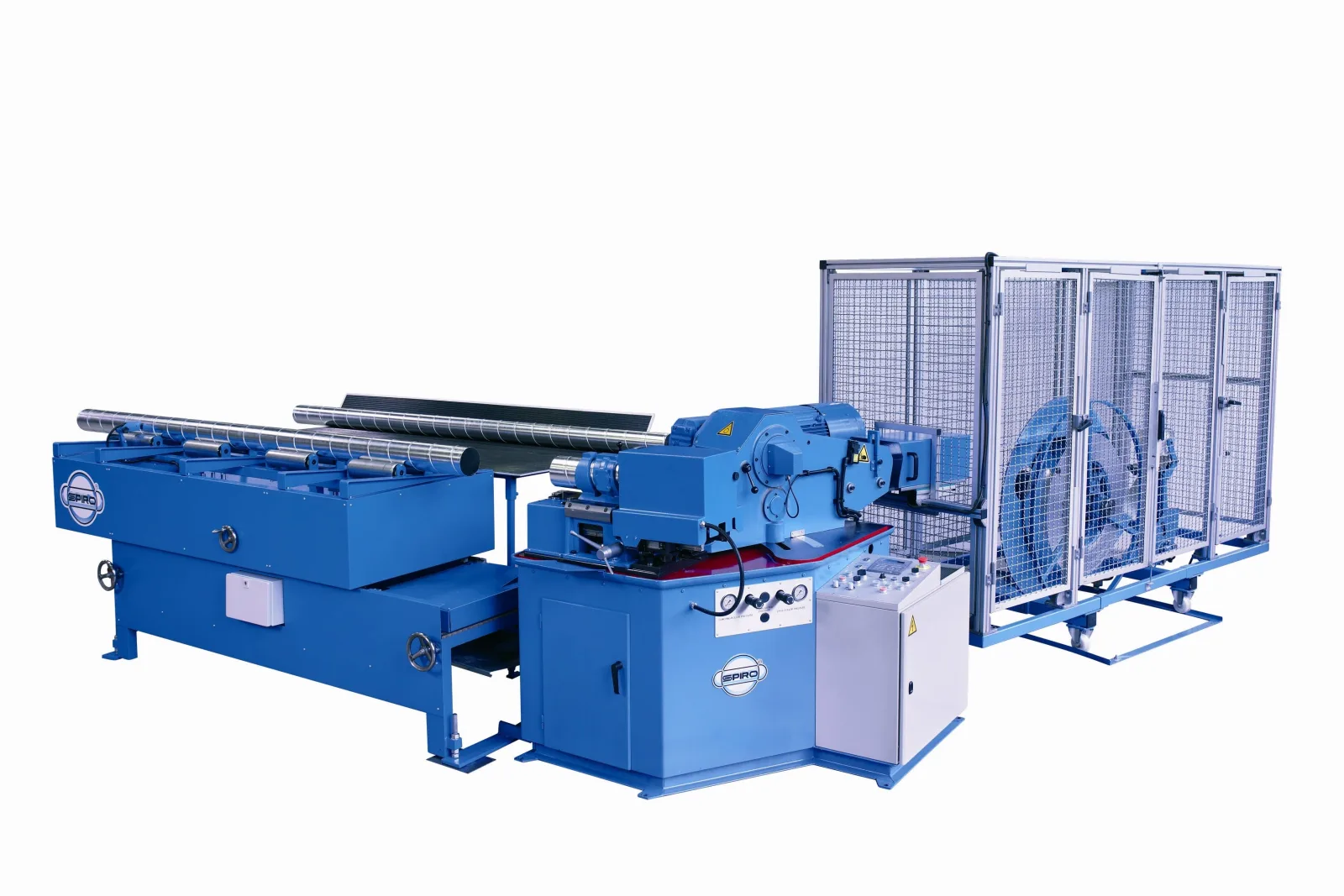

Spiro 1602 Tubeformer
Tubeformer Swiss design, 80 to 1600mm diameter
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
The Tubeformer 1602 is the most sold Tubeformer model in the world!
This state-of-the-art Tubeformer convinces with reliability, performance-driven approach, stability, and has the proven qualities for what Spiro stands for.
"The worlds best tubeformer revolutionized an entire industry"
The Tubeformer 1602 / 3600 is custom-tailored through its configurations that brings the user the comfort of producing only what he needs and provides the option to expand and adapt the machine functionality in the future.
SPIRO offer the best in the business 2 year warranty.
Main Features:
- Frequency controlled main drive
- Control panel with easy to use interface, buttons for rough environment
- Programmable automatic length control system
- Cut to length with SPIRO FLYING SLITTER, basic tooling included
- Run-Off table with discharge and receiving ramp, max 3m tube length
- Vertical decoiler, DCV-1000, as standard the decoiler is delivered to be loaded from the operator side of the machine
- Corrugation unit 2C for inside or outside stiffening
- Monitoring production output
- Hydraulically controlled drive roller pressure
- Hydraulically operated clinching roller
- Form roll unit No.1A, 0.4-0.6 x 137mm
- Form roll unit No.3, 0.7-1.0 x 137mm
Technical Data:
Diameter range:
- 80 to 1600mm*
Strip:
- 0.4-1.0 x 137mm galvanized
- 1.1-1.3 x 140mm galvanized*
- 0.4-0.6 x 137mm stainless steel*
Coil data:
- Max weight 1000kg
- Coil min 508mm, max 1200mm
Corrugation:
- Min 250mm
- Max strip thickness 1.3mm galvanized
* requires options not standard
NB: Images and videos may show options included
