SHET-0-5160
Sheet Metal & Fabrication · Coil processing

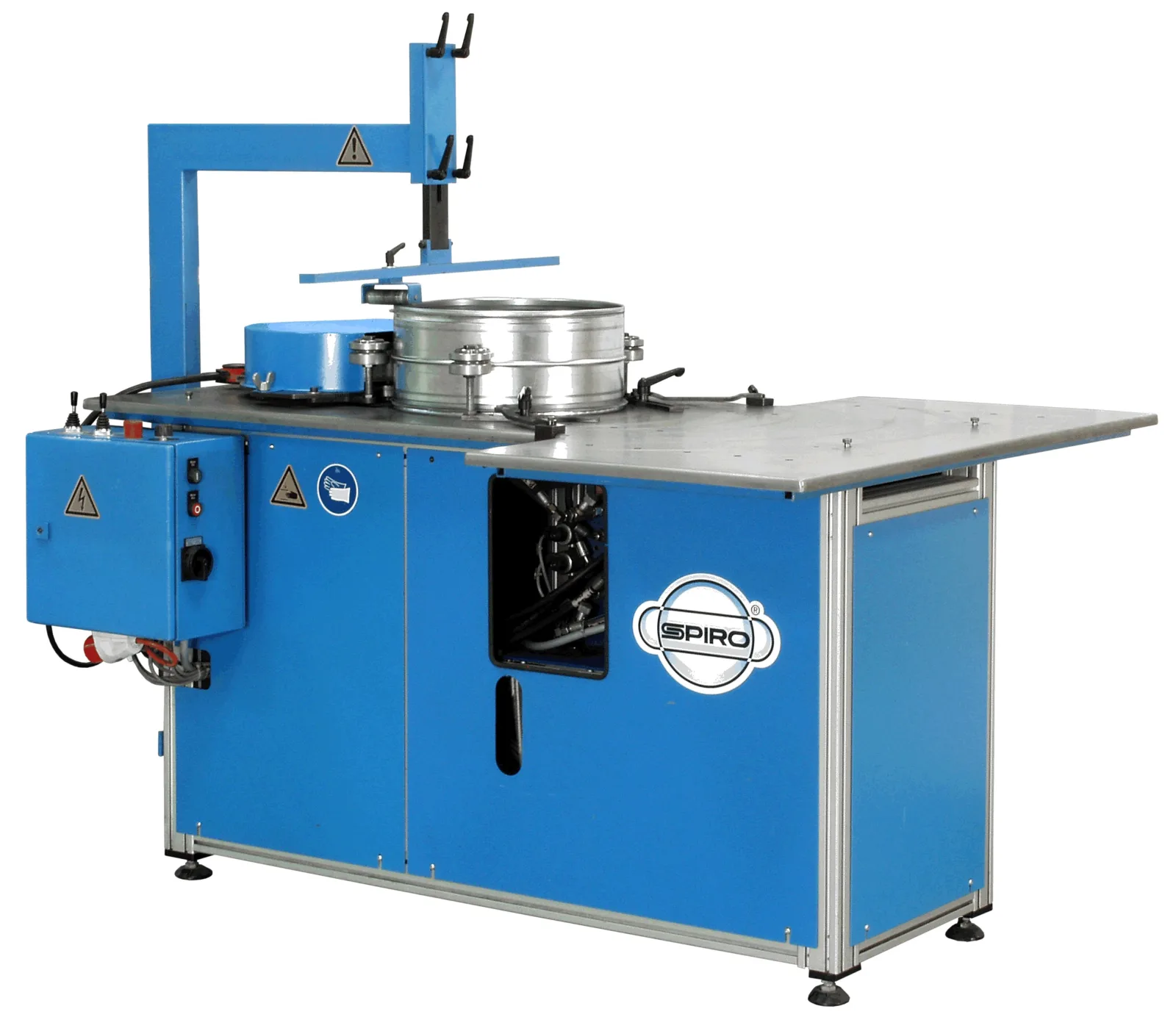

Spiro Fittingshaper 1250
Fittingshaper Swiss design
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
The Fittingshaper contributes vitally to reduce the leakage rate in the ventilation system, resulting in reduced energy consumption costs!
The Fittingshaper is a flexible machine made for mounting rubber gaskets to fittings in small volumes but with many different sizes.
Combine the Fittingshaper 1250 & Spiro Shaper to achieve the full dimension range of rubber gasket on your fittings!
SPIRO offer the best in the business 2 year warranty.
Key features
- Makes it possible to obtain tightness class D also on large dimensions
- Complete set of tooling included, profiling wheels for 5 different gasket widths
- Powerful hydraulic system to ensure perfect result on all sheet thicknesses
- Easy adjustable table height and support rollers
- Fast and easy installation
- Factory fitted gasket without any loose parts
- Temperature resistant from -30˚C to +100˚C
- Withstands positive pressure - 3000Pa
Diameter range:
- 125 - 1250mm
Material:
- 0.5 to 0.9mm galvanized steel
- 0.5 to 0.8mm stainless steel
Machine video
See Spiro Fittingshaper in operation.
Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.
Discuss your applicationTalk to Scott Machinery
Is this the right machine for your work?
Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
Auckland · Christchurch · Nationwide support
