Sino SDS6 Digital Readout Displays
2 and 3 axis displays available.
POA
Configured to suit your application. Talk to us for a price.
NZ Prepared, installed and supported nationwide by Scott Machinery.
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
SINO SDS6 Digital Readout Display employs the newest 16 bit SCM technology, can perform all kinds of basic & special functions.
Each axis can supply 40 points of non-linear compensations.
An all-purpose DRO display which can be used for most machine tools including lathes & milling machines etc.

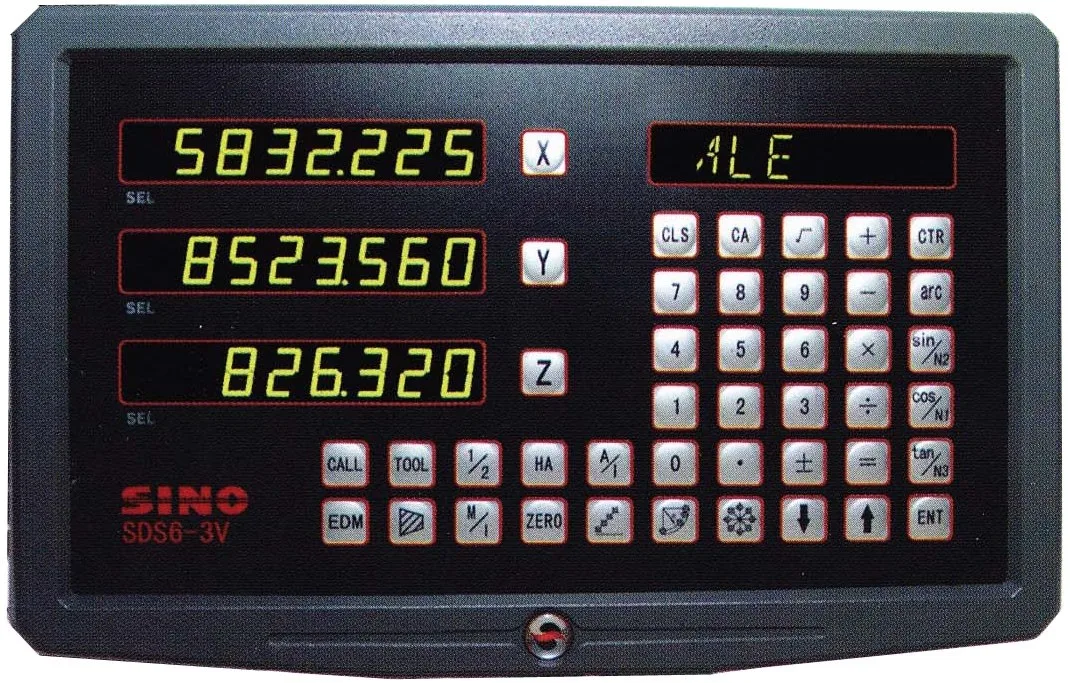

Photo 1 - SDS6-3V 3 Axis Display Photo 2 - SDS6-2V 2 Axis Display
Number of axes 2/3
- Resolution 0.5/1/5
- Radius/Diameter ✔
- mm/inch ✔
- Absolute/incremental ✔
- Half function ✔
- Arc Milling ✔
- Divide the perimeter of circle ✔
- 200 workpiece zero points ✔
- Divide on an oblique line ✔
- Mathematic calculation ✔
- Tool diameter compensation ✔
- Zero stop ✔
- Tool memory ✔
- Error compensation ✔
Note:

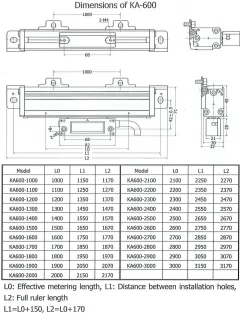

- We generally stock a range of linear scales from 220mm - 3000mm travels.
- For an accurate quote please measure each axis travel, not overall length.
