Sino SDS6 Digital Readout Displays

POA
WEB-SINO-SDS6 | Prices exclude GST
DRO Display Sino SDS6 Digital Readout Displays Sino SDS6 Digital Readout Displays Sino SDS6 Digital Readout Displays Sino SDS6 Digital Readout Displays

Product overview

About this machine.

SINO SDS6 Digital Readout Display employs the newest 16 bit SCM technology, can perform all kinds of basic & special functions.

Each axis can supply 40 points of non-linear compensations.

An all-purpose DRO display which can be used for most machine tools including lathes & milling machines etc.

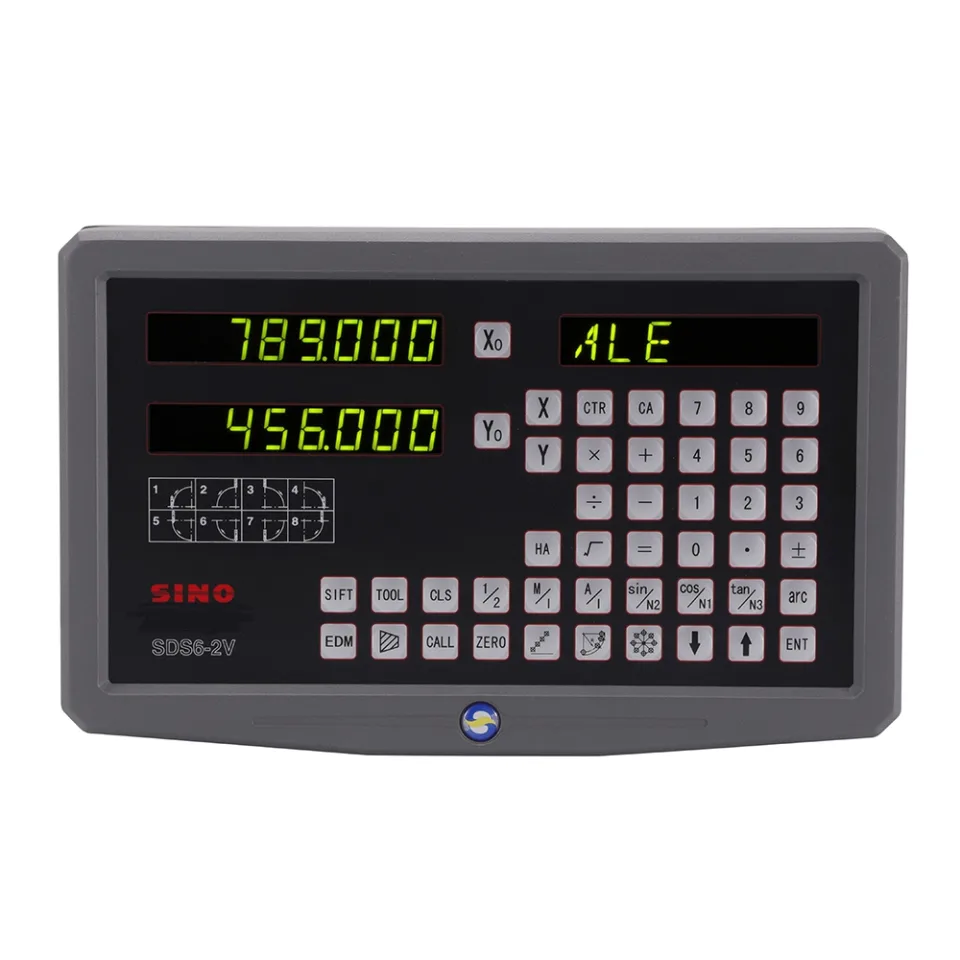

Photo 1 - SDS6-3V 3 Axis Display Photo 2 - SDS6-2V 2 Axis Display

Number of axes 2/3

  • Resolution 0.5/1/5
  • Radius/Diameter ✔
  • mm/inch ✔
  • Absolute/incremental ✔
  • Half function ✔
  • Arc Milling ✔
  • Divide the perimeter of circle ✔
  • 200 workpiece zero points ✔
  • Divide on an oblique line ✔
  • Mathematic calculation ✔
  • Tool diameter compensation ✔
  • Zero stop ✔
  • Tool memory ✔
  • Error compensation ✔

Note:

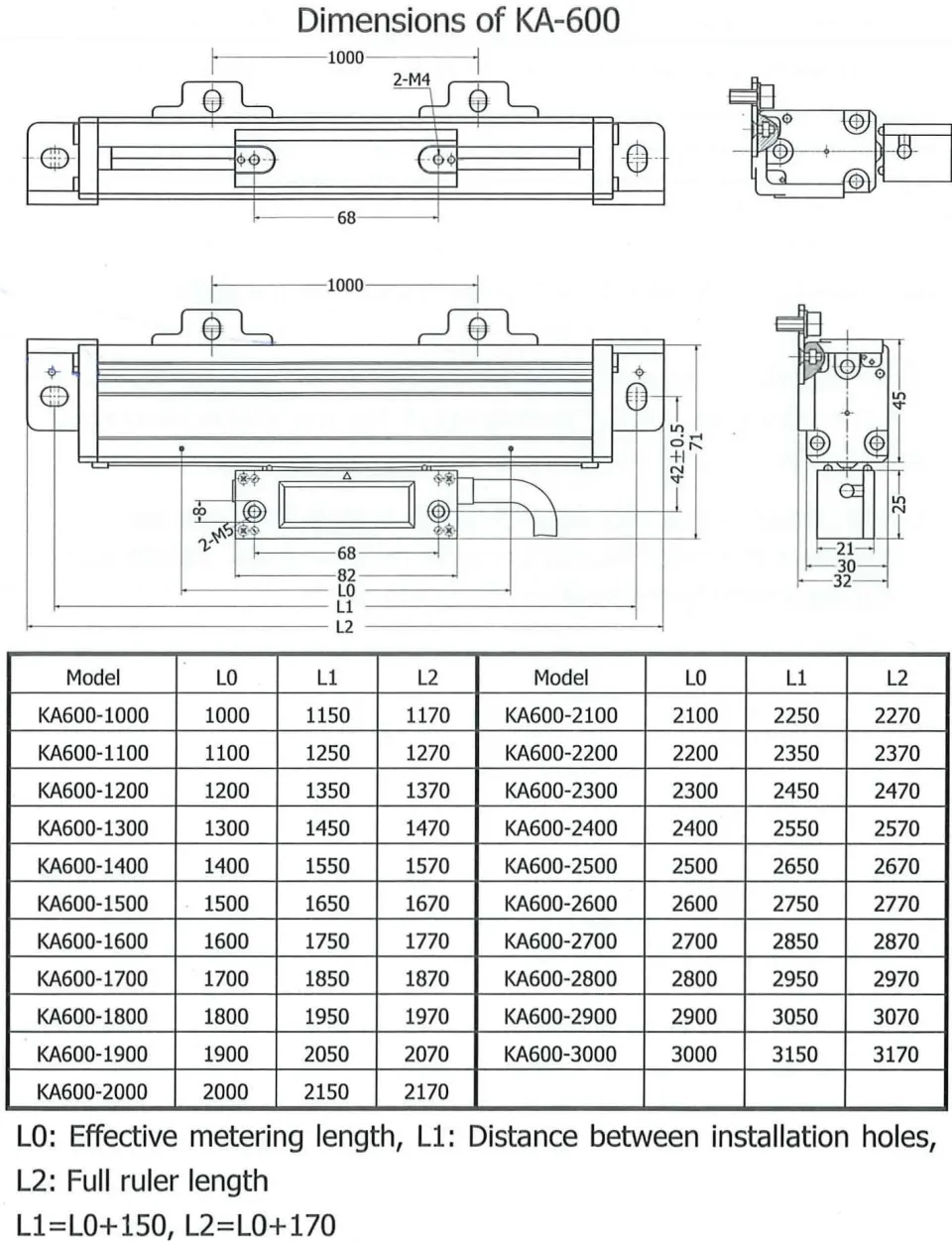

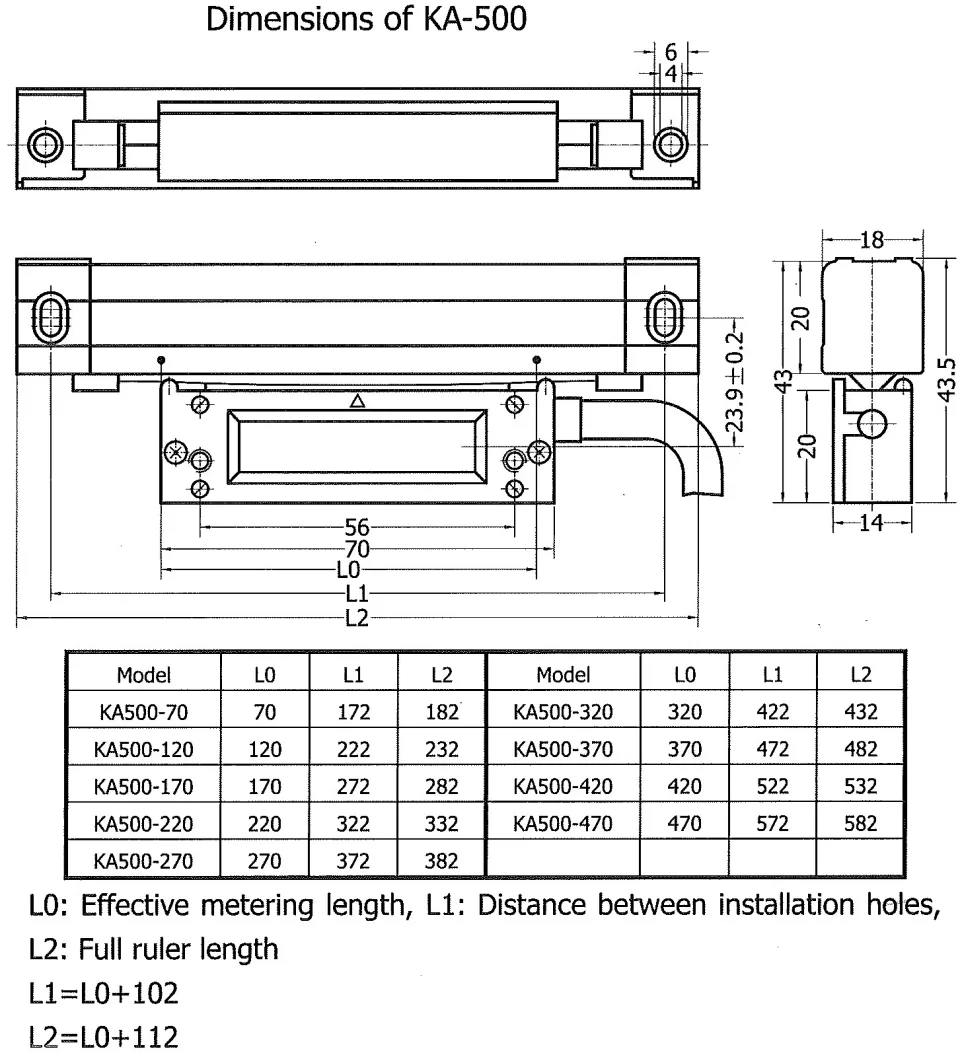

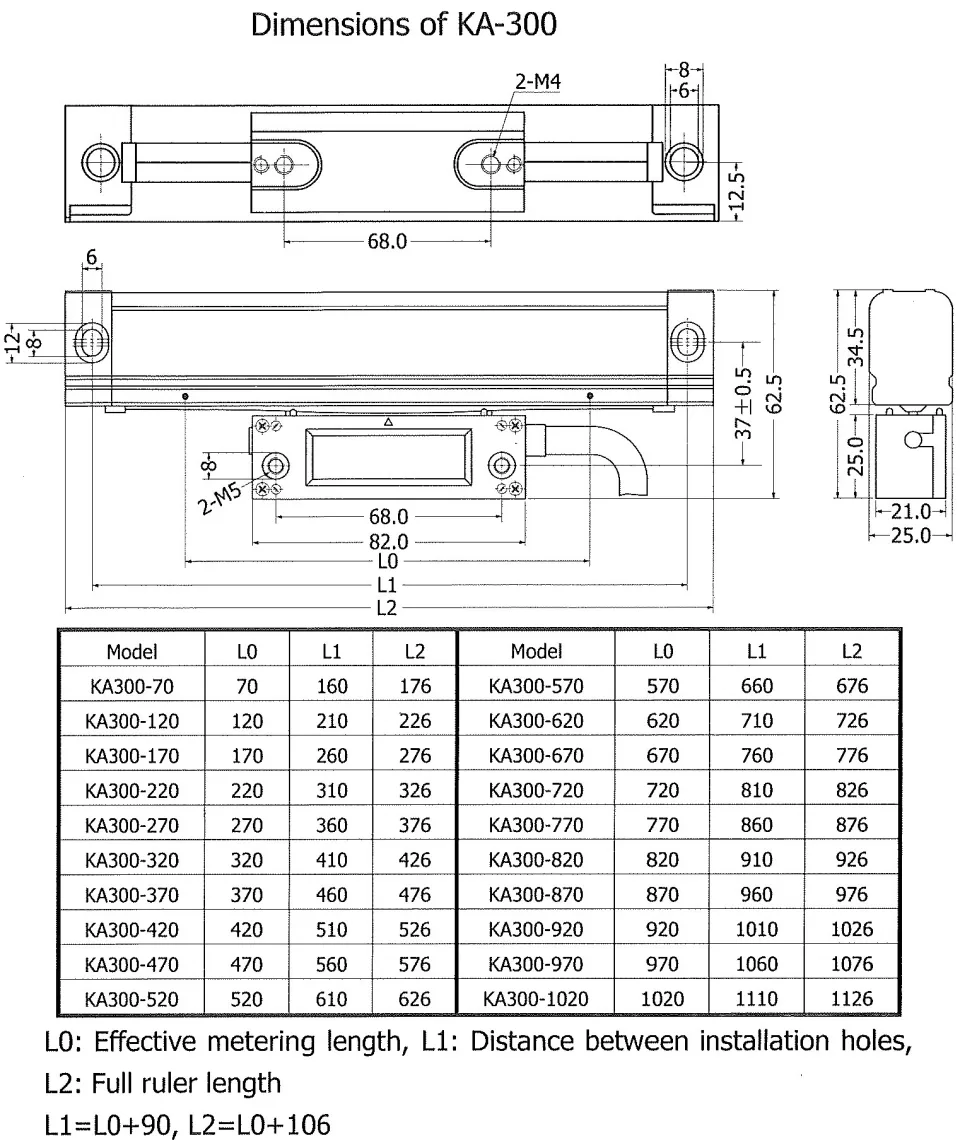

  • We generally stock a range of linear scales from 220mm - 3000mm travels.
  • For an accurate quote please measure each axis travel, not overall length.
