PFRM-0-2075
Workshop Machinery · Workshop presses

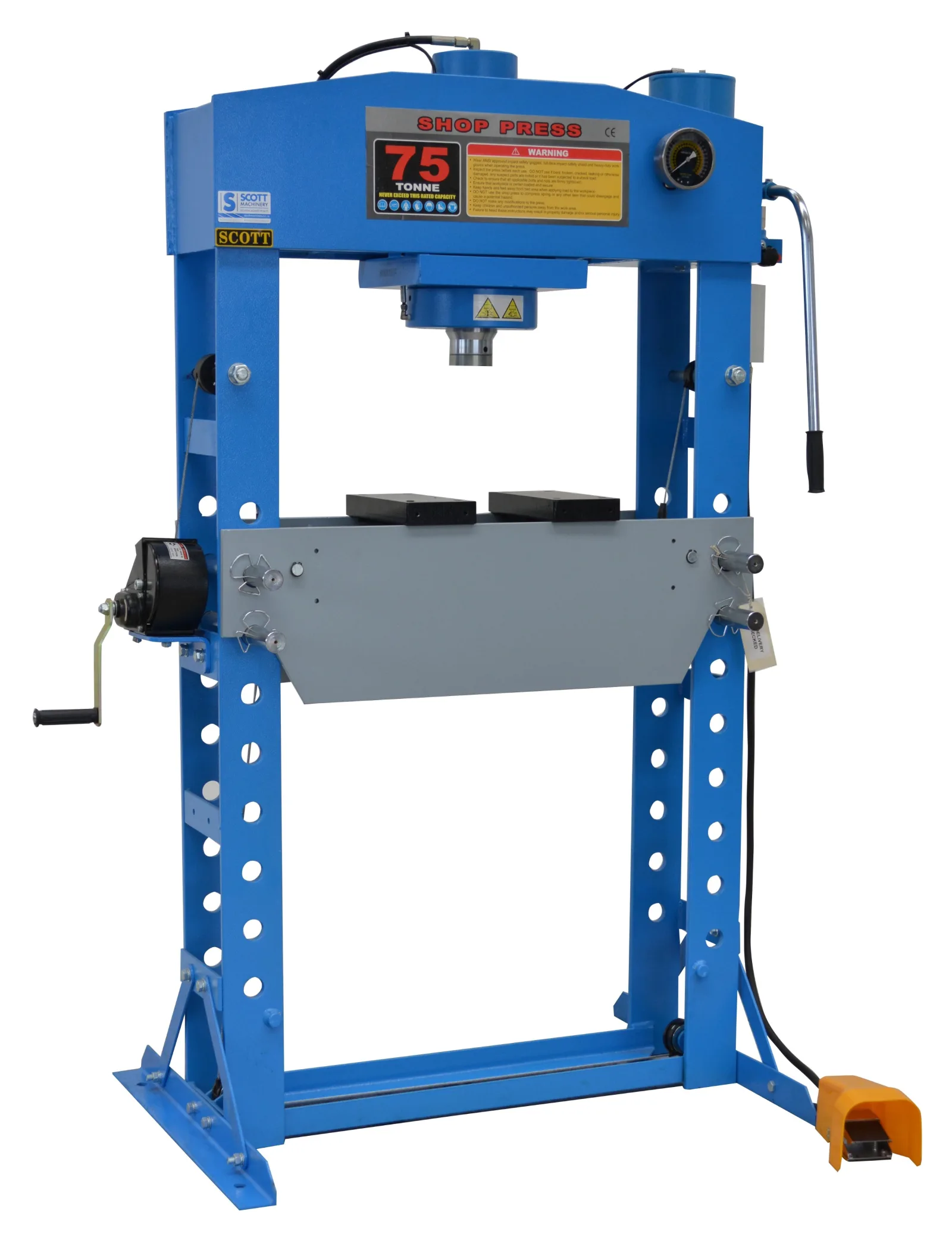

SCOTT HP-75 Workshop Hydraulic Frame Press
Hand hydraulic with pneumatic assistance Moveable sliding cylinder
$4,299.00
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Model
HP-75
Capacity
75 Ton
Ram stroke
250mm
Ram diameter
93mm
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
Hand hydraulic with pneumatic assistance Moveable sliding cylinder
Hand hydraulic pump
- Pneumatic assistance with foot valve

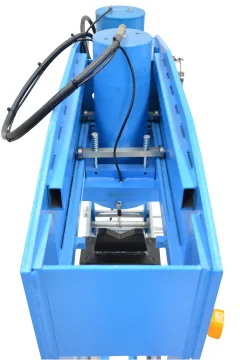

- Moveable sliding cylinder L/R
- Table lift winch
- Vee block set
- Pressure gauge

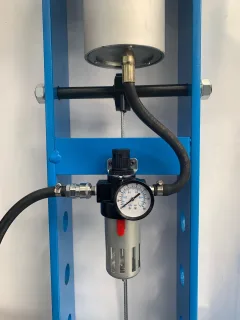

- ** 60 psi line pressure is all that is required to achieve the max. Pressure of 75 ton on this workshop press and the regulator is pre-set to allow this**
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
HP-75
Capacity
75 Ton
Ram stroke
250mm
Ram diameter
93mm
Working range
68 - 884mm
Table width
279mm
Distance between frames
800mm
Floor Dimensions
1450mm w x 1940mm h
Packaged dimensions
1100mm x 1200mm x 2110mm
Nett machine weight
451 kg
Gross weight
497 kg
