SCOTT HP-75 Workshop Hydraulic Frame Press
75 Ton
$4,299.00
PFRM-0-2075 | Prices exclude GST
Product overview
About this machine.
Hand hydraulic with pneumatic assistance Moveable sliding cylinder
Hand hydraulic pump

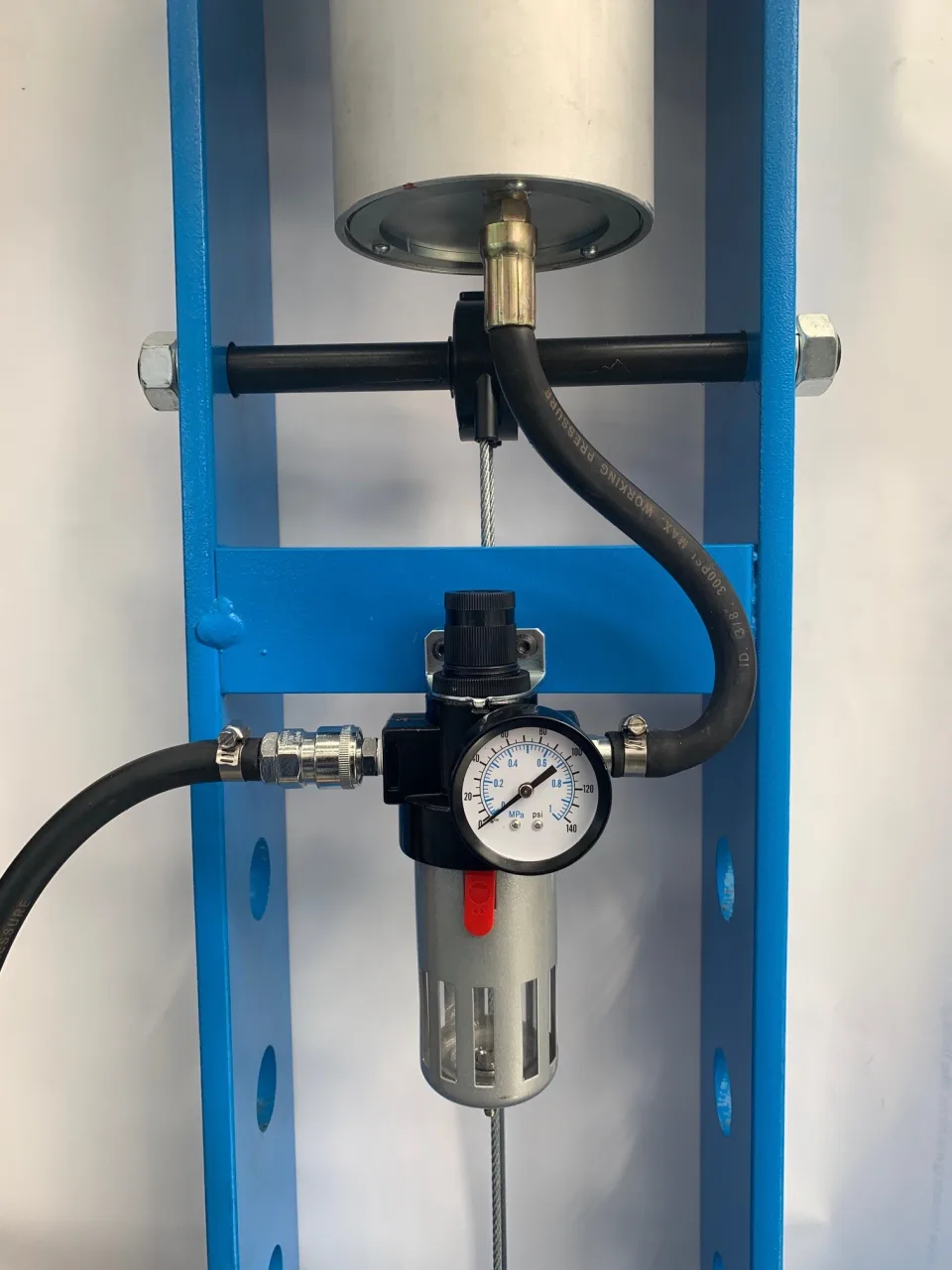

- Pneumatic assistance with foot valve

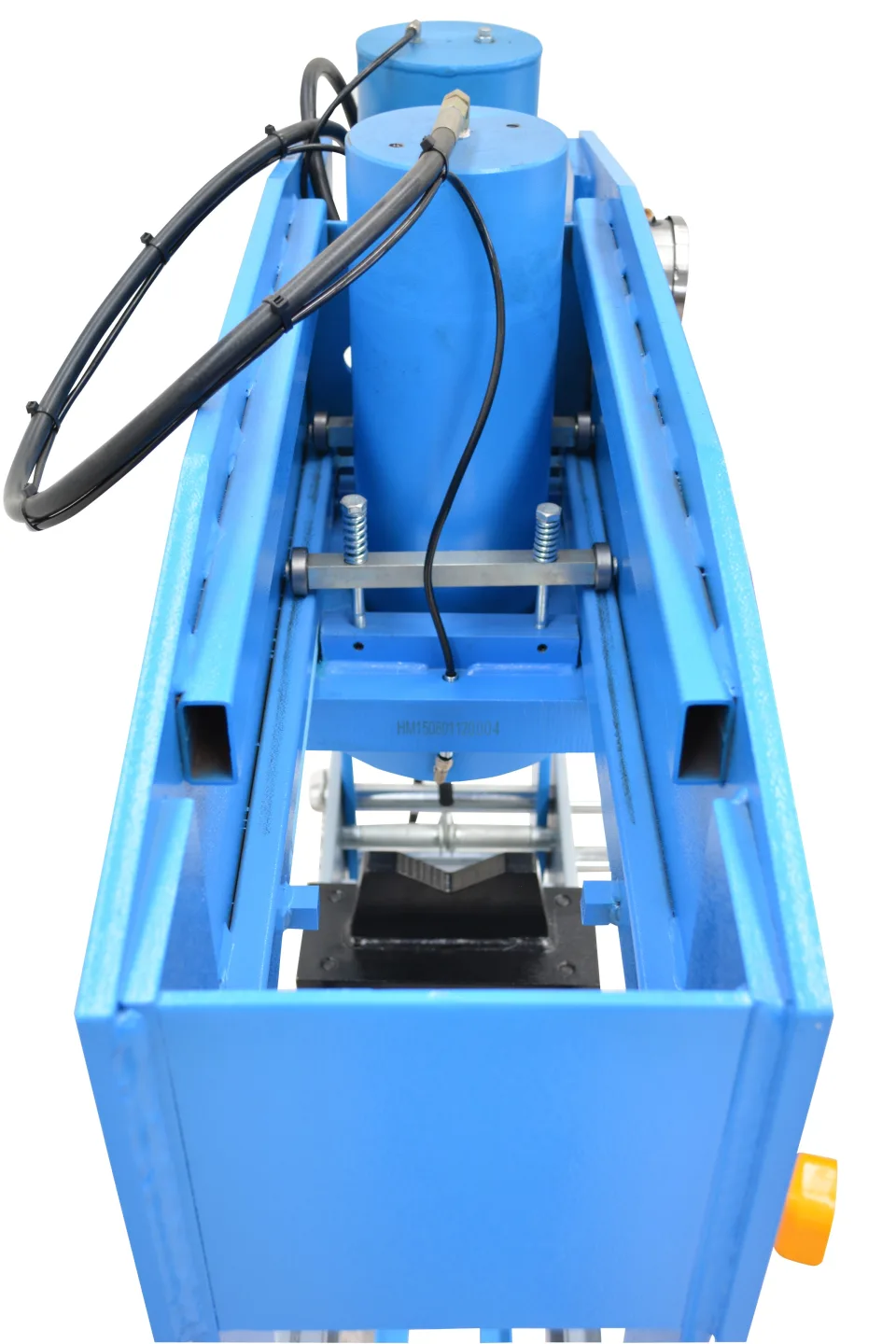

- Moveable sliding cylinder L/R
- Table lift winch

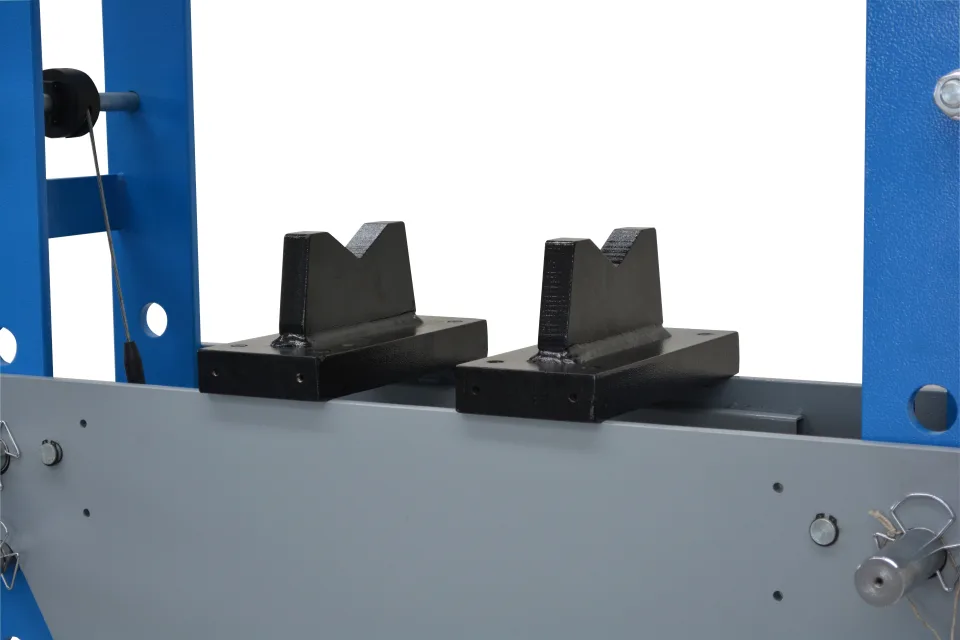

- Vee block set
- Pressure gauge
- ** 60 psi line pressure is all that is required to achieve the max. Pressure of 75 ton on this workshop press and the regulator is pre-set to allow this**
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
HP-75
Capacity
75 Ton
Ram stroke
250mm
Ram diameter
93mm
Working range
68 - 884mm
Table width
279mm
Distance between frames
800mm
Floor Dimensions
1450mm w x 1940mm h
Packaged dimensions
1100mm x 1200mm x 2110mm
Nett machine weight
451 kg
Gross weight
497 kg
