PFRM-0-3050
Workshop Machinery · Workshop presses

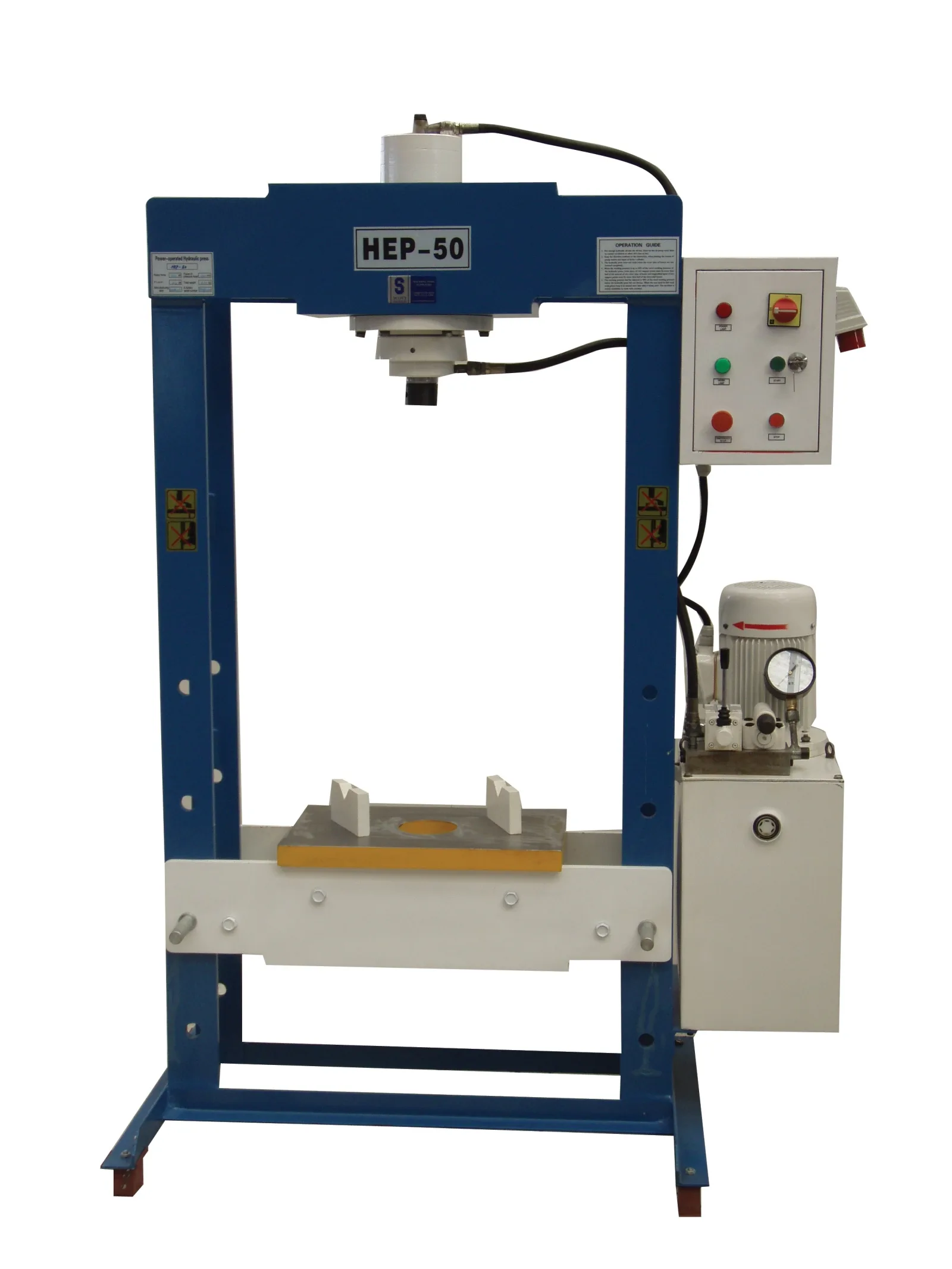

SCOTT HEP-50 Hydraulic Electric Powered Frame Press
HYD ELECTRIC FRAME PRESS 50T HEP50
$7,300.00
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Capacity
50 Ton
Stroke
250mm
Distance between frames
800mm
Depth of frame
265mm
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
HEP hydraulic electric powered frame presses are designed with a double acting cylinder controlled by a hand control.
Heavy duty frame
- 3 Phase pump & motor
- Sliding work table
- Flow control valve

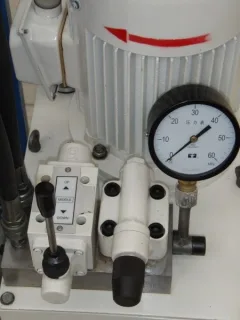

- Pressure gauge
- Hydraulic table lift
- Vee blocks

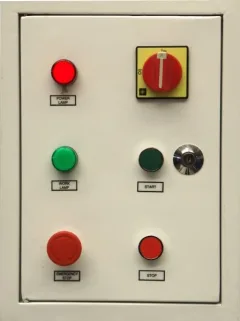

- Emergency stop
Optional:
- Hydraulic oil - Machines supplied dry
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Capacity
50 Ton
Stroke
250mm
Distance between frames
800mm
Depth of frame
265mm
Table size
550x350mm
Overall height
2100mm
Motor
2.2kw
Oil tank capacity
55L
Overall dimensions
2100x1130x800mm
Weight
700 kg
Talk to Scott Machinery
Is this the right machine for your work?
Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
