SCOTT HEP-50 Hydraulic Electric Powered Frame Press
50 Ton
$7,300.00
PFRM-0-3050 | Prices exclude GST
Product overview
About this machine.
HEP hydraulic electric powered frame presses are designed with a double acting cylinder controlled by a hand control.
Heavy duty frame

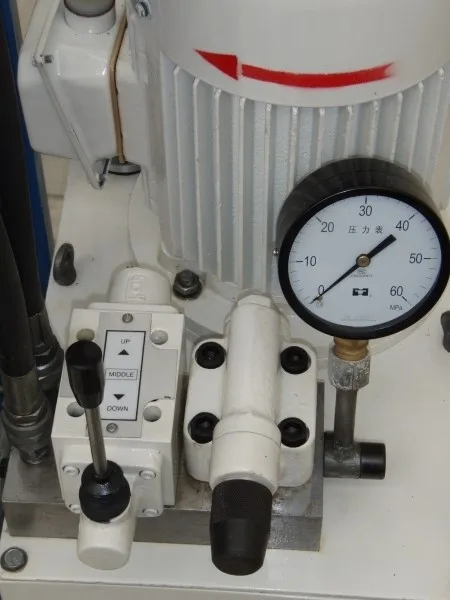

- 3 Phase pump & motor
- Sliding work table
- Flow control valve
- Pressure gauge
- Hydraulic table lift
- Vee blocks

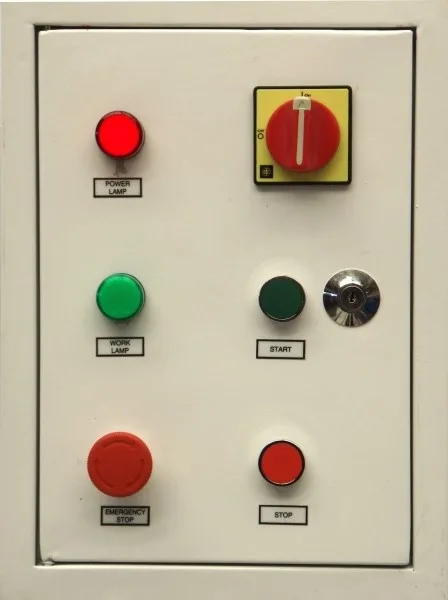

- Emergency stop
Optional:
- Hydraulic oil - Machines supplied dry
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Capacity
50 Ton
Stroke
250mm
Distance between frames
800mm
Depth of frame
265mm
Table size
550x350mm
Overall height
2100mm
Motor
2.2kw
Oil tank capacity
55L
Overall dimensions
2100x1130x800mm
Weight
700 kg
