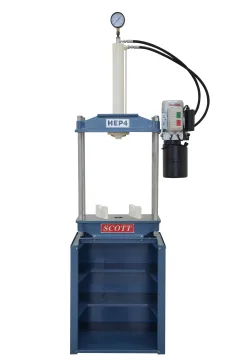

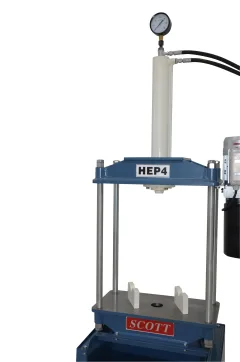

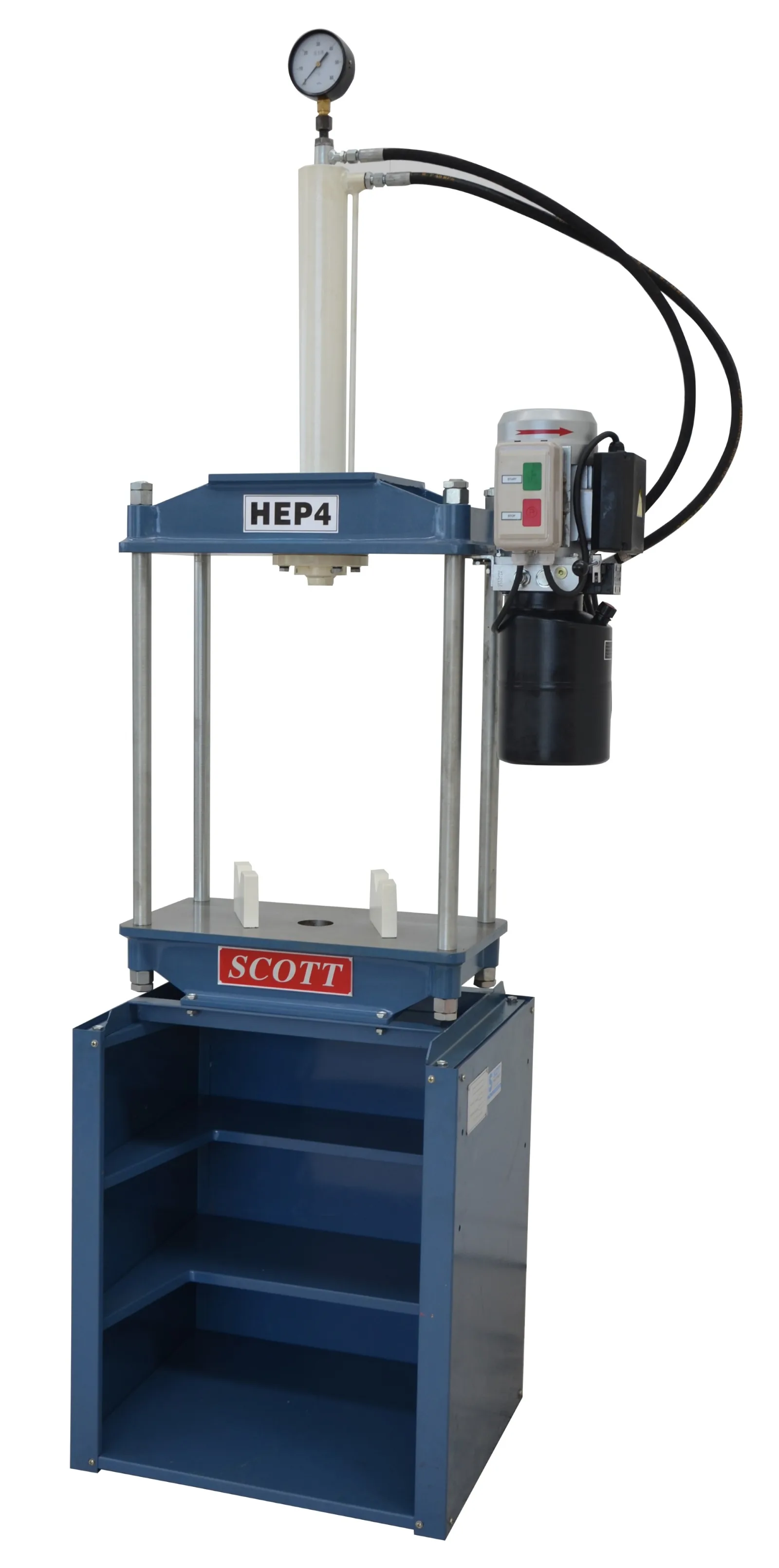

SCOTT HEP-4 Hydraulic Electric Broaching Press

HYD ELECTRIC BROACHING PRESS HEP4 1PH C/W STAND

$4,750.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Model HEP-4
Capacity 4 Ton
Ram stroke 500mm
Ram diameter 50mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

The HEP-4 hydraulic broaching press is designed for keyway broaching.

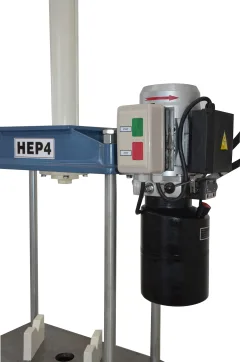

Features: Electric hydraulic pump Steel frame construction Pressure gauge fitted

Optional: Vee block set

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model HEP-4
Capacity 4 Ton
Ram stroke 500mm
Ram diameter 50mm
Distance ram to table max 560mm
Table size 600 x 317mm
Distance between posts 500mm width ways, 218mm front/back
Table hole size 60mm dia.
Motor 1hp/230v/1ph
Weight 222 kg
Shipping 1.03m3 250kg

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
