SCOTT HEP-4 Hydraulic Electric Broaching Press
4 Ton, 230v
$4,750.00
PFRM-0-1300 | Prices exclude GST
Product overview
About this machine.

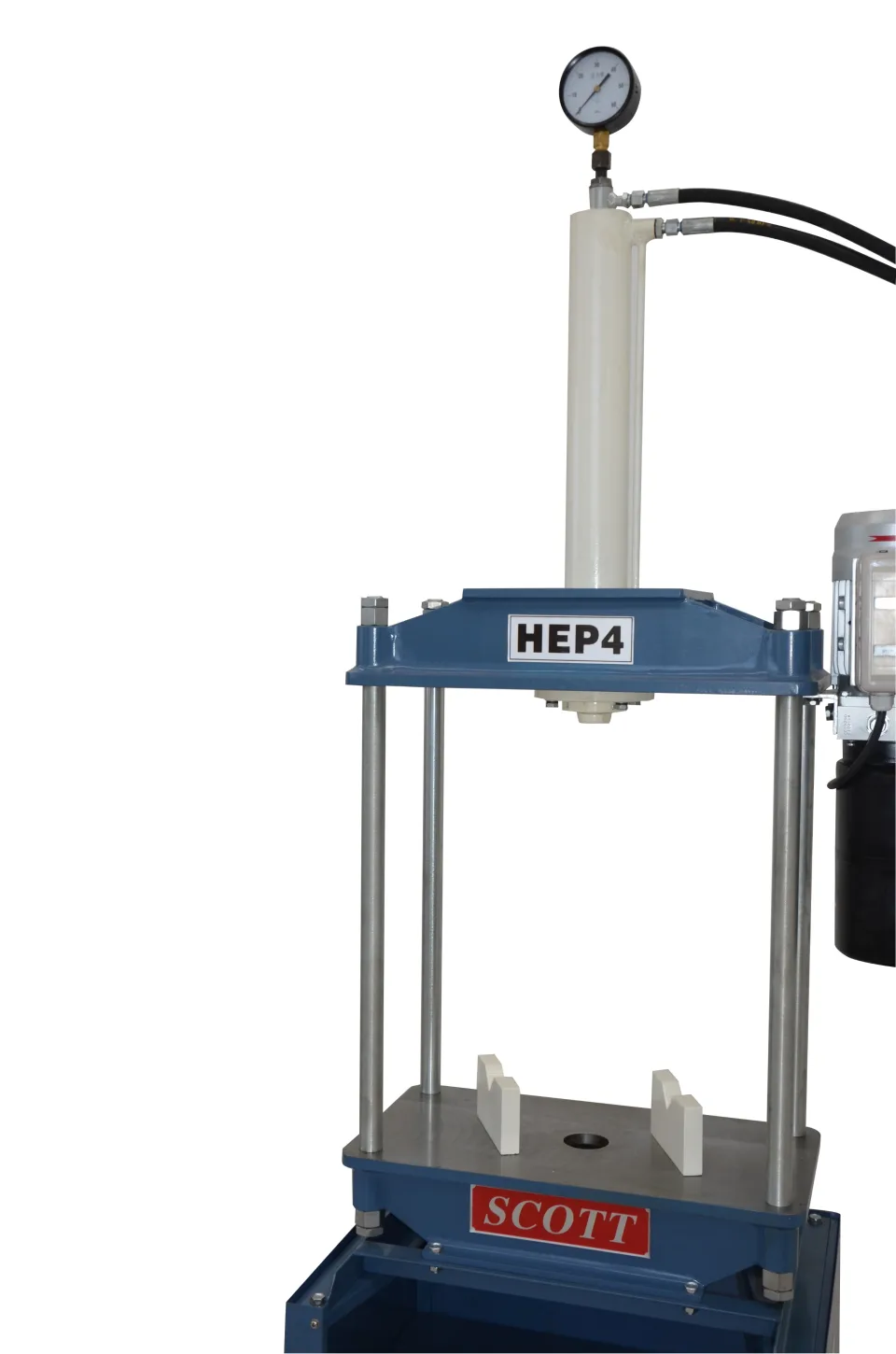

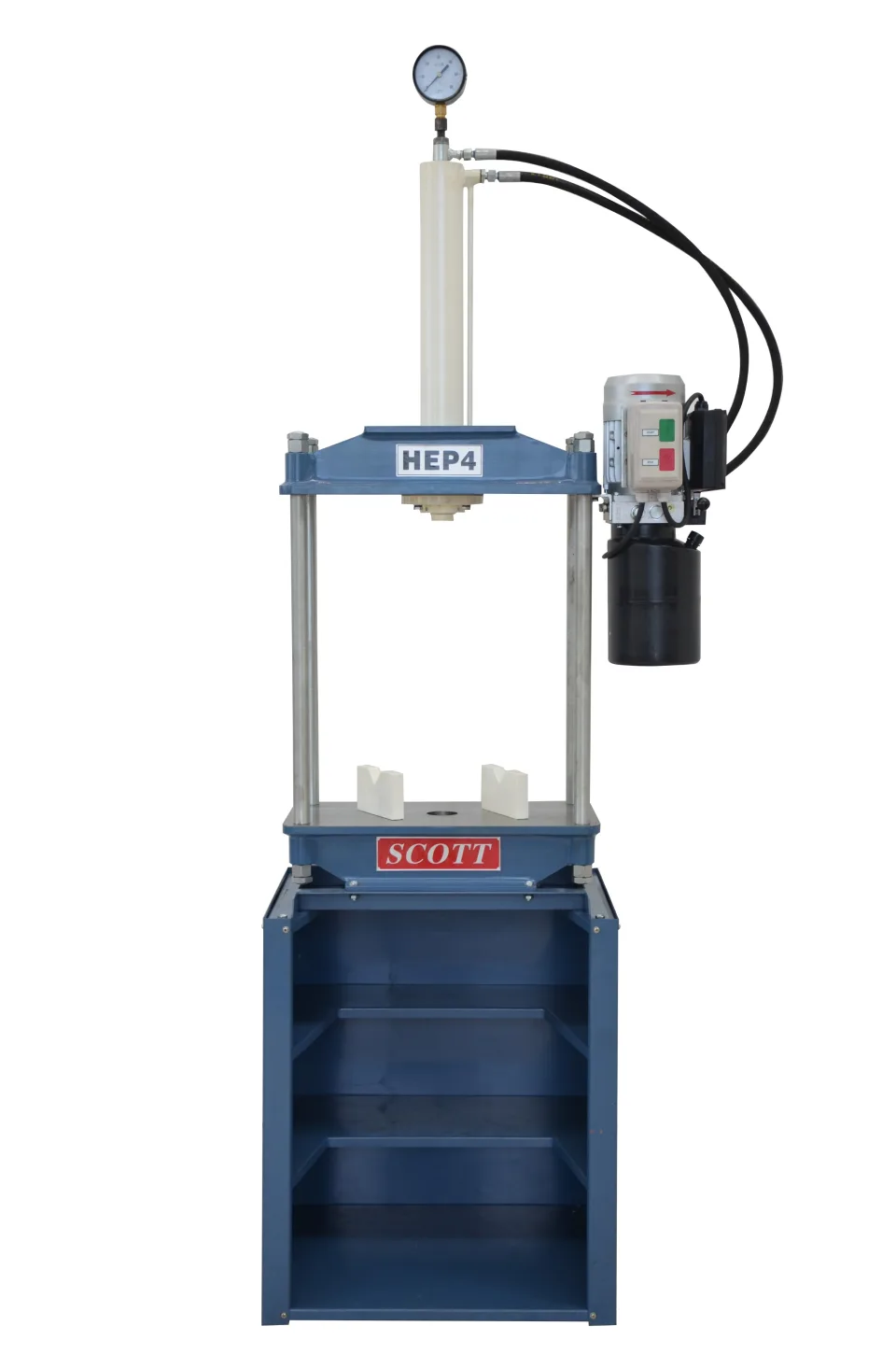

The HEP-4 hydraulic broaching press is designed for keyway broaching.

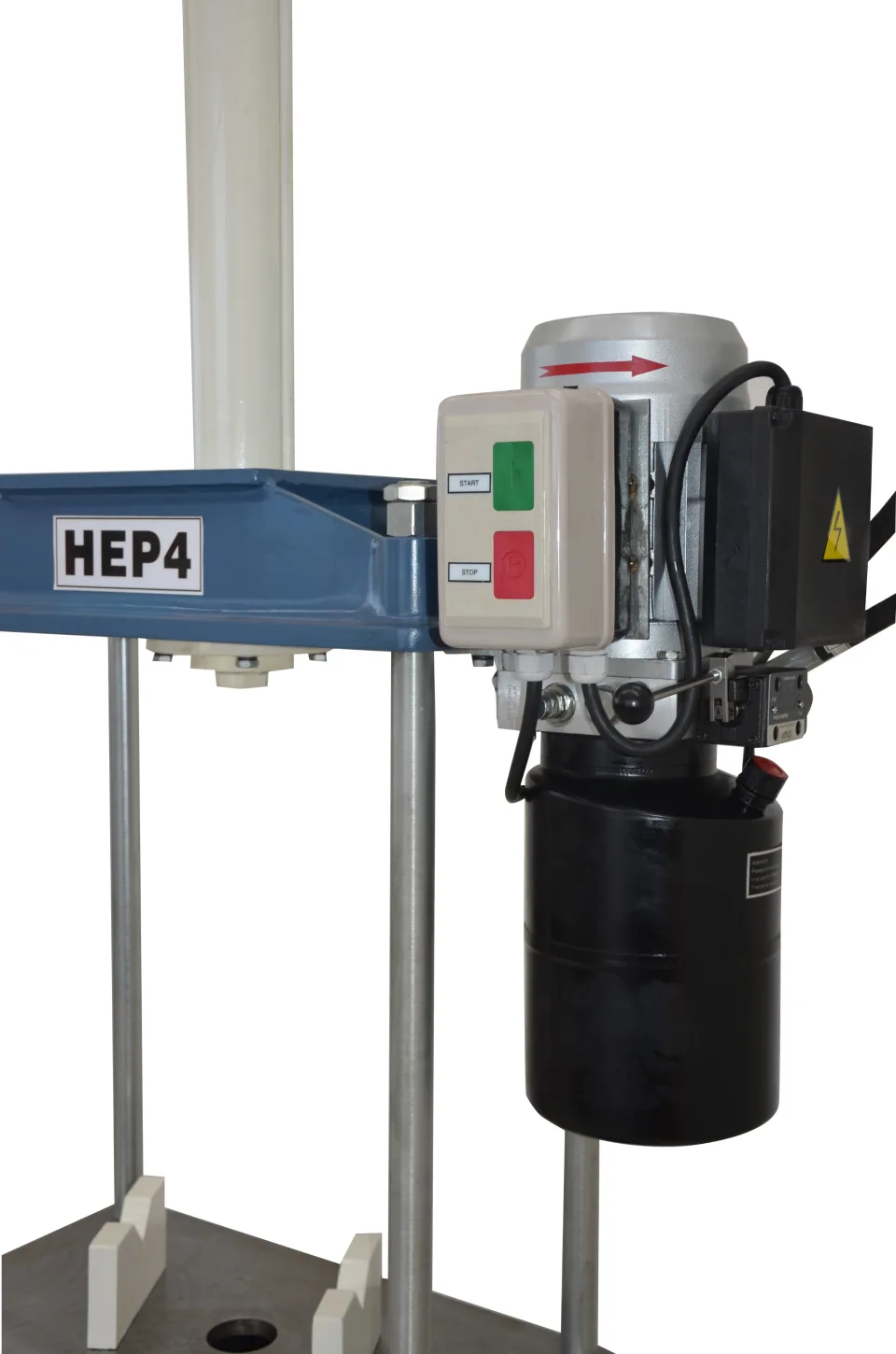

Features: Electric hydraulic pump Steel frame construction Pressure gauge fitted
Optional: Vee block set
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
HEP-4
Capacity
4 Ton
Ram stroke
500mm
Ram diameter
50mm
Distance ram to table max
560mm
Table size
600 x 317mm
Distance between posts
500mm width ways, 218mm front/back
Table hole size
60mm dia.
Motor
1hp/230v/1ph
Weight
222 kg
Shipping
1.03m3 250kg
