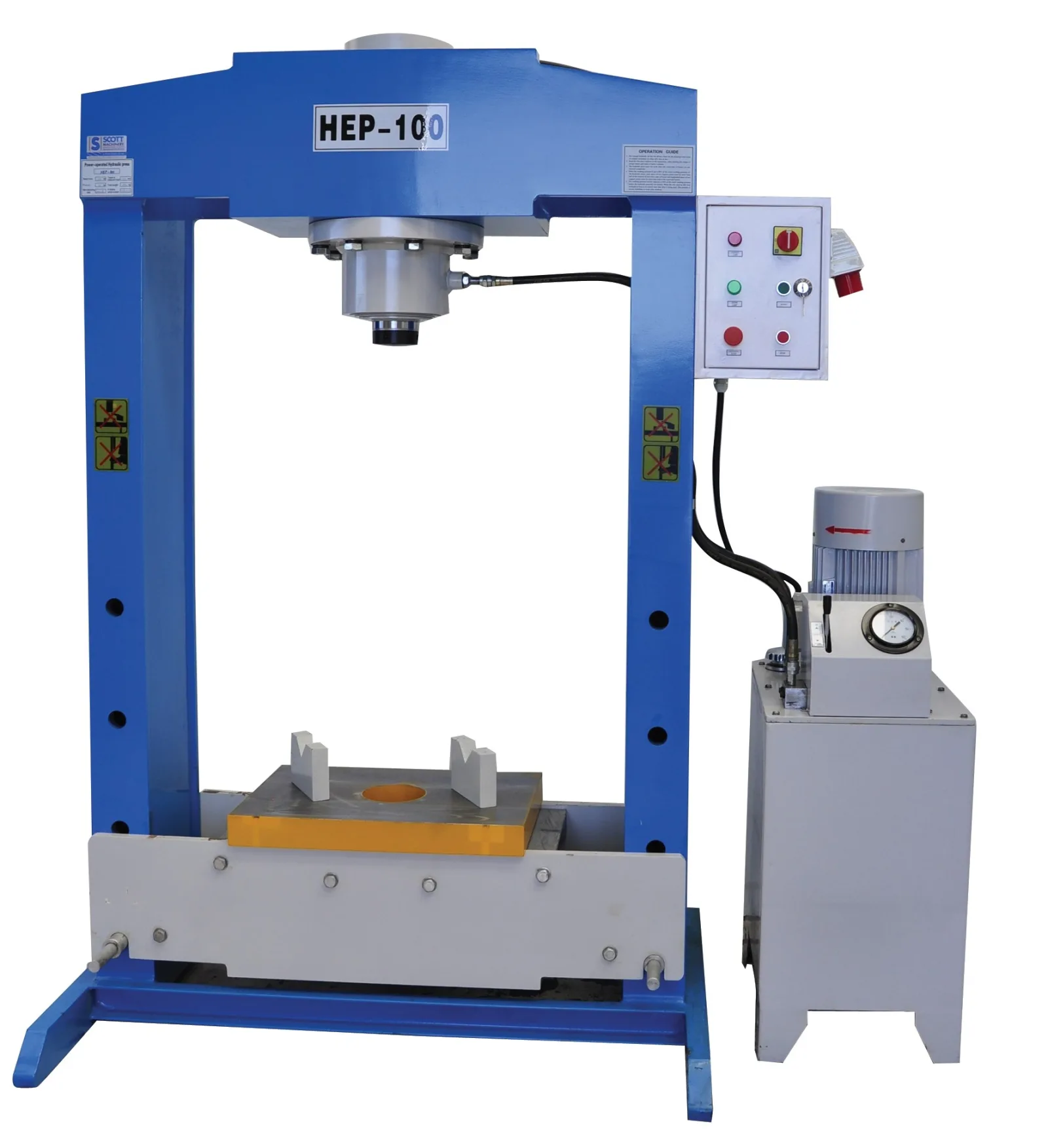

SCOTT HEP-100 Hydraulic Electric Powered Frame Press
1 / 4
SCOTT logo PFRM-0-3100

Workshop Machinery · Workshop presses

SCOTT HEP-100 Hydraulic Electric Powered Frame Press

HYD ELECTRIC FRAME PRESS 100T HEP100

$12,990.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Capacity 100 Ton
Stroke 350mm
Distance between frames 1060mm
Depth of frame 350mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

HEP hydraulic electric powered frame presses are designed with a double acting cylinder controlled by a hand control.

Heavy duty frame

  • 3 Phase pump & motor
  • Sliding work table

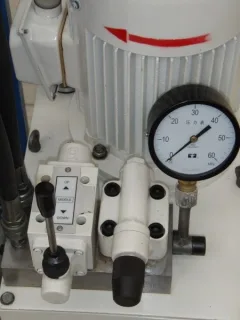

  • Flow control valve
  • Pressure gauge
  • Hydraulic table lift
  • Vee blocks

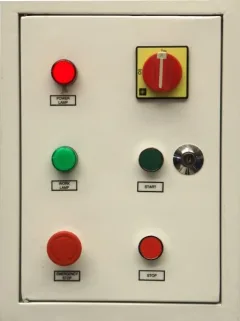

  • Emergency stop

Optional:

  • Hydraulic oil - Machines supplied dry

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Capacity 100 Ton
Stroke 350mm
Distance between frames 1060mm
Depth of frame 350mm
Table size 655 x 445mm
Overall height 2300mm
Motor 7.5 kW
Oil tank capacity 120L
Overall dimensions 2030 x 1200 x 2300mm
Weight 1380kg
Shipping 3.69m3, 1380kg

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.

0800 215 215 sales@scottmachinery.co.nz
Auckland · Christchurch · Nationwide support
Regarding SCOTT HEP-100
