SCOTT HEP-100 Hydraulic Electric Powered Frame Press
100 Ton
$12,990.00
PFRM-0-3100 | Prices exclude GST
Product overview
About this machine.
HEP hydraulic electric powered frame presses are designed with a double acting cylinder controlled by a hand control.
Heavy duty frame
- 3 Phase pump & motor
- Sliding work table

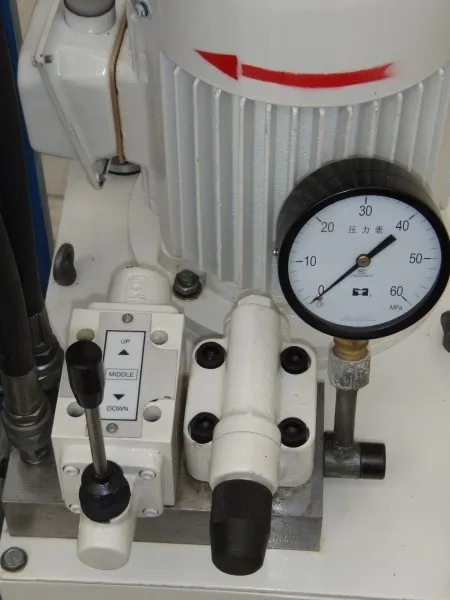

- Flow control valve
- Pressure gauge
- Hydraulic table lift
- Vee blocks

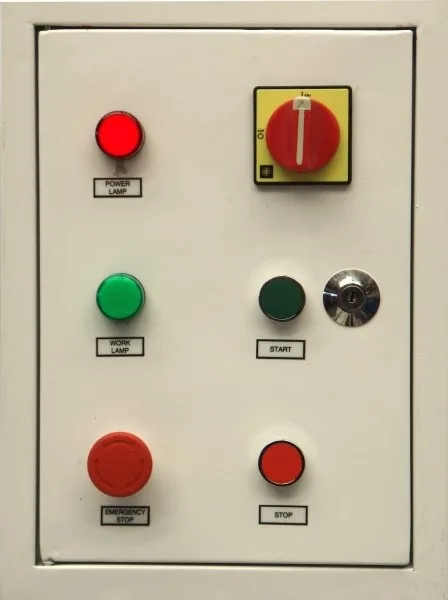

- Emergency stop
Optional:
- Hydraulic oil - Machines supplied dry
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Capacity
100 Ton
Stroke
350mm
Distance between frames
1060mm
Depth of frame
350mm
Table size
655 x 445mm
Overall height
2300mm
Motor
7.5 kW
Oil tank capacity
120L
Overall dimensions
2030 x 1200 x 2300mm
Weight
1380kg
Shipping
3.69m3, 1380kg
