LCNT-0-5426
Workshop Machinery · Conventional lathes

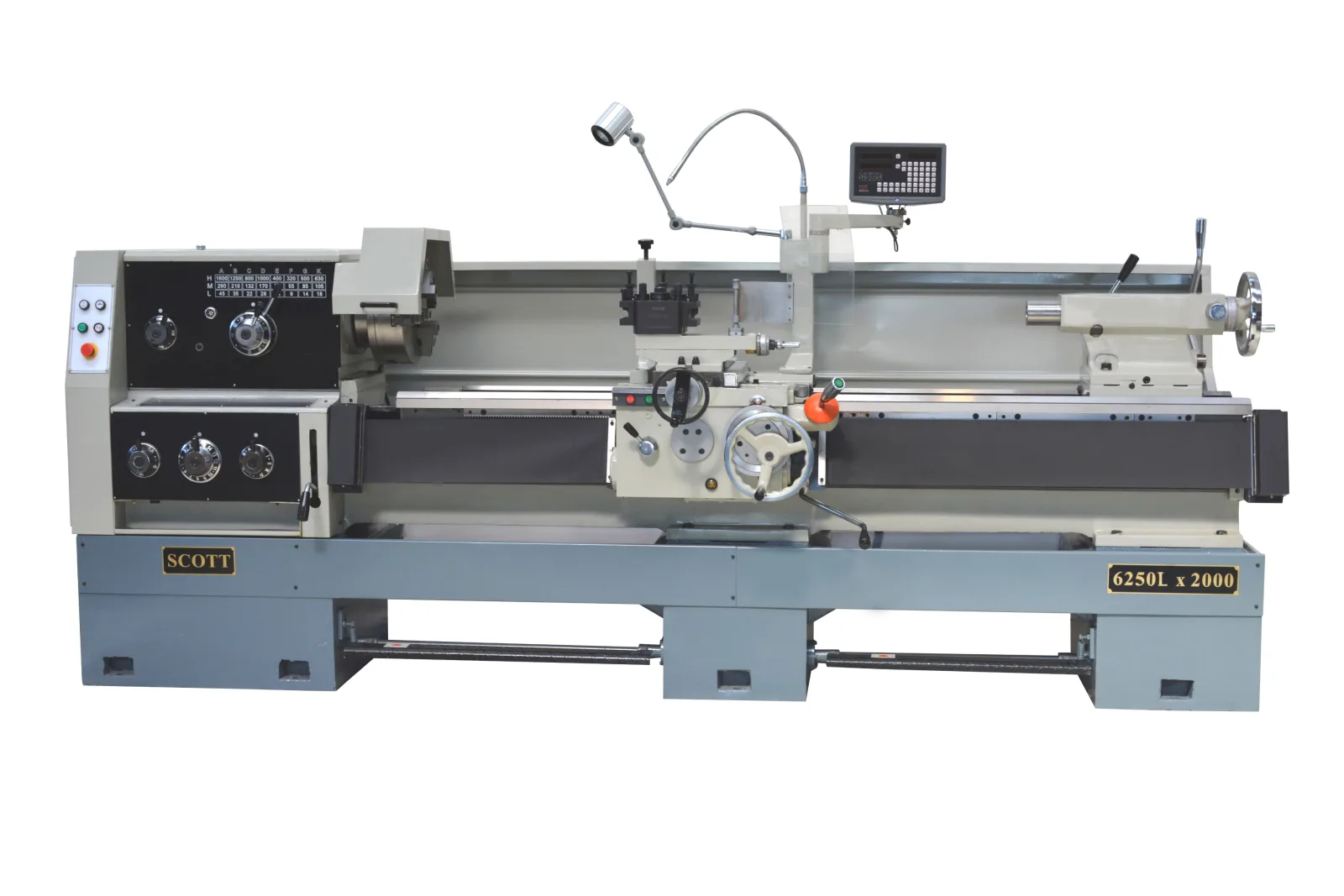

Scott 6250L x 2000 Centre Lathe
500mm swing x 2000mm centres x 105mm bore, Medium duty lathe.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
The Scott 6250L lathe has the excellent inherent design features listed below to provide the rigidity and accuracy necessary to perform heavy duty machining for all multi purpose engineering applications:
New improvements: Chuck cover with telemechanique switch Schnieder isolation lockout switch on cabinet Simple clear plastic toolpost guard Curtain type leadscrew & shaft protection Schnieder MCB motor circuit protection (replaces old overload/fuse system) IE2 High efficiency 415v electric main motor Electro mechanical braking system with bypass switch for thread cutting
Standard features:
- 24 Speed headstock with multi-disk clutches
- 105mm Spindle bore - D1-8 Camlock spindle nose
- Headstock spindle supported by three precision bearings
- Rapid traverse to carriage - 4 way joystick
- Bed ways are induction hardened and ground
- Apron feed overload device (adjustable)
- Gap bed
- Rapid traverse to carriage

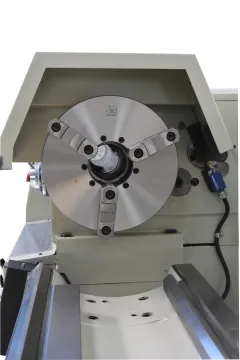

- 325mm 3 Jaw chuck
- 400mm 4 Jaw chuck
- 630mm Faceplate
- Steadies
- Emergency footbrake
- Coolant
- Halogen work lamp
- Rear splash guard
- Thread dial indicator
Scott Machinery features:
- Quick change toolpost

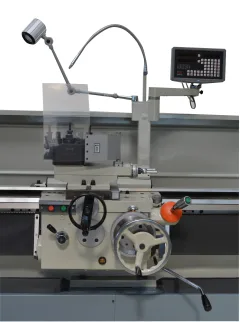

- 2 Axis SINO Digital readout system
- Right hand carriage wheel
- Siemens electrics

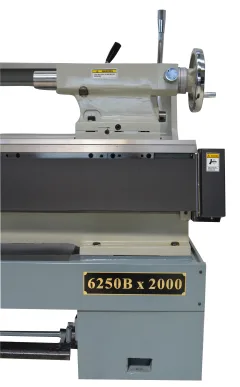

- Two speed tailstock
- 15HP Main motor
- Taper turning attachment
Other options:
- 82mm spindle bore option ("B" model)
- 750-5000mm centre options
