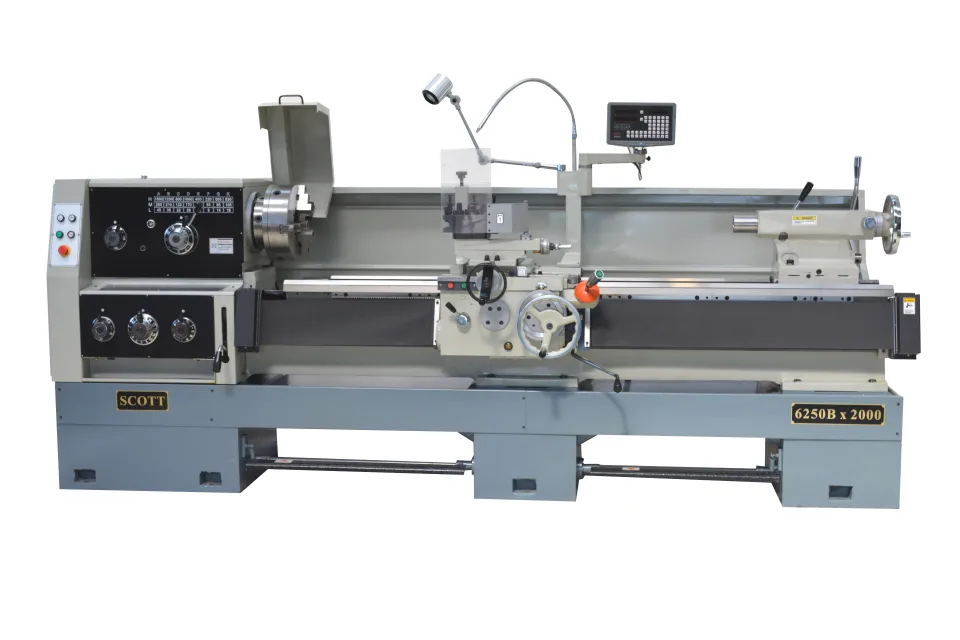

Scott 6250L x 2000 Centre Lathe
c/w Digital Readout & QCT
$37,500.00
LCNT-0-5426 | Prices exclude GST
Product overview
About this machine.
The Scott 6250L lathe has the excellent inherent design features listed below to provide the rigidity and accuracy necessary to perform heavy duty machining for all multi purpose engineering applications:

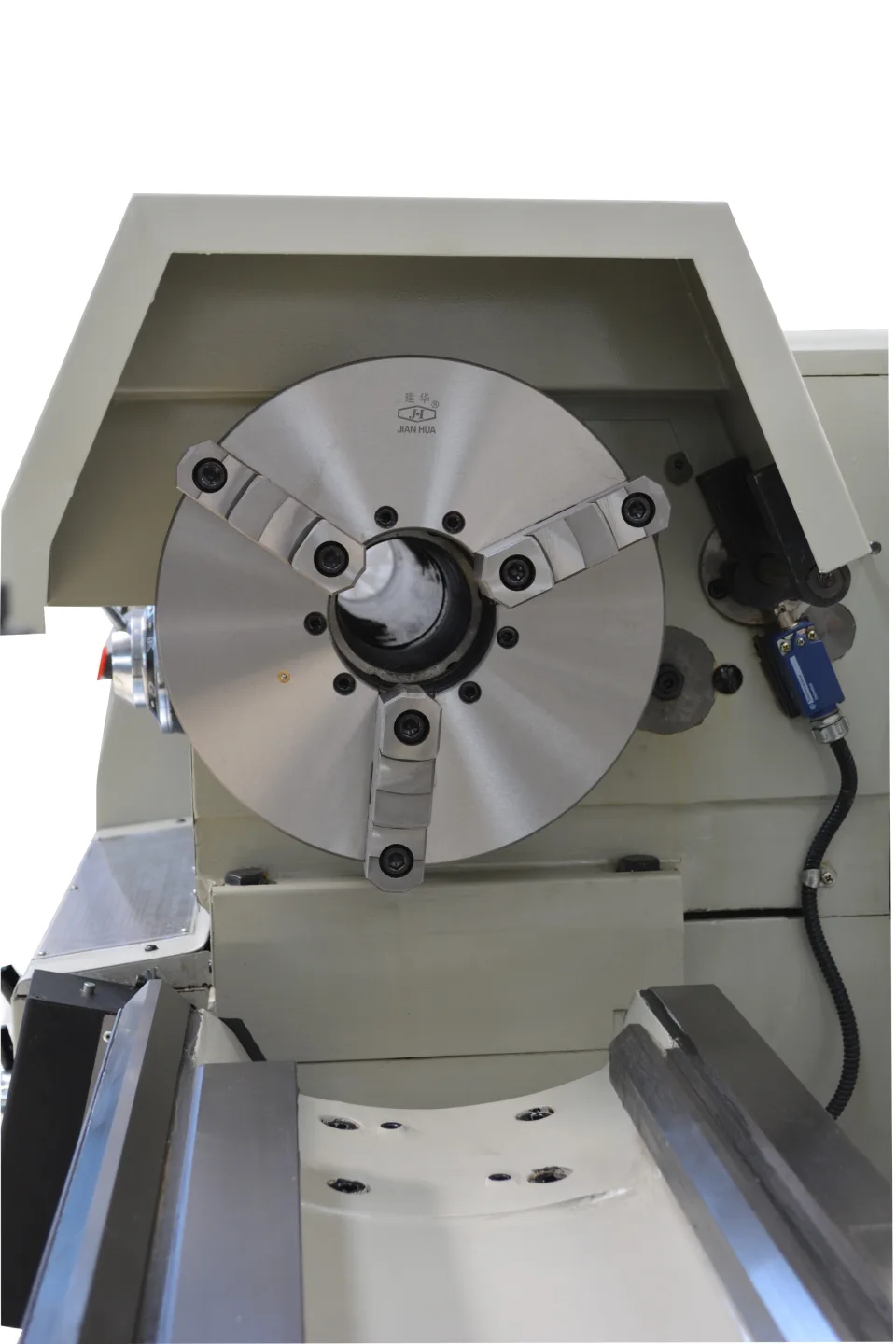

New improvements: Chuck cover with telemechanique switch Schnieder isolation lockout switch on cabinet Simple clear plastic toolpost guard Curtain type leadscrew & shaft protection Schnieder MCB motor circuit protection (replaces old overload/fuse system) IE2 High efficiency 415v electric main motor Electro mechanical braking system with bypass switch for thread cutting
Standard features:
- 24 Speed headstock with multi-disk clutches
- 105mm Spindle bore - D1-8 Camlock spindle nose
- Headstock spindle supported by three precision bearings
- Rapid traverse to carriage - 4 way joystick
- Bed ways are induction hardened and ground
- Apron feed overload device (adjustable)
- Gap bed
- Rapid traverse to carriage
- 325mm 3 Jaw chuck
- 400mm 4 Jaw chuck
- 630mm Faceplate
- Steadies
- Emergency footbrake
- Coolant
- Halogen work lamp
- Rear splash guard
- Thread dial indicator
Scott Machinery features:

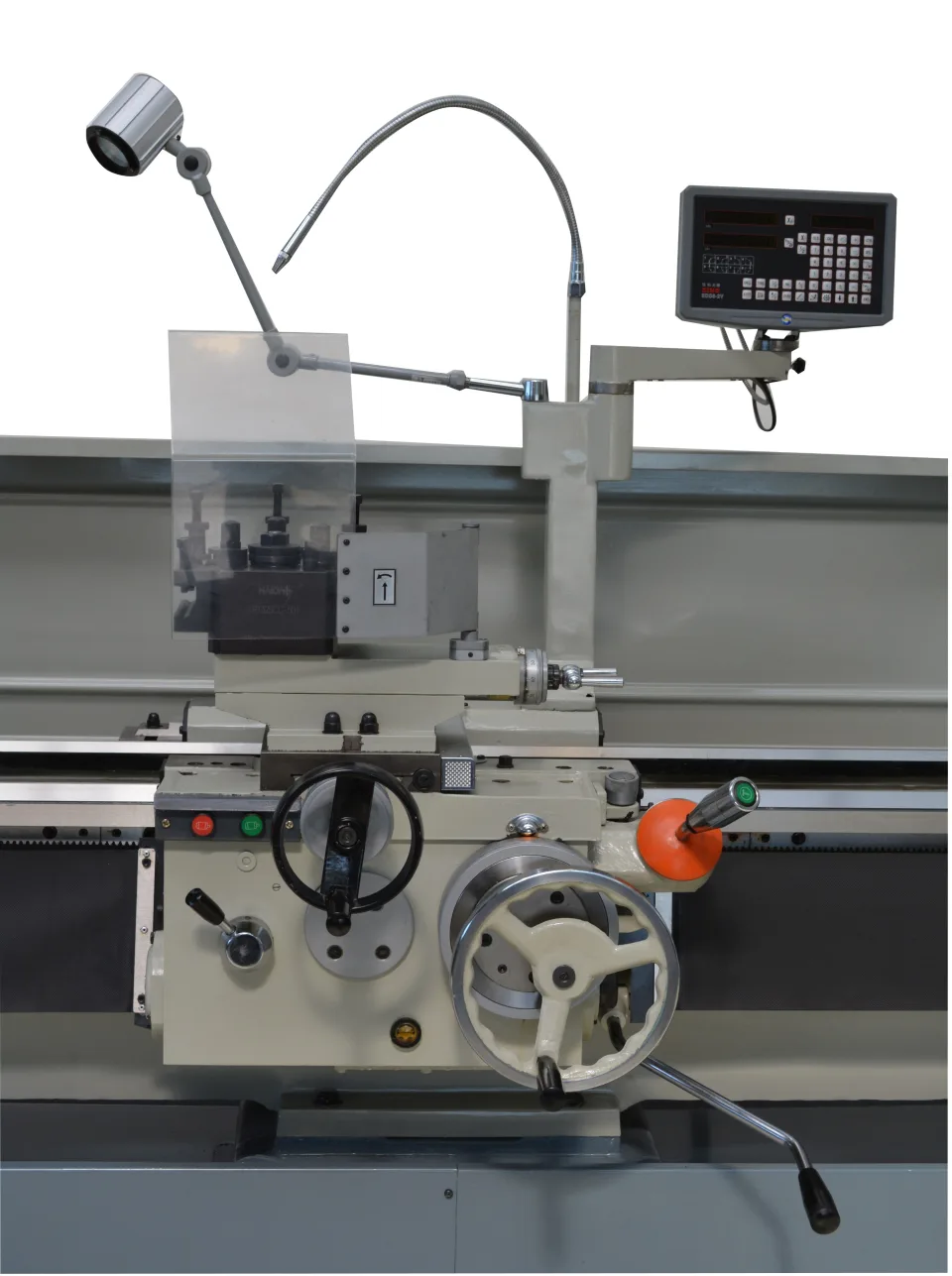

- Quick change toolpost
- 2 Axis SINO Digital readout system
- Right hand carriage wheel
- Siemens electrics

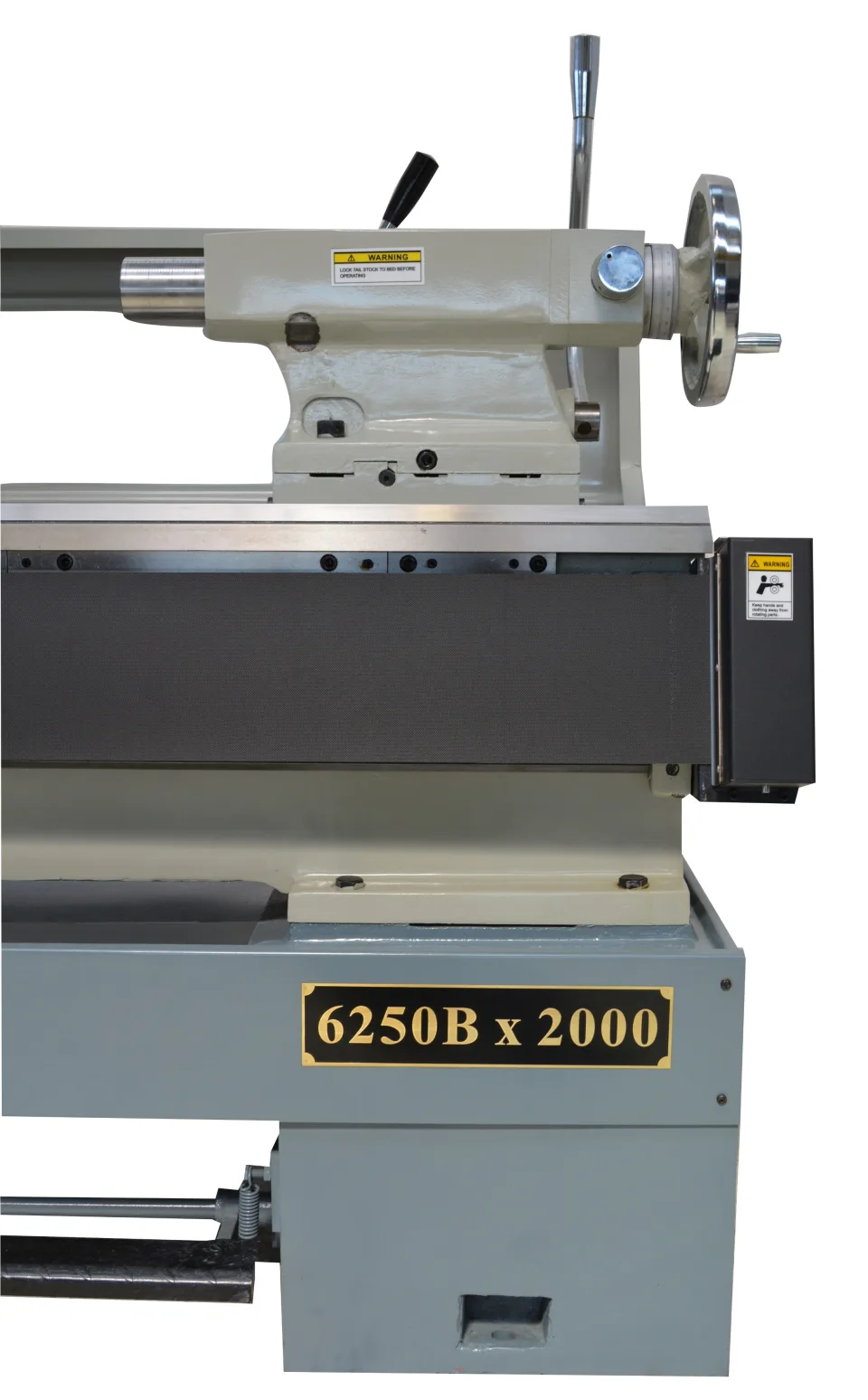

- Two speed tailstock
- 15HP Main motor
- Taper turning attachment
Other options:
- 82mm spindle bore option ("B" model)
- 750-5000mm centre options
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
6250Lx2000
Swing over bed
500mm
Swing in gap
710mm
Swing over cross slide
300mm
Distance between centers
2000mm
Bed width
390mm
Spindle bore
105mm (82mm optional)
Speed range
6 - 1,120 rpm (24 steps)
Thread range
1 - 224mm (48) / 0.125 - 28 TPI (49)
Tailstock taper
5MT
Spindle motor power
11kW (15hp)
Machine size
3750 x 1150 x 1180mm
Weight
2800kg
