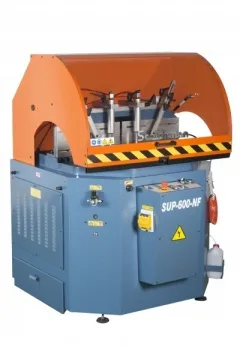

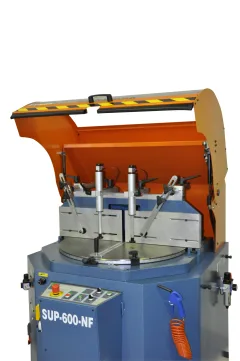

Scotchman SUP-600 Non-ferrous up cutting circular saw
Large capacity non-ferrous mitre cutting
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
The Scotchman Non-Ferrous Series of cold saws provides the cleanest cuts in solid or extruded aluminum, PVC and copper. These machines provide straight, burr-free cuts; easy mitring; and safe operation without sparks, heat, or burrs. The Non-Ferrous Series is available in all stages of automation--manual to fully automatic and are built to last.
Made in Spain
- Safety hood with switch to stop operation while hood is up
- Blade door with safety interlock switch
- Adjustable feed rate on saw head
- Two horizontal and two vertical clamps
- Mitre cutting from 65deg left to 65deg right
- Movable back fence for large capacity
Standard Accessories:
- 600mm blade
- Air hose / gun
- Base designed as a chip collector with chip extraction port
- Blade mist lubrication system
Optional Accessories:
- Mitre angle digital read out
- Digital stroke cut height control
- Programmable stop system
- Chip Vacuum
- Material supply tracks
- Material stop systems
Machine video
See Scotchman SUP-600 in operation.
Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.
Discuss your applicationPublished data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Capacity | Straight | 45deg |
|---|---|---|
| Round | 230mm | 230mm |
| Square | 230mm | 177mm |
| Rectangle | 381 x 152mm | 250 x 100mm |
| Cutting speed | 3000rpm | |
| Floor dimensions (W x D x H) | 1300 x 1220 x 1630mm | |
| Weight | 500kg | |
| Motor | 4kw (5.5hp) |
