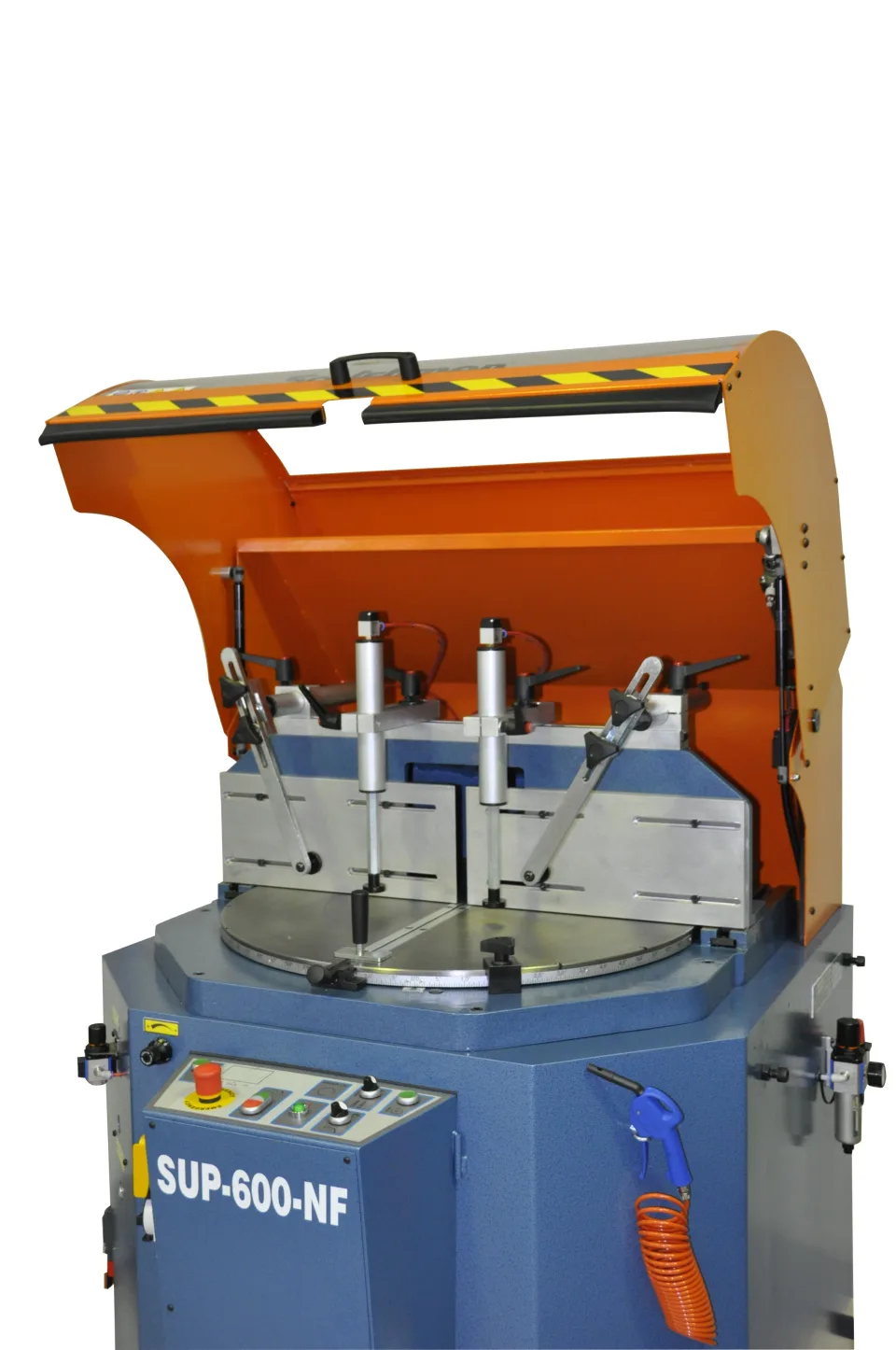

Scotchman SUP-600 Non-ferrous up cutting circular saw
POA
SAWC-0-8600 | Prices exclude GST
Product overview
About this machine.
The Scotchman Non-Ferrous Series of cold saws provides the cleanest cuts in solid or extruded aluminum, PVC and copper. These machines provide straight, burr-free cuts; easy mitring; and safe operation without sparks, heat, or burrs. The Non-Ferrous Series is available in all stages of automation--manual to fully automatic and are built to last.
Made in Spain
- Safety hood with switch to stop operation while hood is up
- Blade door with safety interlock switch
- Adjustable feed rate on saw head
- Two horizontal and two vertical clamps

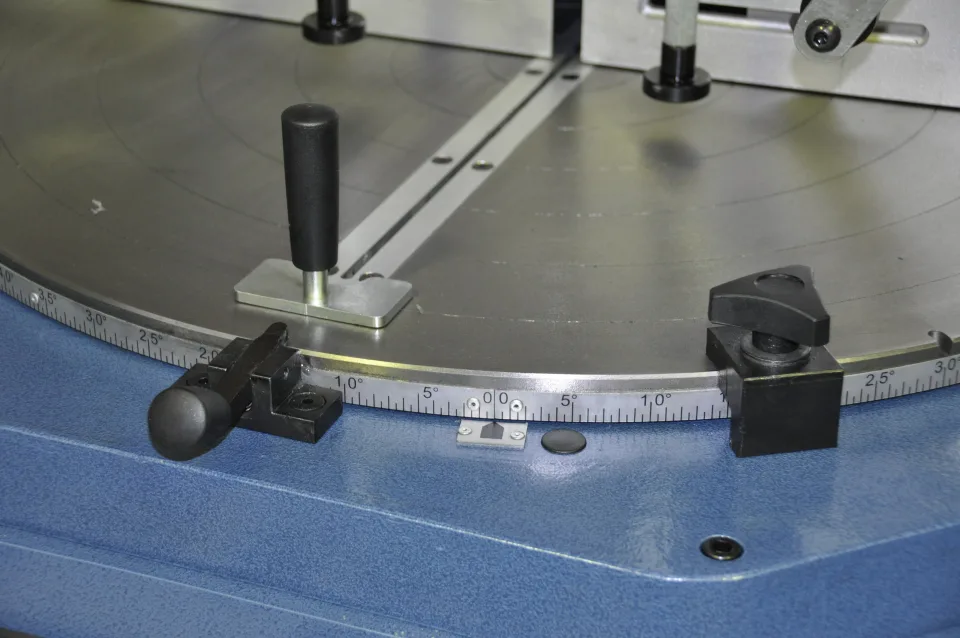

- Mitre cutting from 65deg left to 65deg right
- Movable back fence for large capacity
Standard Accessories:
- 600mm blade
- Air hose / gun
- Base designed as a chip collector with chip extraction port
- Blade mist lubrication system
Optional Accessories:
- Mitre angle digital read out
- Digital stroke cut height control
- Programmable stop system
- Chip Vacuum
- Material supply tracks
- Material stop systems
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Capacity | Straight | 45deg |
|---|---|---|
| Round | 230mm | 230mm |
| Square | 230mm | 177mm |
| Rectangle | 381 x 152mm | 250 x 100mm |
| Cutting speed | 3000rpm | |
| Floor dimensions (W x D x H) | 1300 x 1220 x 1630mm | |
| Weight | 500kg | |
| Motor | 4kw (5.5hp) |
