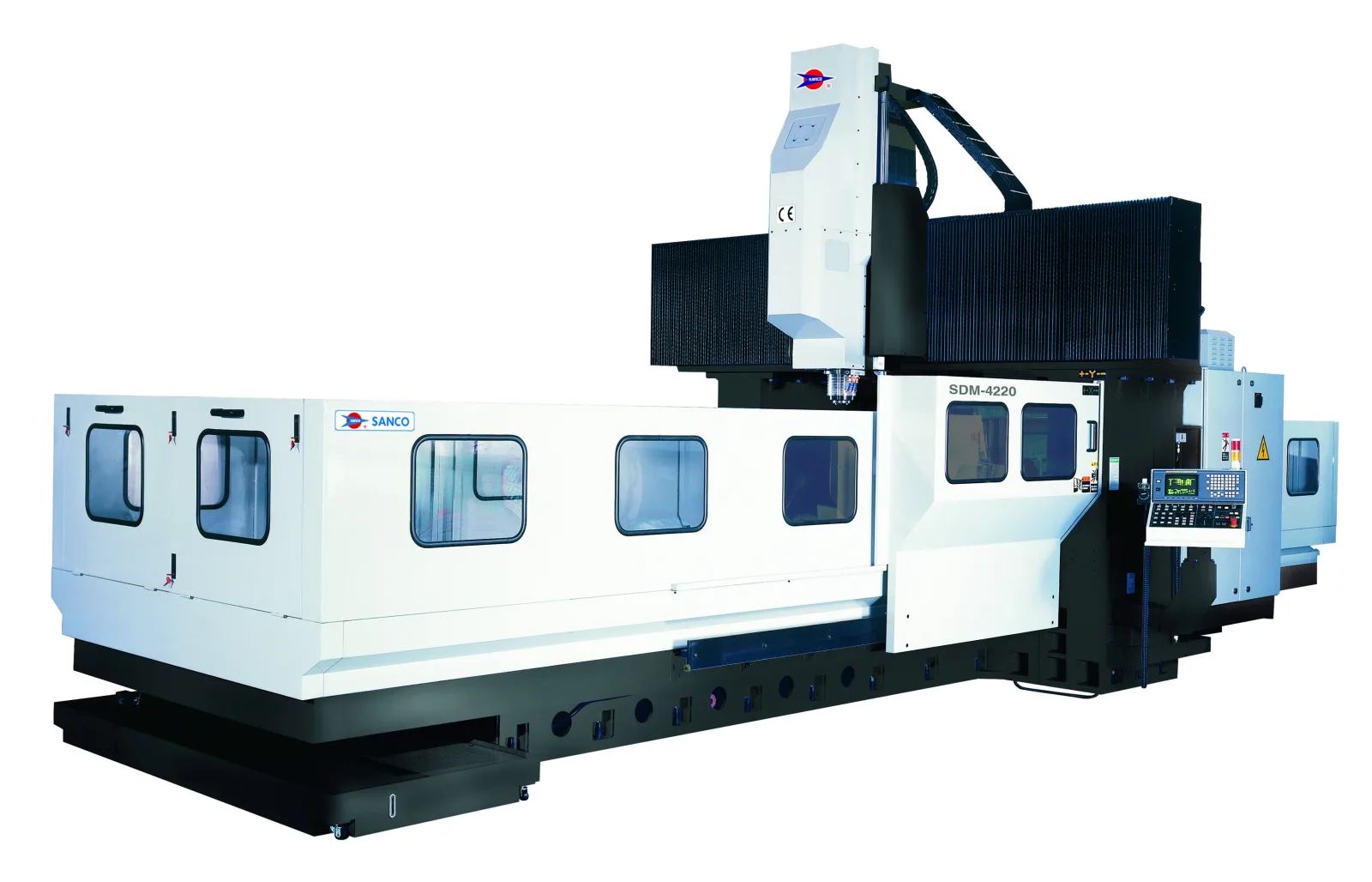

Sanco SDM Series CNC Double Column Machining Centres
Sanco SDM-Series CNC Double Column Machining Centr
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
Sanco manufacture a full range of ruggedly constructed double column CNC machining centres designed for large mould and mould base machining. They are constructed with extra heavy duty linear guideways on X & Y axis and are available on Z axis as an option. The Z axis is hydraulically counter balanced for exceptional stability and smoothness.

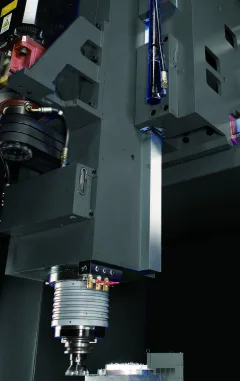

Spindle & Head Options
Spindle speed options:
- 4000, 6000, 8000, 10,000, 12,000, 15,000, 20,000rpm
dependant on spindle drive & taper configuration
Spindle drive options:
- Direct drive, Direct ZF gearbox, belt driven ZF gearbox (std), inbuilt spindle motor
Spindle taper options:
- BT50 (std) BT40 or HSK63A (opt)
Optional
- Automatic tool changer options (ATC)

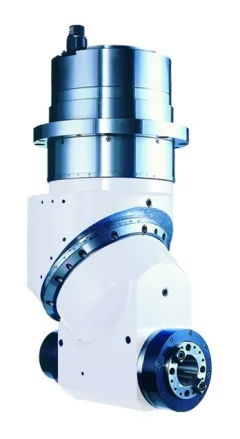

- Milling heads (several styles available)
- Long nose spindle
- 4th Axis rotary table
- Thermal distortion compensation module
- Linear scale feedback
- Coolant through spindle (CTS)
- Work and tool measuring
Control options:
- Fanuc / Siemens / Heidenhain
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Specification | Table size | X Axis travel | Y Axis travel | Z Axis travel | Between Columns | Table loading | Net weight |
|---|---|---|---|---|---|---|---|
| Model | |||||||
| SDM-1714(L) | 1600 x 1050mm | 1700mm | 1200mm | 750mm (900, 1200) | 1400mm | 3500kg | 19,000kg |
| SDM-2214(L) | 2100 x 1000mm | 2200mm | 1200mm | 750mm (900, 1200) | 1400mm | 5000kg | 20,000kg |
| SDM-2814(L) | 2700 x 1000mm | 2800mm | 1200mm | 750mm (900, 1200) | 1400mm | 6000kg | 22,500kg |
| SDM-3214(L) | 3100 x 1000mm | 3200mm | 1200mm | 750mm (900, 1200) | 1400mm | 7000kg | 23,500kg |
| SDM-2216(L) | 2000 x 1400mm | 2160mm | 1400mm | 750mm (900, 1200) | 1600mm | 6000kg | 22,000kg |
| SDM-2220(L) | 2000 x 1700mm | 2160mm | 1800mm (2400) | 750mm (900, 1200) | 2000mm | 7000kg | 26,500kg |
| SDM-3216(L) | 3000 x 1400mm | 3200mm | 1400mm | 750mm (900, 1200) | 1600mm | 9000kg | 25,500kg |
| SDM-3220(L) | 3000 x 1700mm | 3200mm | 1800mm (2400) | 750mm (900, 1200) | 2000mm | 10,000kg | 29,000kg |
| SDM-3225(L) | 3000 x 2000mm | 3200mm | 2400mm (3000) | 750mm (900, 1200) | 2500mm | 11,000kg | 32,000kg |
| SDM-3225B(L) | 3000 x 2200mm | 3200mm | 2400mm (3000) | 750mm (900, 1200) | 2500mm | 12,000kg | 38,000kg |
| SDM-3228(L) | 3000 x 2500mm | 3200mm | 3300mm | 750mm (900, 1200) | 2800mm | 12,000kg | 41,000kg |
| SDM-4216(L) | 4000 x 1400mm | 4200mm | 1400mm | 750mm (900, 1200) | 1600mm | 10,000kg | 31,000kg |
