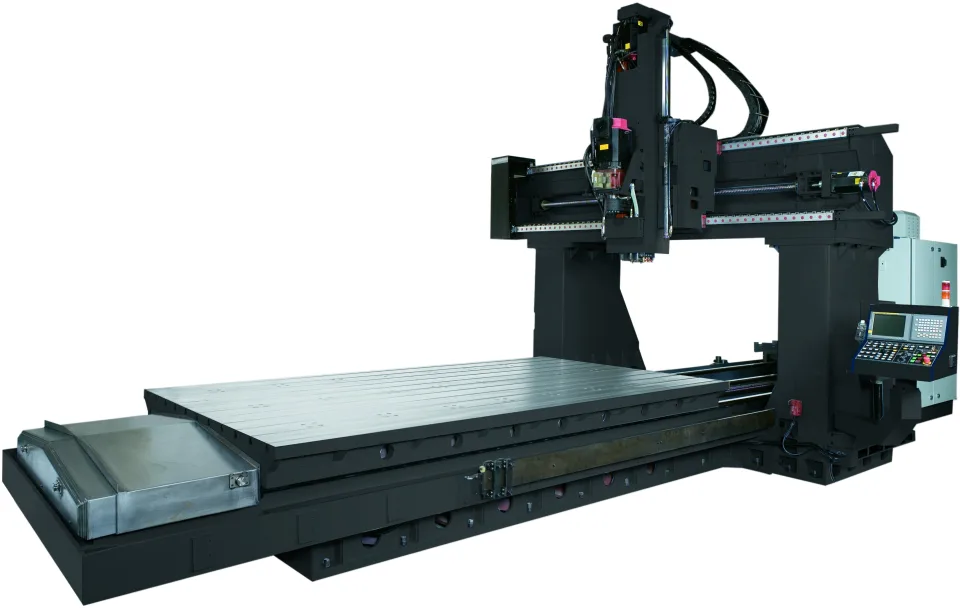

Sanco SDM Series CNC Double Column Machining Centres
POA
WEB-SANCO DOUBLE COLUMN | Prices exclude GST
Product overview
About this machine.

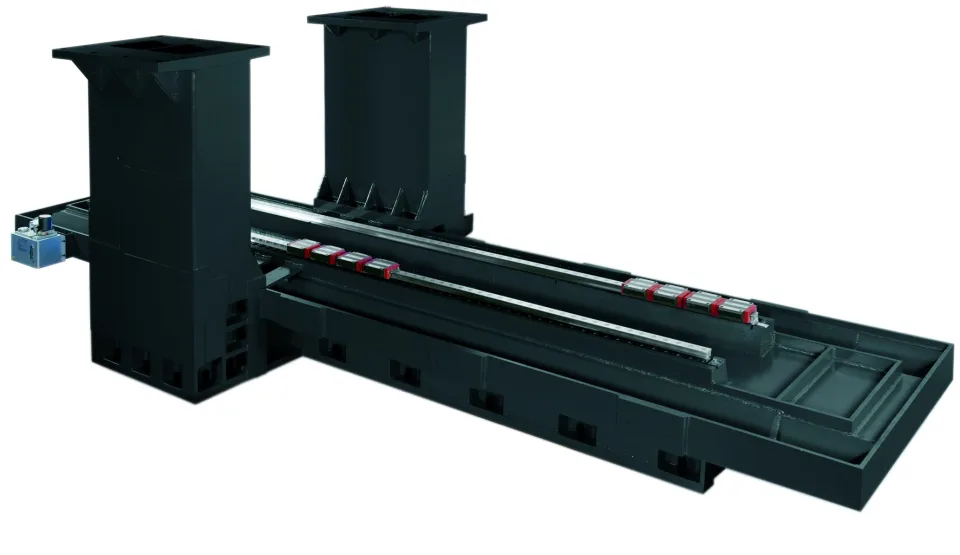

Sanco manufacture a full range of ruggedly constructed double column CNC machining centres designed for large mould and mould base machining. They are constructed with extra heavy duty linear guideways on X & Y axis and are available on Z axis as an option. The Z axis is hydraulically counter balanced for exceptional stability and smoothness.

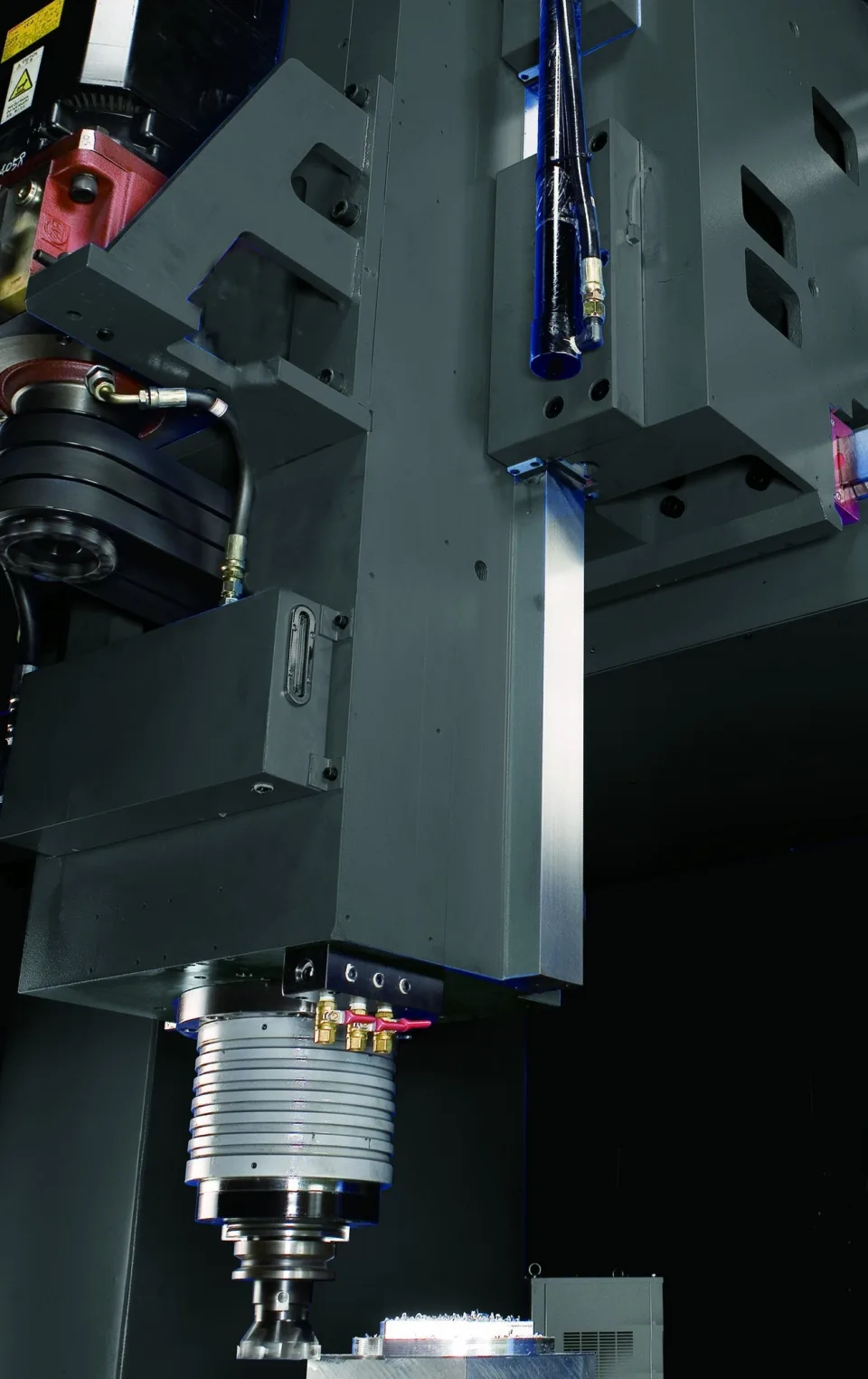

Spindle & Head Options
Spindle speed options:
- 4000, 6000, 8000, 10,000, 12,000, 15,000, 20,000rpm
dependant on spindle drive & taper configuration
Spindle drive options:
- Direct drive, Direct ZF gearbox, belt driven ZF gearbox (std), inbuilt spindle motor
Spindle taper options:
- BT50 (std) BT40 or HSK63A (opt)
Optional
- Automatic tool changer options (ATC)

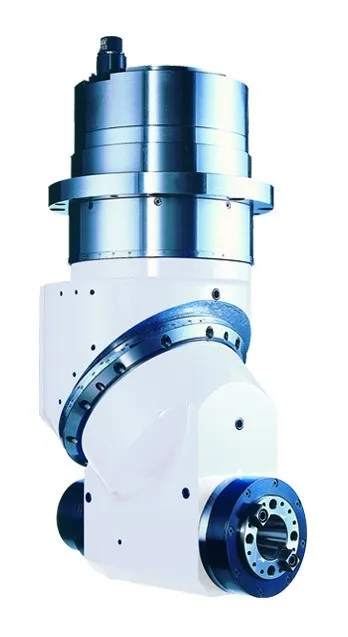

- Milling heads (several styles available)
- Long nose spindle
- 4th Axis rotary table
- Thermal distortion compensation module
- Linear scale feedback
- Coolant through spindle (CTS)
- Work and tool measuring
Control options:
- Fanuc / Siemens / Heidenhain
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Specification | Table size | X Axis travel | Y Axis travel | Z Axis travel | Between Columns | Table loading | Net weight |
|---|---|---|---|---|---|---|---|
| Model | |||||||
| SDM-1714(L) | 1600 x 1050mm | 1700mm | 1200mm | 750mm (900, 1200) | 1400mm | 3500kg | 19,000kg |
| SDM-2214(L) | 2100 x 1000mm | 2200mm | 1200mm | 750mm (900, 1200) | 1400mm | 5000kg | 20,000kg |
| SDM-2814(L) | 2700 x 1000mm | 2800mm | 1200mm | 750mm (900, 1200) | 1400mm | 6000kg | 22,500kg |
| SDM-3214(L) | 3100 x 1000mm | 3200mm | 1200mm | 750mm (900, 1200) | 1400mm | 7000kg | 23,500kg |
| SDM-2216(L) | 2000 x 1400mm | 2160mm | 1400mm | 750mm (900, 1200) | 1600mm | 6000kg | 22,000kg |
| SDM-2220(L) | 2000 x 1700mm | 2160mm | 1800mm (2400) | 750mm (900, 1200) | 2000mm | 7000kg | 26,500kg |
| SDM-3216(L) | 3000 x 1400mm | 3200mm | 1400mm | 750mm (900, 1200) | 1600mm | 9000kg | 25,500kg |
| SDM-3220(L) | 3000 x 1700mm | 3200mm | 1800mm (2400) | 750mm (900, 1200) | 2000mm | 10,000kg | 29,000kg |
| SDM-3225(L) | 3000 x 2000mm | 3200mm | 2400mm (3000) | 750mm (900, 1200) | 2500mm | 11,000kg | 32,000kg |
| SDM-3225B(L) | 3000 x 2200mm | 3200mm | 2400mm (3000) | 750mm (900, 1200) | 2500mm | 12,000kg | 38,000kg |
| SDM-3228(L) | 3000 x 2500mm | 3200mm | 3300mm | 750mm (900, 1200) | 2800mm | 12,000kg | 41,000kg |
| SDM-4216(L) | 4000 x 1400mm | 4200mm | 1400mm | 750mm (900, 1200) | 1600mm | 10,000kg | 31,000kg |
