OPTIMUM TGM-3 Tube & Pipe Notcher Linisher

100 x 2000mm belt 3ph

$3,990.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Belt size 100mm x 2000mm
Workable top plate area 100mm x 400mm
Base size W x D 400mm x 650mm
Belt speeds 1020m/min & 2040m/min
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.

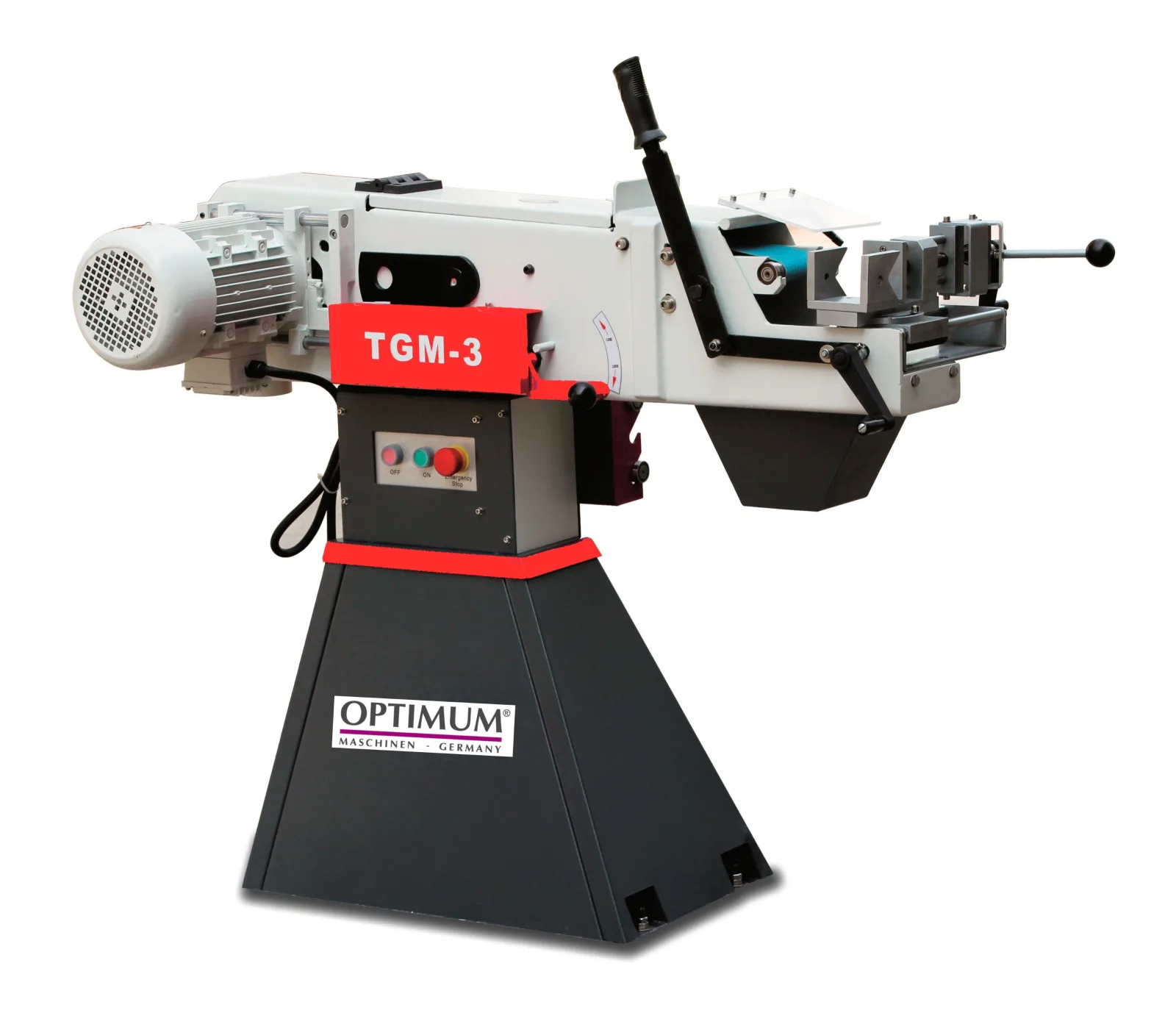

The Optimum TGM-3 is a powerful, pedestal mounted linishing notcher designed for accurate beveling of tube and pipe from 20mm to 76mm in diameter. Its 4HP motor drives a 100 x 2,000mm abrasive belt, allowing quick and clean notches at adjustable angles from 30 degrees to 90 degrees. The motor is 2 speed and will run in either direction depending on which end of the machine is being utilized. The TGM-3 features a compound tilting worktable, secure V-jaw vice, and comes complete with seven guide rollers, a storage cabinet, and integrated lifting hook. Weighing 145kg, the TGM-3 is a rugged and reliable solution for high-precision weld prep and fabrication work.

Features:

  • Premium ball bearing shafts for smooth and quiet operation
  • Convenient High/low switch for 2 belt speeds
  • Grinds any angle from 30-90 degrees
  • Grinds any diameter from 20 - 76mm
  • Grinds all major materials
  • Suitable for tubes and profiles
  • Powerful 4HP motor
  • Storage cabinet for rollers
  • Machine lifting hook
  • Vee jaw vice design to clamp sizes
  • Compound table assembly
  • Stand with roller storage box
  • Top flat grinding surface for deburring

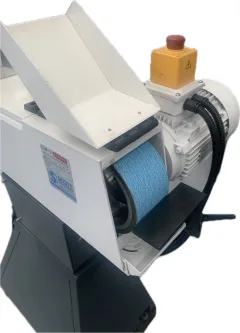

  • Motor can be reversed and there is a guard that can be lifted along with a tool rest to make use of the drive wheel as a standard linisher.

Included:

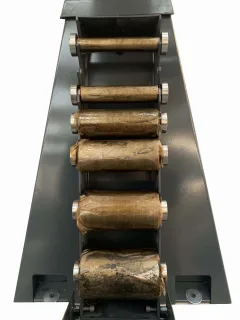

  • Comes with 7 individual rollers to suit
  • 20, 28, 32, 42, 48, 60 and 76mm diameters.

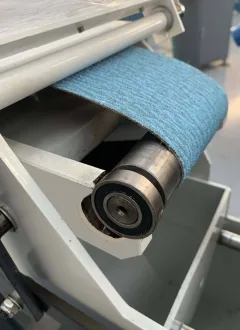

  • Fitted with 100mm x 2000mm ZIRCONIA belt

Optional:

  • Additional 100mm x 2000mm ZIRCONIA belts available in various grits

Safety Features:

  • Fully guarded
  • Includes a no volt release switch for secure start safety
  • CE Conformity

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Belt size 100mm x 2000mm
Workable top plate area 100mm x 400mm
Base size W x D 400mm x 650mm
Belt speeds 1020m/min & 2040m/min
Motor 2.4 / 3kW 415V
Weight 145kg
Floor space W x D x H 1400mm x 700mm 1200mm
