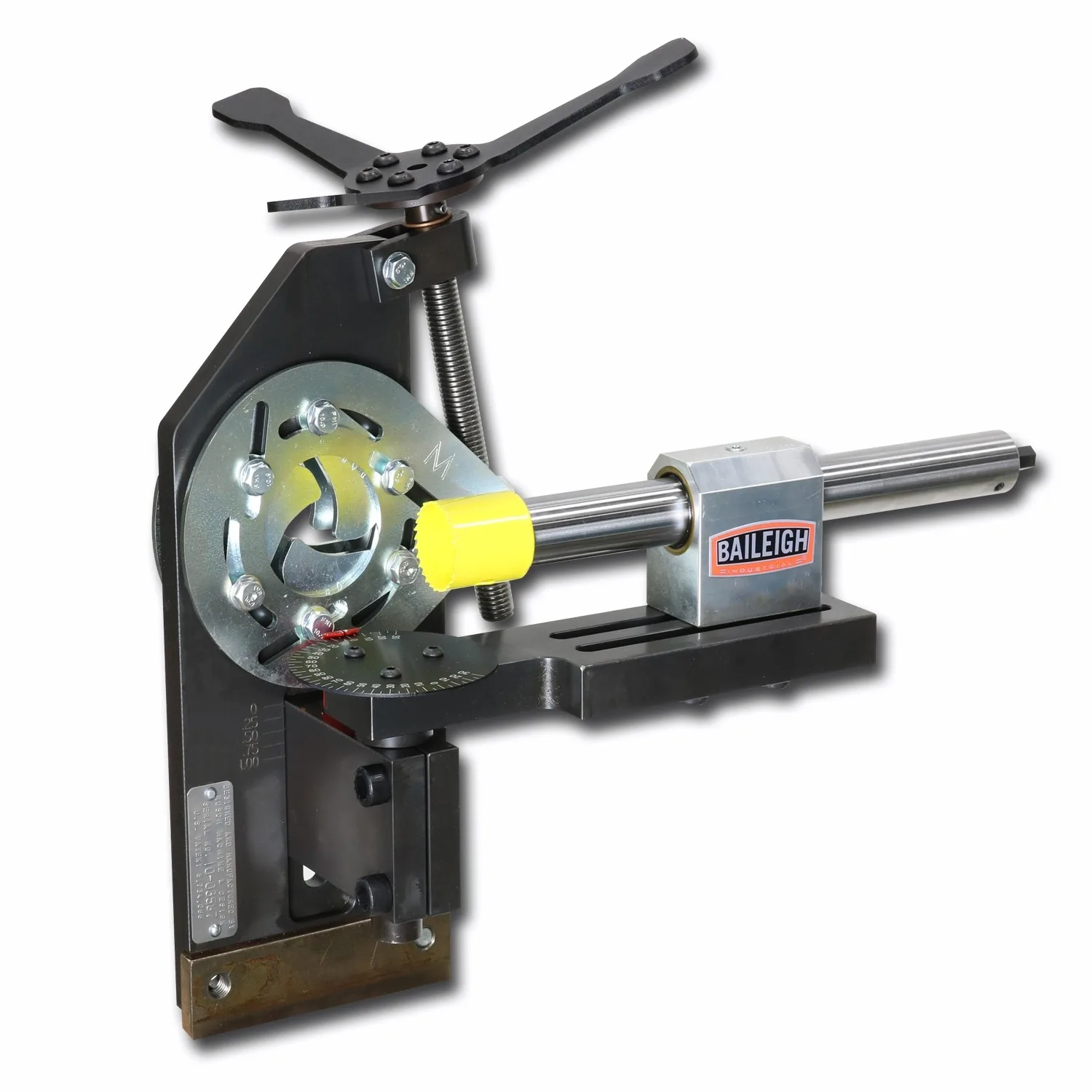

Baileigh TN-250 Tube & Pipe Notcher

12.7 - 63mm

$1,799.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Model TN-250
Tube size 12.7 - 63.5mm
Angle adjustment 0 - 220 degrees
Drive shaft attachment tip 12.7mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

The Baileigh TN-250 tube and pipe notcher is a versatile machine which features a self-centering radial vise that securely clamps tubes and pipes from any angle, even in the middle of a bend. Baileigh Industrial took on the challenge to create a truly universal and easy to use tube notcher. This smart design ensures perfect alignment and consistent results, regardless of tube size.

Baileigh Industrial is a leading U.S. manufacturer of metalworking and woodworking machinery, founded in 1999 in Wisconsin. Known for innovation like the first hydraulic tube bender to do 180 degrees bends in one shot, Baileigh offers a large selection of pipe/tube benders and well as industry leading panel beating, sheet metal and metal forming machinery. They are widely respected not only for durable, high-performance equipment but also for their excellent tutorial videos on youtube, helping users get the most from their machines.

Features:

  • Self centering 6 jaw radial vice
  • 1-1/4" hardened Thompson shaft running on sealed needle bearings
  • Solid steel construction
  • Bench vice mounting
  • Slotted carriage for offset notches
  • Wide angle range to 220 degrees
  • Attach power drill to the 12.7mm drive
  • Uses commercially available hole saws
  • *** Hole Saw not included ***

Optional

  • Replacement drive studs ($38 +GST)

Machine video

See Baileigh TN-250 in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model TN-250
Tube size 12.7 - 63.5mm
Angle adjustment 0 - 220 degrees
Drive shaft attachment tip 12.7mm
Dimensions (WxLxH) 610 x 305 x 305mm
Weight 23 kg
