WEB-KOJEX SIDE LOCK
Tooling, Accessories & Consumables · Lathe & milling tooling

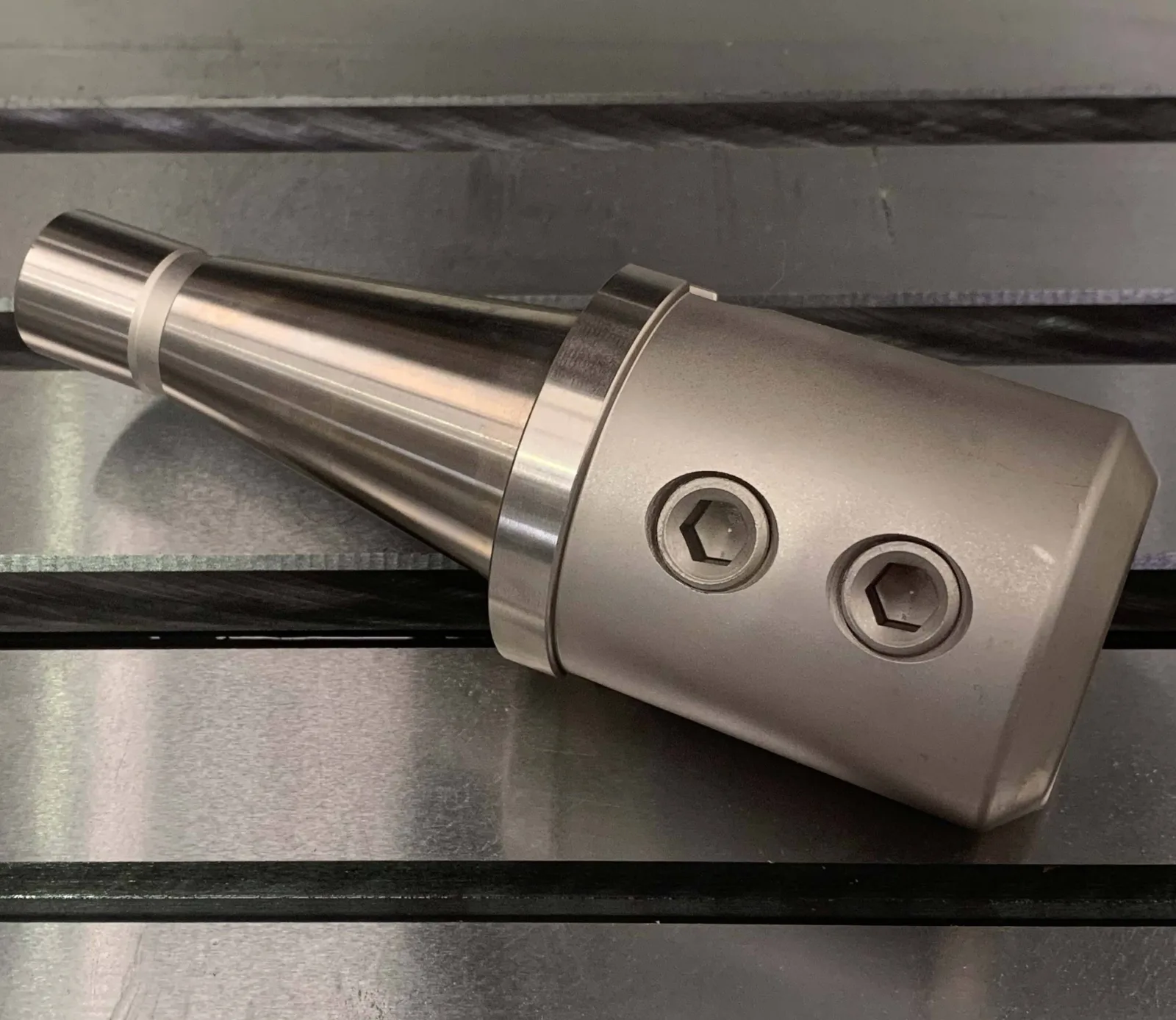

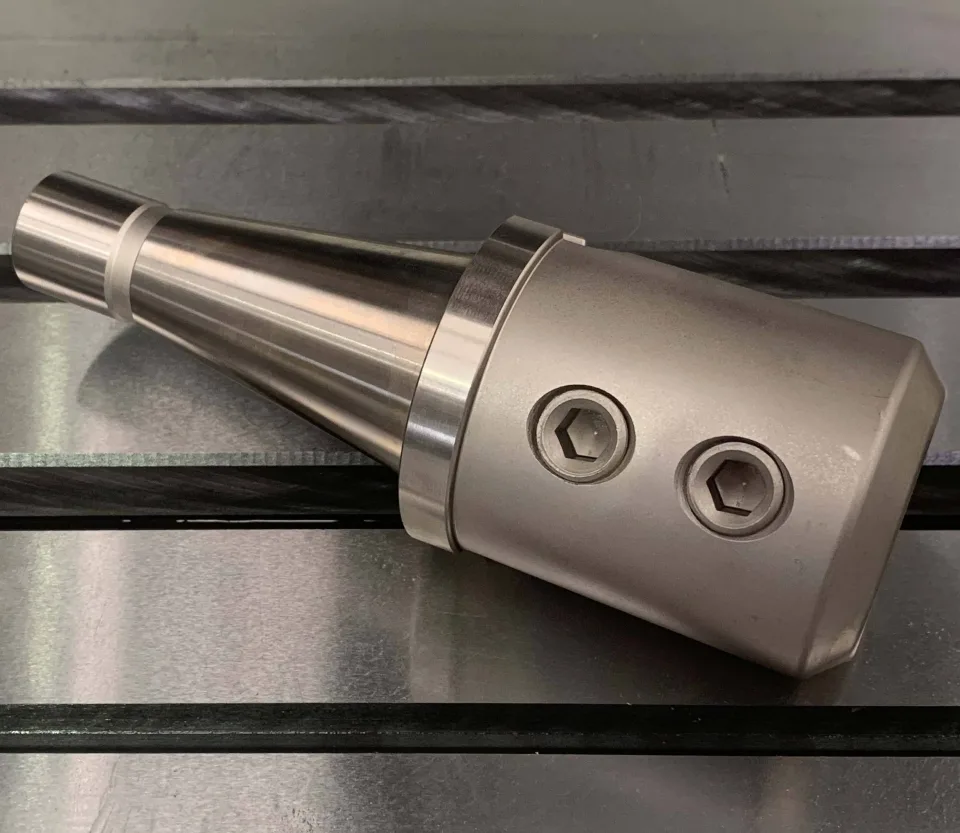

Optimum Sidelock End Mill Holders
Sidelock endmill holders to suit NT40 BT40 and BT50
POA
Configured to suit your application. Talk to us for a price.
NZ Prepared, installed and supported nationwide by Scott Machinery.
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.
Optimum side lock end mill holders are robust, high-precision tool holders designed for securely clamping end mills with a straight shank. Featuring a side-locking screw mechanism, they provide a solid and repeatable grip, ideal for heavy milling, slotting, and roughing applications. Manufactured from hardened, precision-ground steel and available in taper types such as BT, NT, and MT, these holders ensure excellent concentricity, reduced vibration, and long service life. A reliable choice for both CNC and manual milling operations.
Features:
- Side-lock clamping securely holds straight-shank end mills with set screw fastening
- Precision-ground body. Ensures excellent concentricity and reduced tool runout
- Hardened alloy steel. Provides strength, durability, and long service life
- High clamping force is ideal for heavy duty milling, slotting, and roughing operations
- Axial length control maintains consistent tool length for accurate machining
- Balanced design i suitable for high-speed CNC or conventional milling applications
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Optimum | Optimum side lock tool holders | |||
|---|---|---|---|---|
| Taper | Model | Length | Diameter | Price Excl GST |
| BT40 | SL6 | -75 | 6mm | $115.00 |
| BT40 | SL8 | -75 | 8mm | $115.00 |
| BT40 | SL10 | -75 | 10mm | $115.00 |
| BT40 | SL12 | -75 | 12mm | $115.00 |
| BT40 | SL12 | -120 | 12mm | $180.00 |
| BT40 | SL14 | -75 | 14mm | $115.00 |
| BT40 | SL16 | -75 | 16mm | $115.00 |
| BT40 | SL20 | -75 | 20mm | $115.00 |
| BT40 | SL25 | -90 | 25mm | $125.00 |
| BT40 | SL32 | -90 | 32mm | $125.00 |
| BT50 | SL6 | -75 | 6mm | $205.00 |
| BT50 | SL8 | -75 | 8mm | $205.00 |
| BT50 | SL10 | -75 | 10mm | $205.00 |
| BT50 | SL12 | -75 | 12mm | $205.00 |
| BT50 | SL14 | -75 | 14mm | $205.00 |
| BT50 | SL16 | -75 | 16mm | $205.00 |
| BT50 | SL20 | -75 | 20mm | $205.00 |
| BT50 | SL25 | -105 | 25mm | $220.00 |
| BT50 | SL32 | -105 | 32mm | $220.00 |
| BT50 | SL40 | -120 | 40mm | $250.00 |
| BT50 | SL42 | -120 | 42mm | $260.00 |
