Marox Facing Cutter Heads

Name: Marox Facing Cutter Heads
Brand: Marox
SKU: WEB-MAROX FACING HEADS

Economical facing cutters which takes replaceable carbide inserts (ISO standard)

POA Configured to suit your application. Talk to us for a price.

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

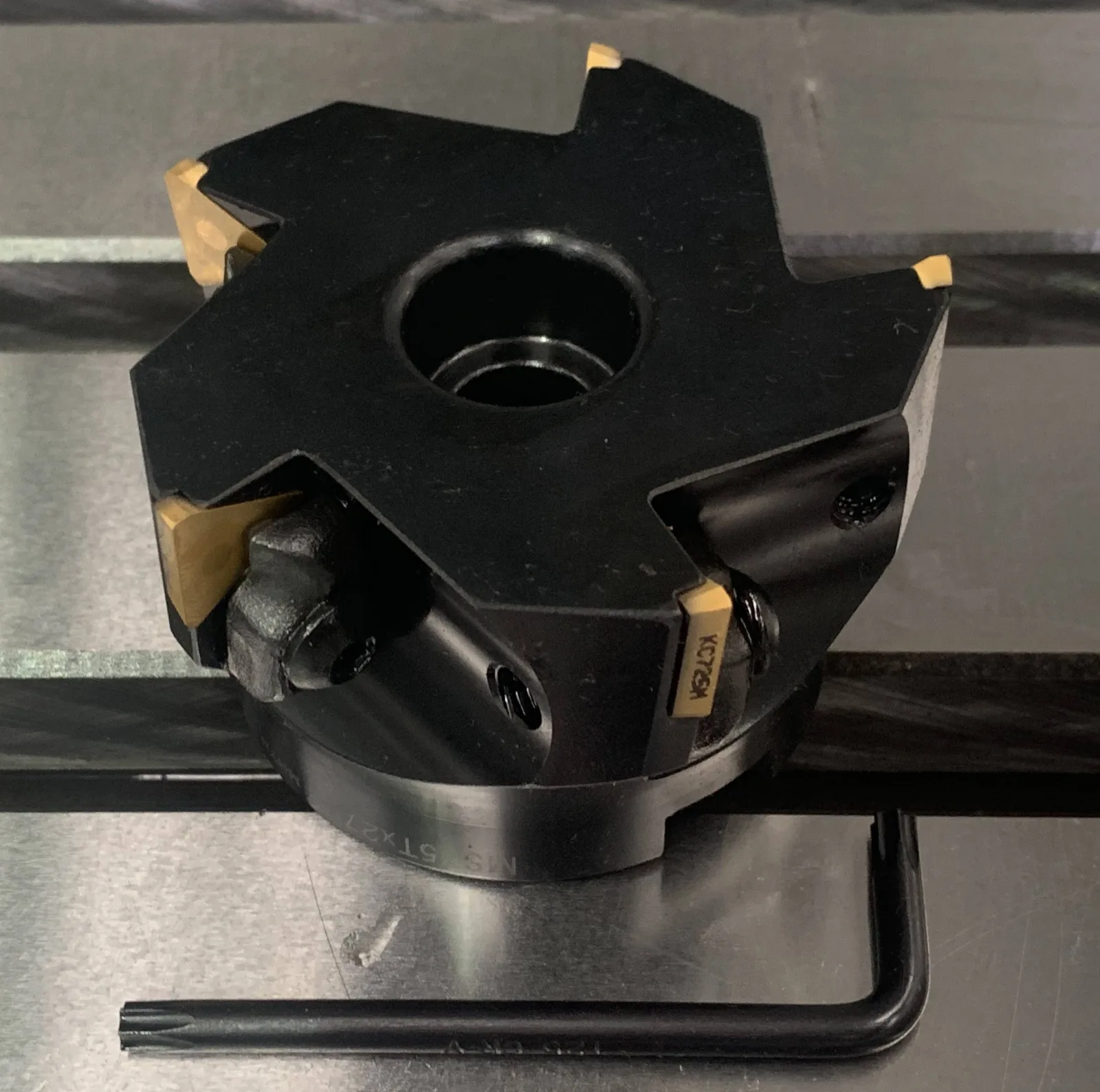

"Marox precision 90-degree approach face milling cutter heads. These tools deliver good surface finishes and dimensional accuracy across diverse materials. ISO certified and built for production reliability, Marox milling solutions represent the ideal balance of performance, tool life, and machining efficiency for demanding manufacturing operations."

Economical facing cutters

Take TPKN1603 triangle replaceable carbide inserts
Requires a face mill arbor to suit taper & with correct spigot size.

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.

Specifications for Marox Facing Cutter Heads
Model	Diameter	Bore	# of inserts reqd	Price excl GST
MS-50	50mm	22mm	3	$125.00
MS-63	63mm	27mm	4	$140.00
MS-75	75mm	27mm	5	$150.00
Carbide Inserts
Kennametal brand	TPKN 1603 Milling inserts			$24.00 each
Expert brand	TPKR 1603 Milling inserts			$9.90 each
