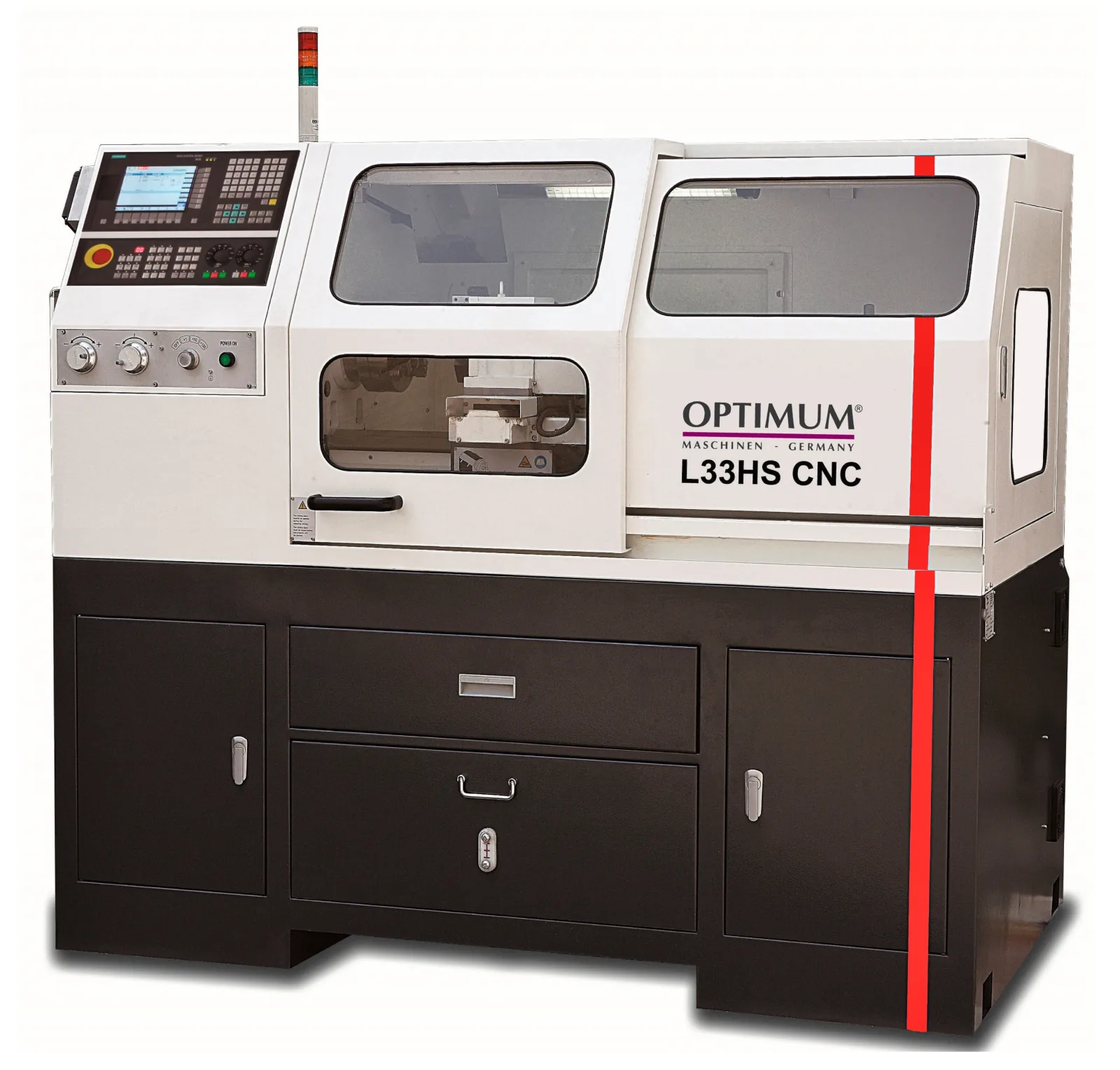

Optimum L33HS Compact CNC Lathe

6 Station auto turret

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Swing over bed 330mm
Distance between centres 630mm
Spindle bore 42mm
Controller Siemens 808D
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

The Optimum L33HS OPTi-Turn is a compact yet powerful CNC lathe, ideal for precision machining in small to medium sized workshops. Designed and engineered in Germany, this machine combines advanced technology with robust construction to deliver exceptional performance

Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.

Features:

  • 330mm swing over bed and 630mm between centres, accommodating a variety of workpieces.
  • High-speed spindle with a range of 30-4,000 rpm, ensuring efficient material removal.
  • Equipped with a 6-station auto turret and 16mm square tooling, facilitating quick tool changes and versatility.
  • Siemens 808D CNC control, offering intuitive operation and reliable performance.
  • 2 Axis servo motor control
  • Inductively hardened bed guideways (HRC 42-52) for enhanced durability and stability during operation.
  • Fully enclosed guarding with CE safety standards, LED work light, and flood coolant system.
  • Includes a removable chip tray and a central lubrication unit for ease of maintenance.
  • Constant surface speed
  • LED work light
  • Flood coolant

Safety Features:

  • Latching Emergency stop separate from the on / off buttons
  • Fully enclosed guarding with interlocked microswitches
  • CE Conformity

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Controller Siemens 808D
Swing over bed 330mm
Swing over cross slide 152mm
Distance between centres 630mm
Centre height 165mm
Spindle bore 42mm
Spindle speed range 30 - 4,000 rpm
Number of tool positions 6
Tool size 16 x 16mm
Maximum turning diameter 275mm
Maximum turning length 600mm
Motor power 5 kw - 415V
Machine weight 1250kg
Packing size (L x W x H) 2060 x 1390 x 1815mm
Shipping 1350kg/5.2m3

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
