King Rich Proturn RLX 480 x 1250 Combination Manual / CNC Lathe

Product overview

About this machine.

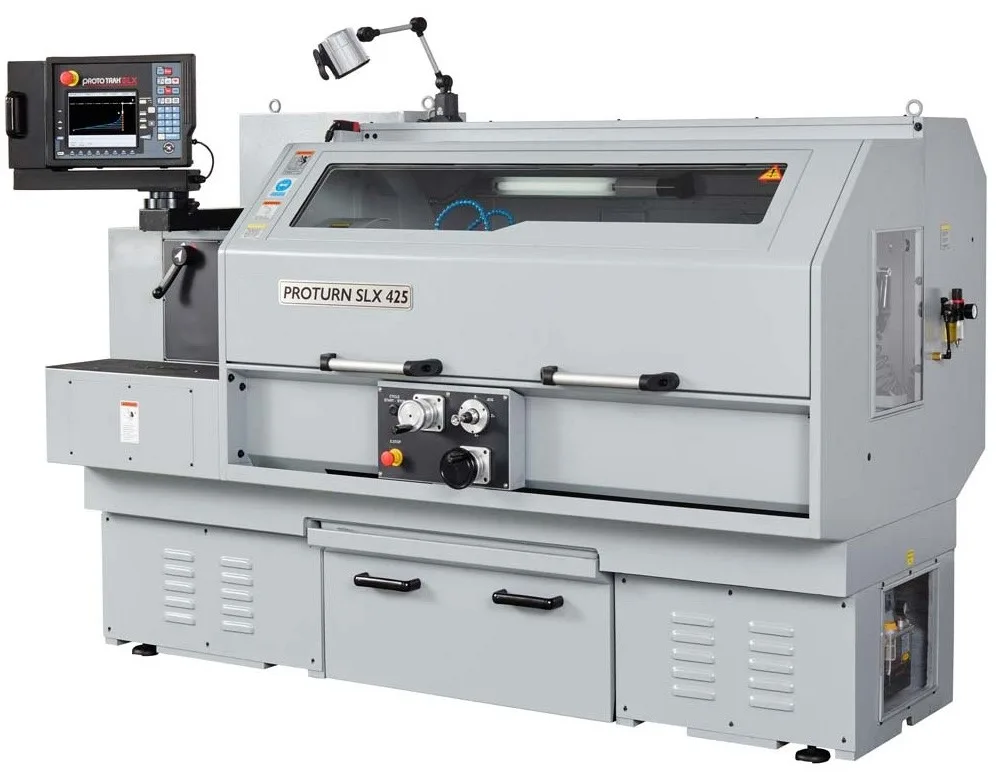

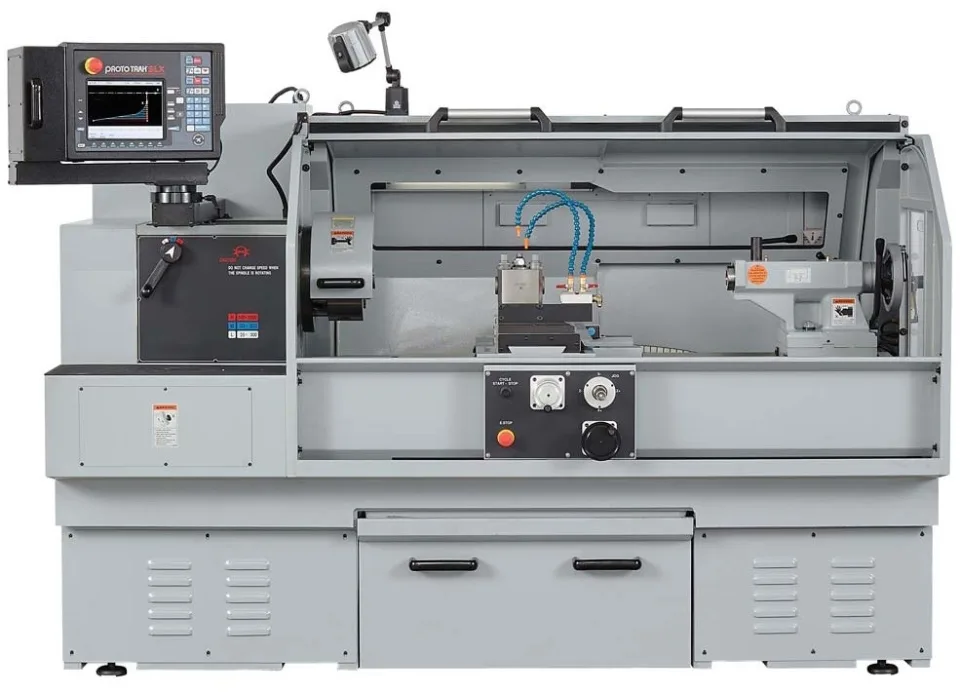

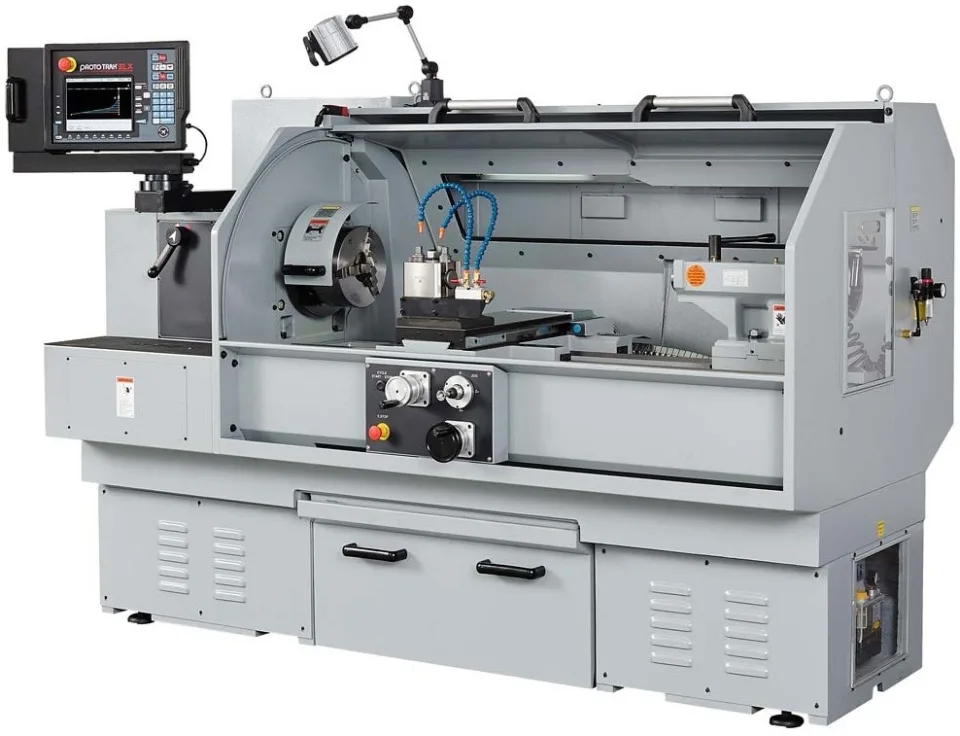

Note: Machine images shown with SLX control.

Capacity, capability & value! After the first day you will wonder why you ever used a manual lathe. 480mm swing, 80mm bore, 1250mm between centres, 2500rpm

In 1995, ProtoTRAK introduced the simple to program and use ProtoTRAK conversational control for a Lathe (Proturn) and revolutionised the production of small batch and one off turned parts. The latest RLX ProtoTRAK offers more power and features whilst retaining the original simplicity. If you are looking for an edge over your competition, or you need flexibility and speed on the shop floor then ProtoTRAK really is the answer.

The Proturn RLX480 has capacity, capability and value! After the first day you will wonder why you ever used a manual lathe.

A tribute to King Rich turret mills is the huge quantity being sold throughout Europe by UK Company XYZ Machine Tools Ltd. They specialise in selling high quality, precision, performance, toolroom machine tools in a market that only accepts the best.

Electronic Handwheels allow in manual operation the Handwheel to be switched between course and fine, as well it has the advantage of the handwheels not spinning around when in automatic mode.

The powerful TRAKing feature of the ProtoTRAK RMX CNC comes in that you no longer have to choose between the efficiency of CNC and manual control. With TRAKing, you don't have to go through the process of proving out the CNC program before you press the Go button. You can run the CNC program at the speed at which you crank the handwheel. Go fast, go slow, stop and take a measurement, go backwards, whatever. You are in complete control as the machine moves through the programmed coordinates.

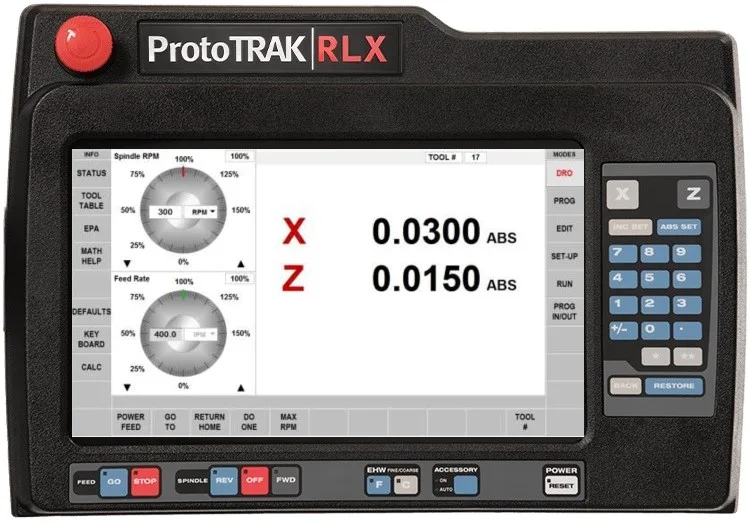

This Lathe offers the latest ProtoTRAK technology. Canned cycles including turning, boring, theading, grooving, thread repair & others.

Features: The selected lathe has the excellent inherent design features listed below to provide the rigidity and accuracy necessary to perform heavy duty machining for all multi purpose engineering applications: The slide ways between the saddle and bed are Turcite coated to provide reduction in friction resistance, saving on power consumption and smoother machine operation. Hardened and precision ground gears and bed-way One piece solid cast iron base Delta servo drives & brushless AC motors 15.6" Touchscreen Bed Width of 370mm Super high precision taper roller spindle bearing arrangement D1-8 Camlock spindle Manufactured to ISO 9002 standards
