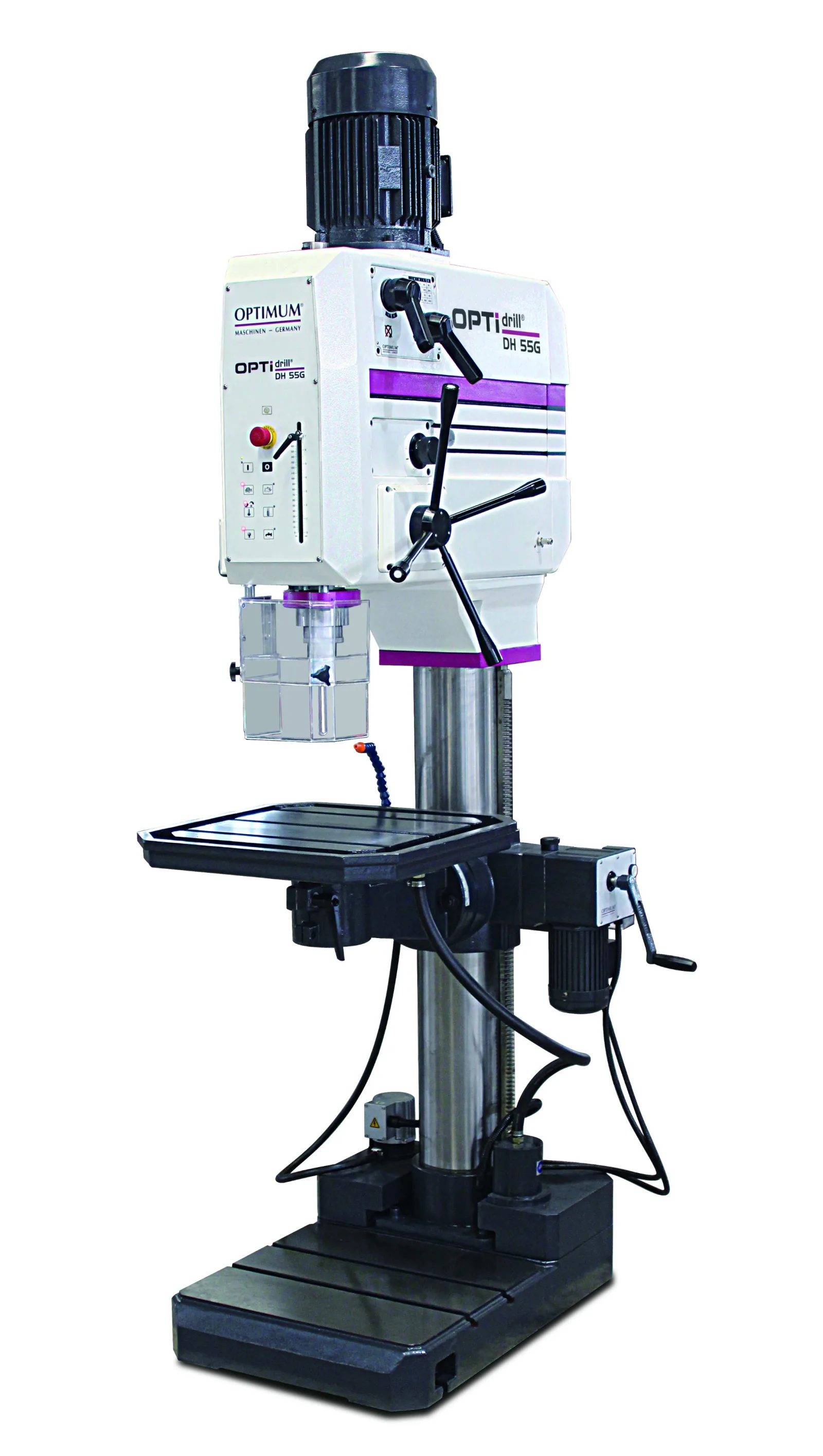

Optimum DH55G Geared Head Drill Press

Name: Optimum DH55G Geared Head Drill Press
Brand: Optimum
SKU: DGHD-0-4255

Geared head. 4 Morse taper. 55mm Drilling Capacity. 3 Phase 2.5/2.8kw. Coolant. Power feed.

On Order Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

Optimum DH-55G

Drilling capacity (max in mild steel) 55mm

Continuous capacity - steel 50mm

Spindle taper MT 4

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.

The Optimum DH55G is the most heavy duty of our, high capacity, column mounted geared head drill built for industrial environments and demanding workshop use. With its robust cast iron construction and hardened, precision ground main spindle, the DH55G delivers smooth, high torque performance ideal for large diameter drilling tasks and extended duty operation. The oversized, heavy-duty worktable travels on a rack and pinion system, tilts plus or minus 60 degrees, rotates a full 360 degrees around the column, and supports workpieces up to 350kg. Supplied with a 16mm keyless drill chuck and arbor (not shown in photos), the DH55G is well suited for professional metalworking, production work, and any application requiring power, rigidity, and drilling accuracy on a larger scale.

Features:

Geared head drive with 16 speed range (45-2,000 rpm) delivers smooth, high torque performance across a wide range of materials
Drilling capacity up to 55mm in mild steel (maximum) and 50mm continuous duty
4MT spindle taper suitable for industrial tooling
Hardened and precision ground spindle with high quality bearings for excellent concentric accuracy and minimal runout
Automatic spindle feed with 3 selectable feed rates and electromagnetic operation for easy on/off control via the feed lever
200 mm quill stroke and approximately 400 - 405 mm throat depth to accommodate large workpieces
Large 600 x 600 mm precision machined work table with 3 parallel 18 mm T-slots, tilting +/-90 degrees, rotating 360 degrees around the column, and rack and pinion height adjustment for versatile setups
Large solid base with integrated T-slots for direct mounting of large components
Sealed oil-bath lubricated gearbox with hardened and ground gears for durability and low maintenance, including automatic lubrication
Integrated depth stop with millimeter scale, automatic spindle ejector for quick tool changes, safety chuck guard with microswitch, and built in LED work light
Coolant pump with removable tank and chip filter for clean, continuous operation
Membrane keypad control (splash and dirt proof) with drilling, tapping, spindle direction, and coolant activation functions
Emergency stop and lockable main isolator switch for operator safety
Heavy duty construction featuring a thick walled 200 mm cast iron column and total machine weight of approximately 910 kg for exceptional rigidity and stability

Standard accessories:

16mm Keyless drill chuck & arbor
Coolant system

Safety Features:

User-friendly (24v) control buttons with separate start, stop latching Emergency stop
Zero voltage
Motor protection
Drill chuck safety shield with interlocked microswitch
Main isolation switch with lockout
Drill ejection system
CE Conformity
