OPTIMUM CH50 Z Axis Preset Dial Gauge

Product overview

About this machine.

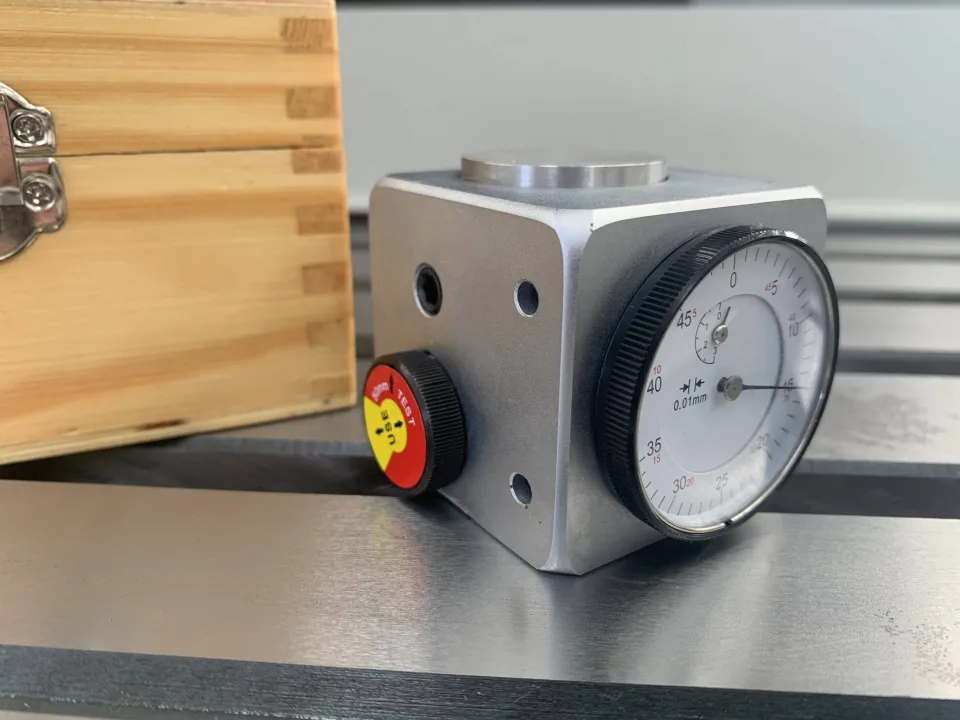

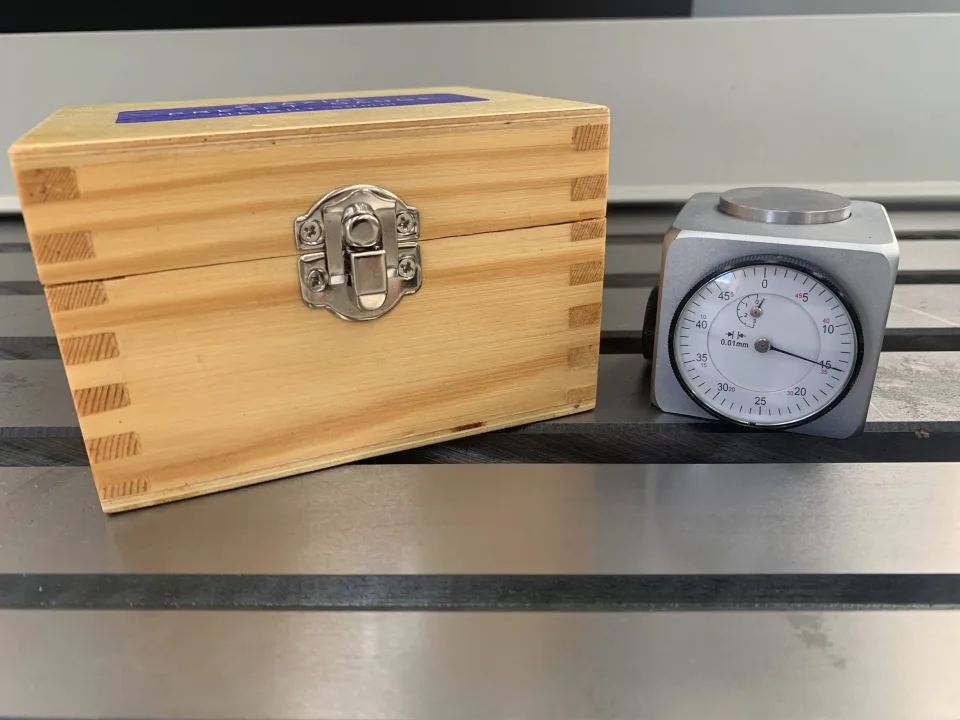

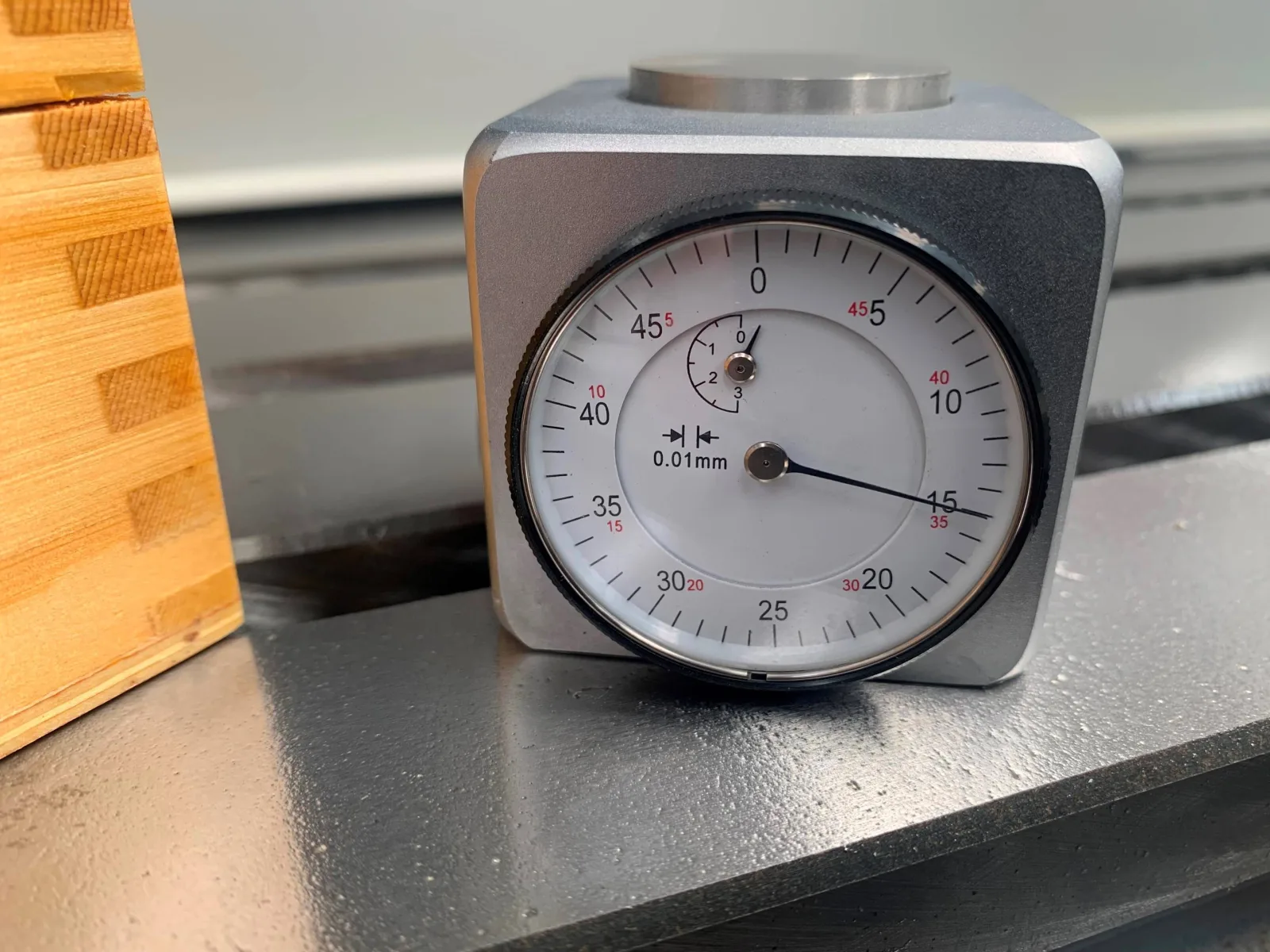

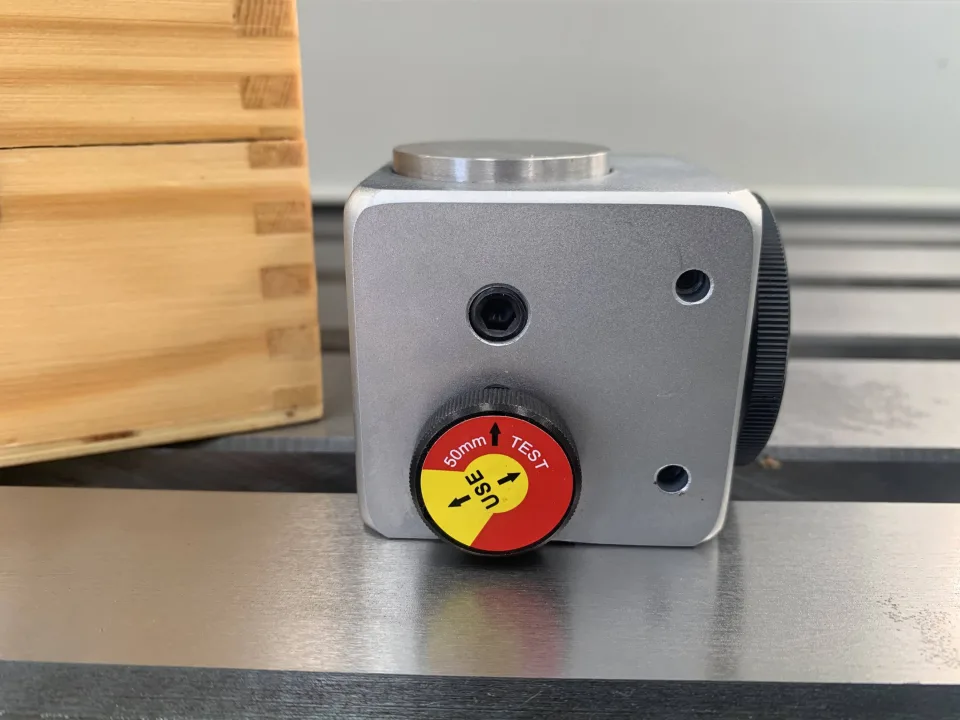

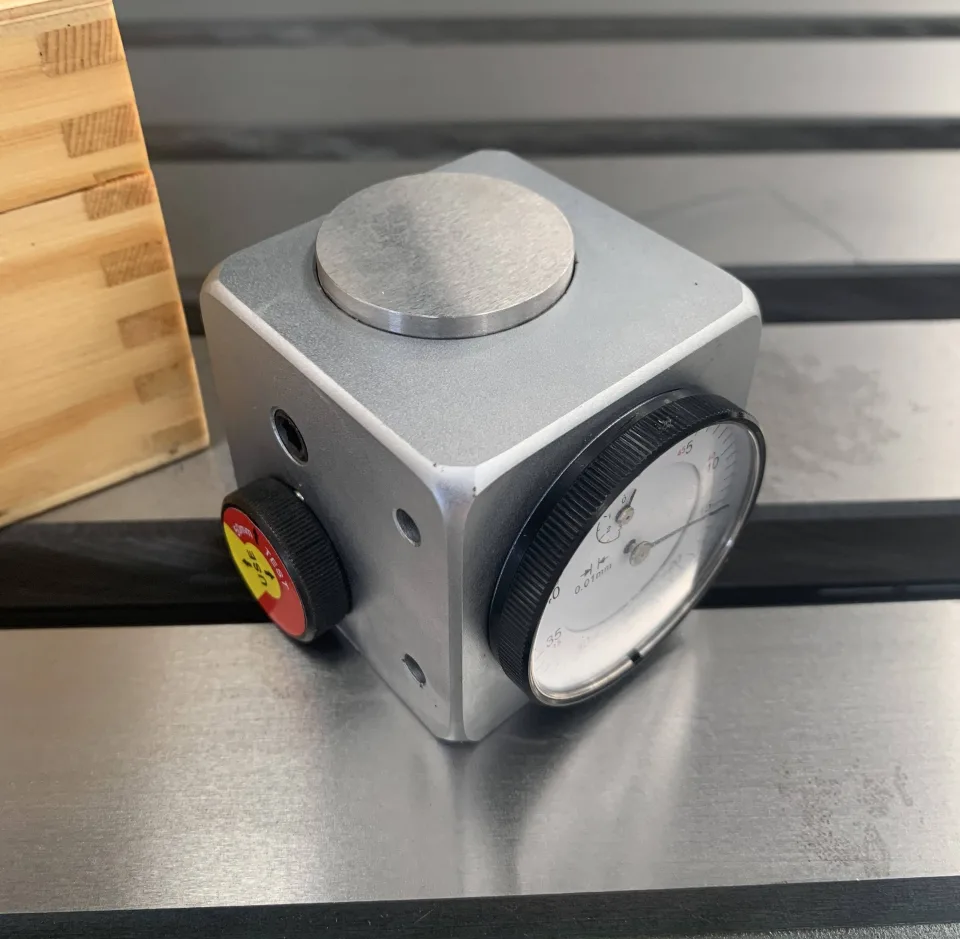

The Optimum CH50 with analogue dial gauge features a compact 50 mm housing, designed for quick, touch-free setup. It is used for fast and accurate Z axis reference setting or tool length calibration on CNC machines and DRO systems (e.g. milling or drilling tools without workpiece contact). The CH50 offers two knob controlled modes. In "calibration mode" the plunger travels to exactly 50.00 mm, enabling you to retract it and zero the dial indicator. In "use mode" allows over travel beyond zero, utilizing the full 3 mm dial range to detect plunge depth during tool contact.

Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.
