WEB-TY343842 SERIES
Workshop Machinery · Conventional lathes

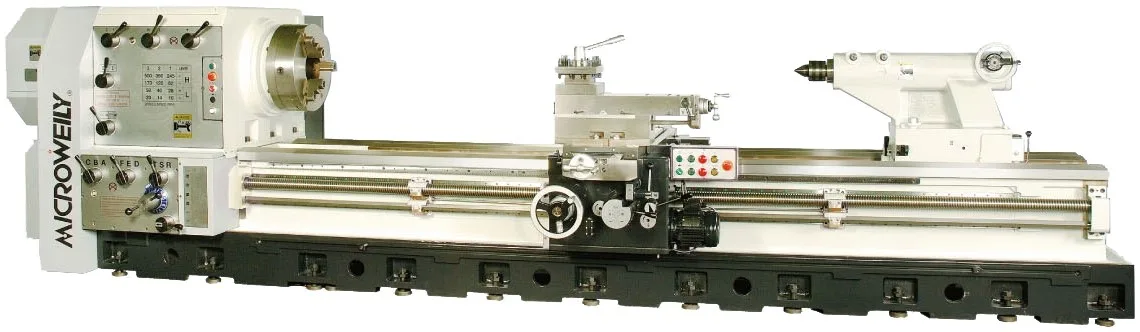

Microweily TY34 TY38 TY42 Large Bore Lathe Series
170mm or 255mm spindle bore options
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
170mm or 255mm spindle bore options
Key features

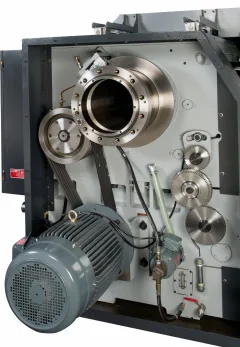

- 170mm Spindle bore
- Ideal for large pipework & threading
- One piece floor type cast base
- Wide bed width 560mm
- Headstock clutches
- Rapid traverse to carriage
- Precision straight bedway
- Hydraulic disc braking
Optional:
- Twin chucking
- Taper turning attachment
- Large fixed steadies
- Powered top slide options
- 255mm spindle bore upgrade
- 25HP main motor upgrade
- Large chuck options
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | TY-34 | TY-38 | TY-42 |
|---|---|---|---|
| Swing over bed | 870mm | 970mm | 1070mm |
| Swing over cross slide | 640mm | 740mm | 840mm |
| Spindle bore | 170mm | 170mm | 170mm |
| Distance between centres | 2,3,4,5 or 6m | 2,3,4,5 or 6m | 2,3,4,5 or 6m |
| Speed range rpm | 10 - 500 rpm | 10 - 500 rpm | 10 - 500 rpm |
| Number of spindle speeds | 12 | 12 | 12 |
| Main motor | 20HP | 20HP | 20HP |
Talk to Scott Machinery
Is this the right machine for your work?
Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
