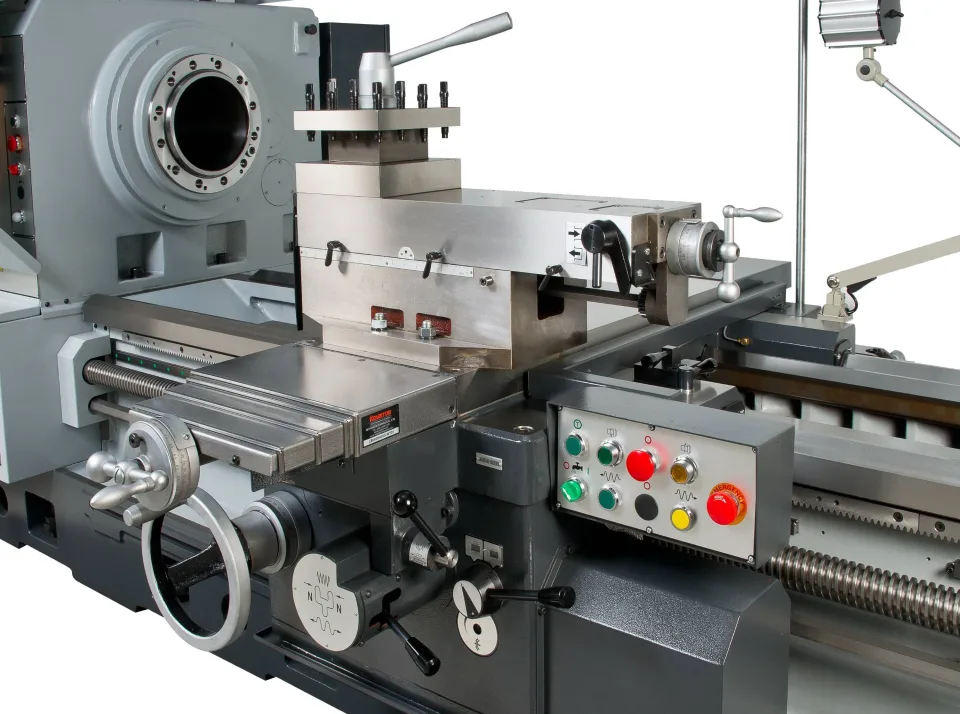

Microweily TY34 TY38 TY42 Large Bore Lathe Series
POA
WEB-TY343842 SERIES | Prices exclude GST
Product overview
About this machine.

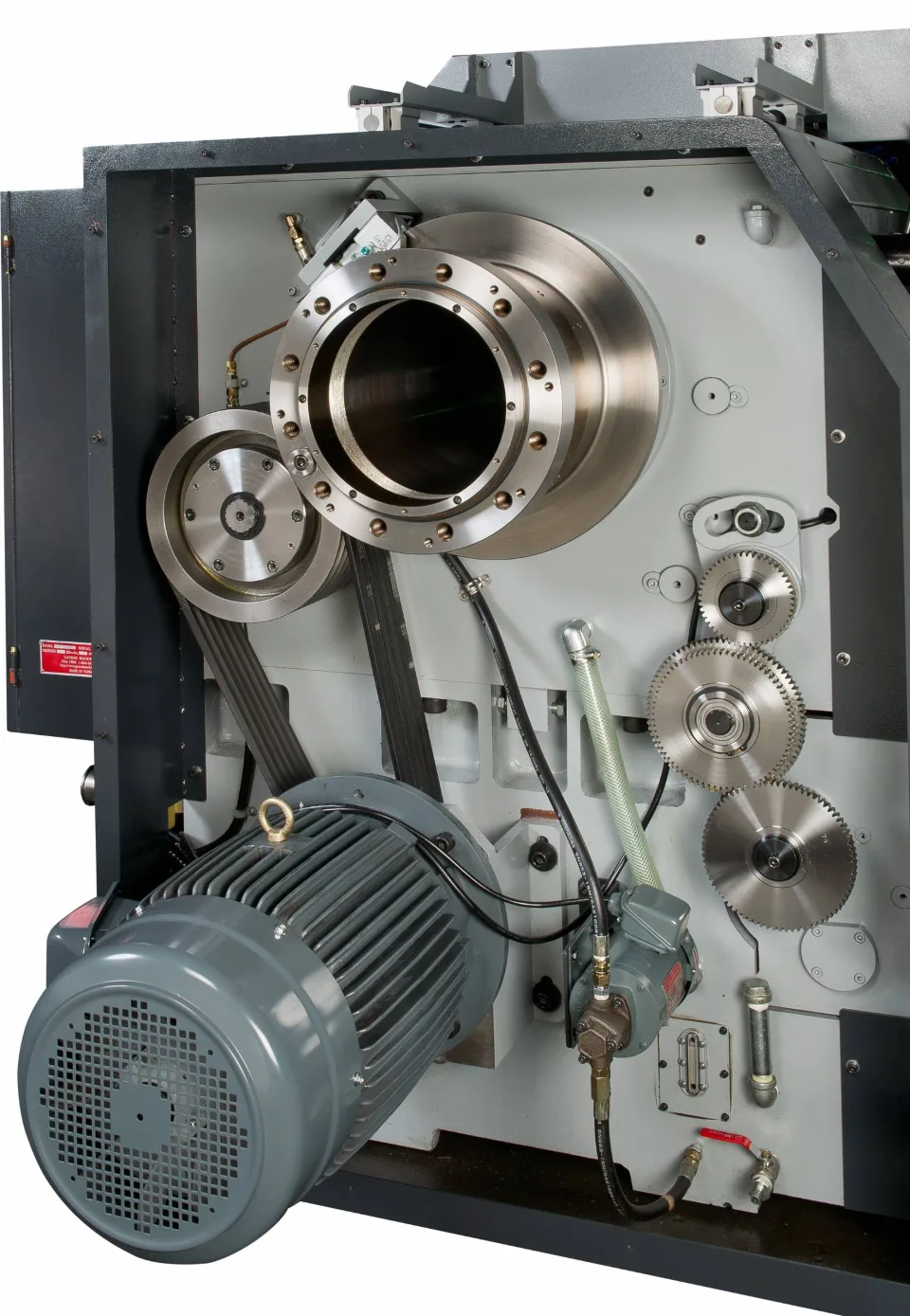

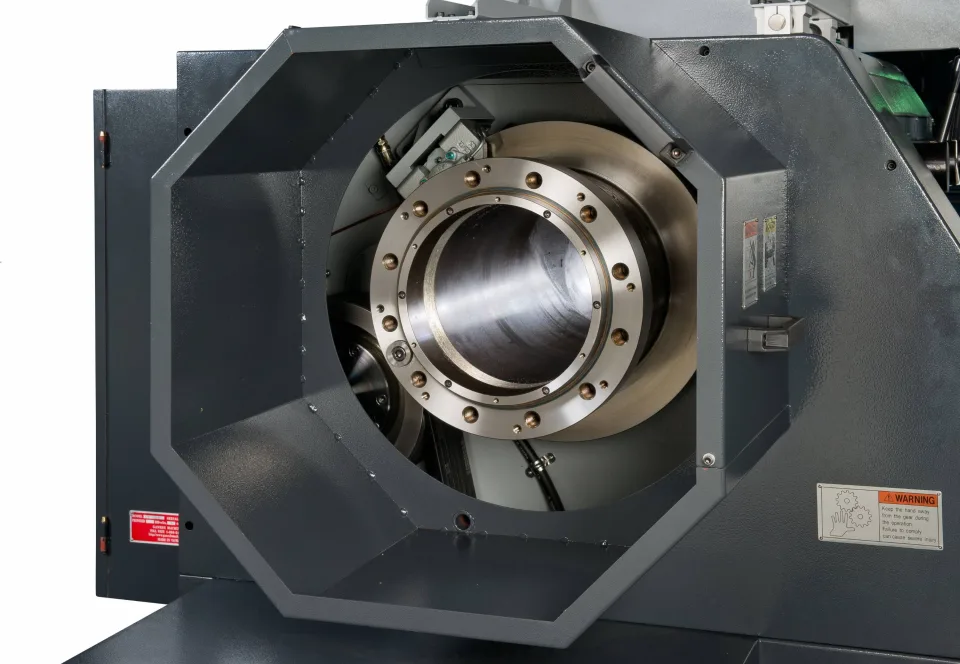

170mm or 255mm spindle bore options
Key features
- 170mm Spindle bore
- Ideal for large pipework & threading
- One piece floor type cast base
- Wide bed width 560mm
- Headstock clutches
- Rapid traverse to carriage
- Precision straight bedway
- Hydraulic disc braking
Optional:
- Twin chucking
- Taper turning attachment
- Large fixed steadies
- Powered top slide options
- 255mm spindle bore upgrade
- 25HP main motor upgrade
- Large chuck options
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | TY-34 | TY-38 | TY-42 |
|---|---|---|---|
| Swing over bed | 870mm | 970mm | 1070mm |
| Swing over cross slide | 640mm | 740mm | 840mm |
| Spindle bore | 170mm | 170mm | 170mm |
| Distance between centres | 2,3,4,5 or 6m | 2,3,4,5 or 6m | 2,3,4,5 or 6m |
| Speed range rpm | 10 - 500 rpm | 10 - 500 rpm | 10 - 500 rpm |
| Number of spindle speeds | 12 | 12 | 12 |
| Main motor | 20HP | 20HP | 20HP |
