Microweily TY-26160-CE Precision Centre Lathe

Name: Microweily TY-26160-CE Precision Centre Lathe – c/w 105mm bore, rapid, DRO & QCT
Brand: Microweily
SKU: LCNT-0-1293

TY-26 Series made in Taiwan. 660mm swing x 4040mm centres x 105mm bore, High Quality Lathe. TY-2660, TY-2680 TY-26100, TY-26120 TY-26160 centre options

POA Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

Swing over bed 660mm

Distance between centres 4060mm

Spindle bore 105mm (D1-11)

Speed range 15 - 1200rpm

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

The Microweily TY series of manual lathes is New Zealands benchmark for quality lathes. They are produced by one of the original Taiwanese machine tool companies, with a history of over 50 years in manufacturing both CNC and high-speed precision conventional lathes. Microweily lathes are a proven choice for precision toolmaking, production, and general engineering applications. Manufactured in Taiwan and trusted worldwide.

The TY-26160-CE is a heavy duty precision lathe with our popular 105mm spindle bore, suiting a large number of general heavy turning applications. As standard it has a powerful 10HP electric motor which has been upgraded to 15HP by Scott Machiney and all the benefits of a heavy-duty solid casting, features typically associated with large machines. This means you get a machine with precision feel that is hard to achieve on heavy lathes, along with quality operation and an excellent finish.

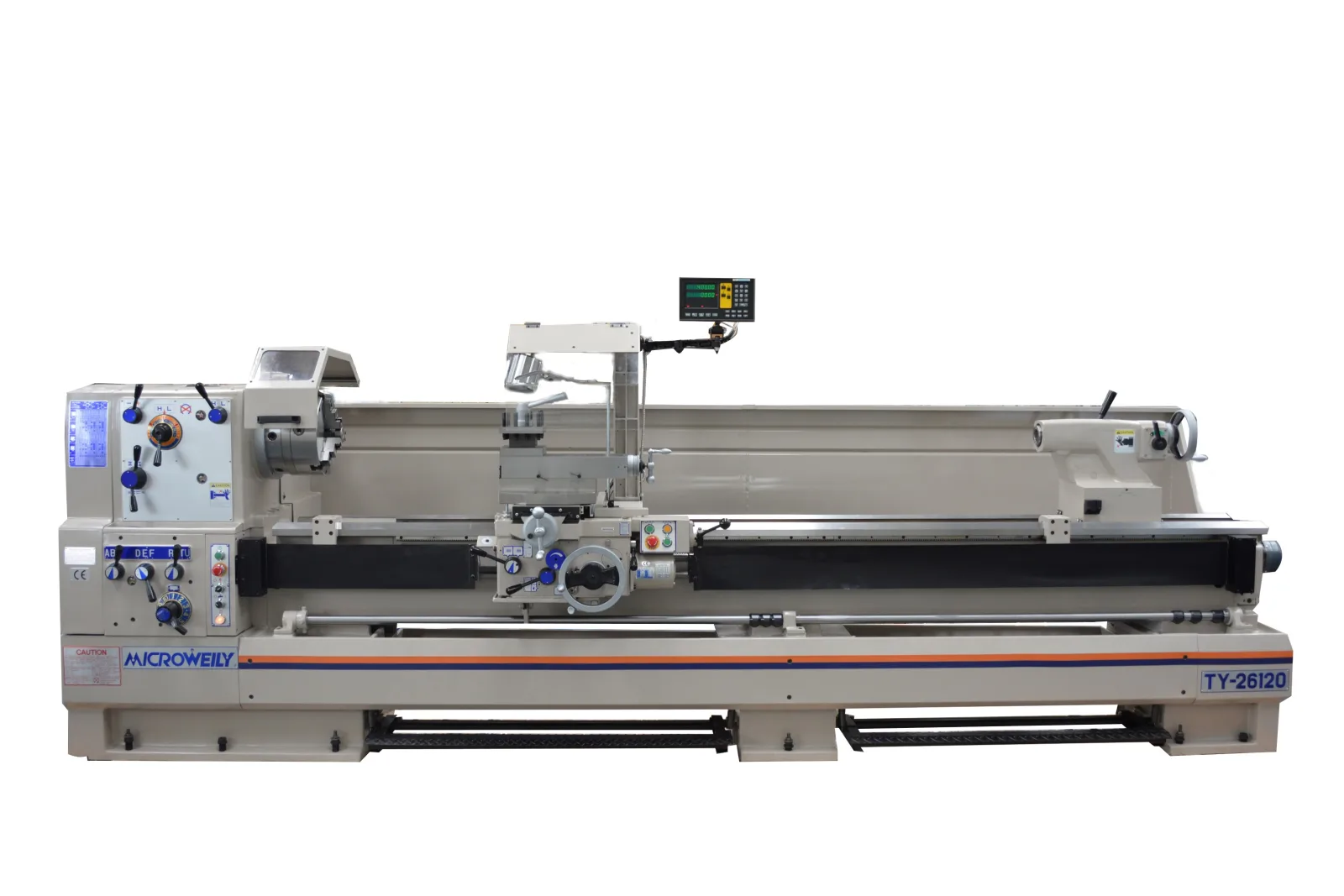

(Photo shows TY-26120)

Key features

Heavy duty one-piece Meehanite cast base for superior vibration dampening and good resistance to wear.
Bedways and cross slide are induction hardened to HRC 52 and precision ground.
The slide ways between the saddle and bed are Turcite B coated reducing the friction resistance, providing smoother feel and a more effortless machine operation experience.
Fully enclosed 12-speed headstock
Hardened and precision ground headstock gears.
Precision spindle with 3 precision taper roller spindle bearings to achieve maximum accuracy.
Direct drive (not a clutched head stock)
D1-11 Spindle nose with 105mm spindle bore
Metric and imperial threading capability via gear driven leadscrew
Power feed range. From 0.037mm - 1.04 (50 settings) on the longitudinal axis (X) and from 0.0185mm - 0.52mm/rev (50 settings) on the cross slide (Y)
Generous swing with gap bed.
Right hand carriage wheel
One shot lubrication system
Two speed robust cast tailstock with 5MT quill
Manufactured to ISO 9002 standards
CE Conformity

Scott package includes

Newall NMS800 2 axis digital readout system
Italian Style quick change toolpost (C) c/w 4 holders accepts 25 x 25mm tooling.
3 Jaw chuck 310mm "Strong" (Taiwanese D1-11)
4 Jaw chuck 400mm direct mounting (D1-11)
Fixed steady rest (105mm-300mm)
Following steady rest (10 - 100mm)
Coolant system
LED lamp
Longitudinal rapid traverse to carriage
Longitudinal positional stops
Chuck guard with microswitch
Toolpost protector
Leadscrew protection
Full length splash guard
Thread dial indicator
