Microweily TY-2060 CNC Combination Manual / CNC Lathe
1 / 10
Microweily logo CNC-0-2061

CNC Machine Tools · Teach & toolroom machines

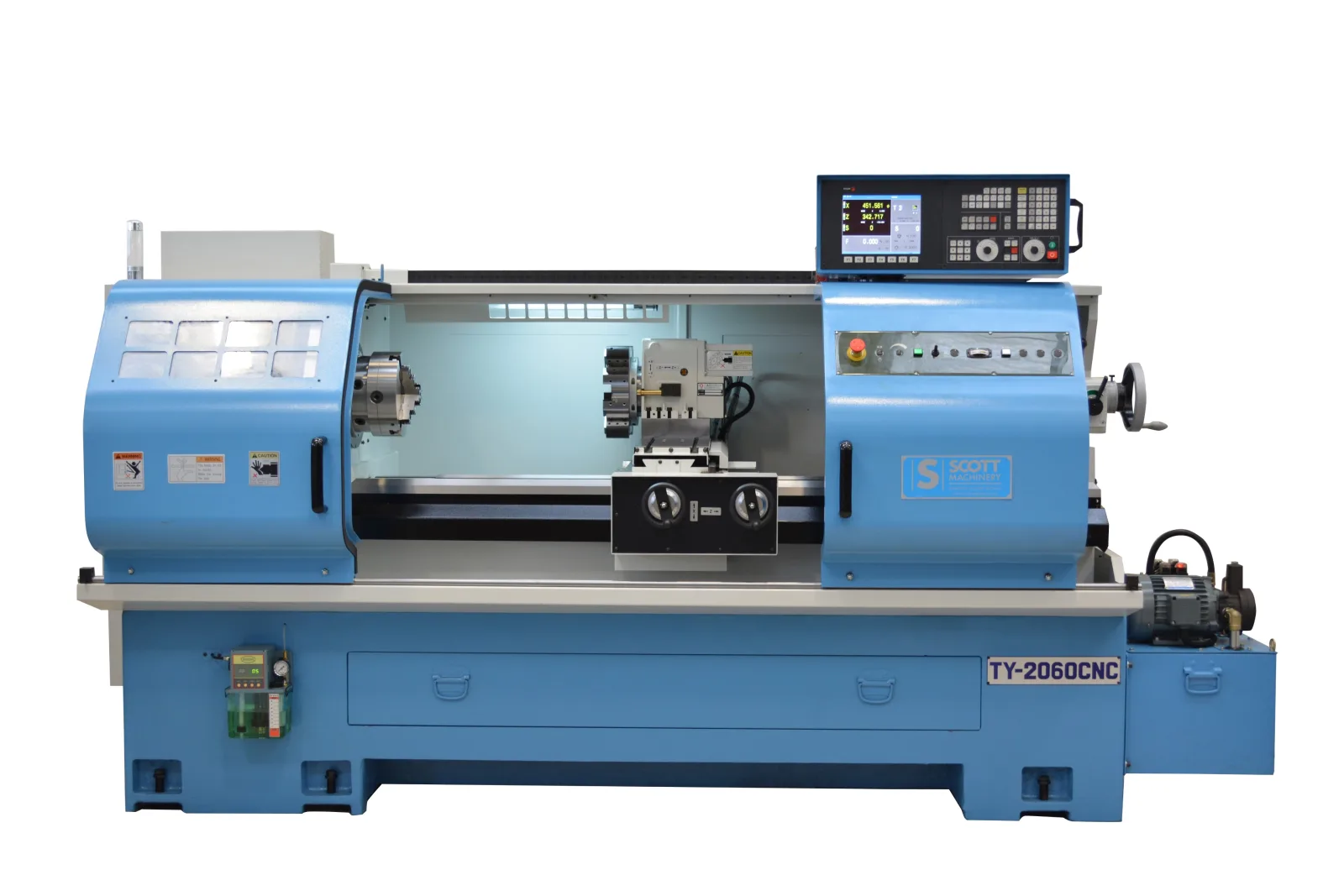

Microweily TY-2060 CNC Combination Manual / CNC Lathe

Fagor 8055TC CNC control 510 x 1500mm

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Swing over bed 510 mm
Distance between centres 1500 mm
Spindle bore 86 mm
Microweily TY-2060CNC
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

The Microweily CNC lathe range sets the standard for precision turning in New Zealand. Built by one of Taiwan's original machine tool manufacturers, with over 50 years of experience in producing both CNC and high speed conventional lathes, Microweily machines are engineered for accuracy, reliability, and long service life. Designed to handle everything from intricate toolmaking to high volume production, these CNC lathes combine robust construction with advanced control systems for superior performance. Manufactured in Taiwan and trusted worldwide

Features

  • Three separate ways of operating this machine

Manual operation with DRO function

  • It is a lathe with DRO, auto tool change, CSS spindle speed when working manually.
  • It is a motion controller when performing semi-automatic operations.

Semi & Auto operation modes

  • Operations defined by symbolic keys. Inter graphic data entry.
  • Minimum preparation time.

Full CNC Auto operation

  • It is a CNC when carrying out automatic operations either created from conversational program or ISO G codes.
  • Automatic part repetition for lot work

Quality Taiwanese Manufacturing

  • Fagor 8055-TC Controller
  • Conversational Easy Programming
  • Solid Graphics Simulation
  • Hydraulic Auto 8 Station Turret
  • Automatic Headstock Gear Range Change
  • Semi Enclosed Guarding
  • 250mm Strong 3 Jaw Chuck

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Microweily TY-2060CNC
Swing over bed 510 mm
Swing over cross slide 280 mm
Spindle bore 86 mm
Spindle mount D1-8 camlock
Distance between centres 1500 mm
Spindle speeds 40 - 2,000 rpm
Bed width 370mm
Number of speed ranges 2
Number of tools 8 station auto turret
Tool size 25 x 25mm
Spindle motor power 10 HP / 7.5kW / 415v /3ph
Tailstock taper 5MT
Nett machine weight 2,600 kg

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.

0800 215 215 sales@scottmachinery.co.nz
Auckland · Christchurch · Nationwide support
Regarding Microweily TY-2060 CNC
