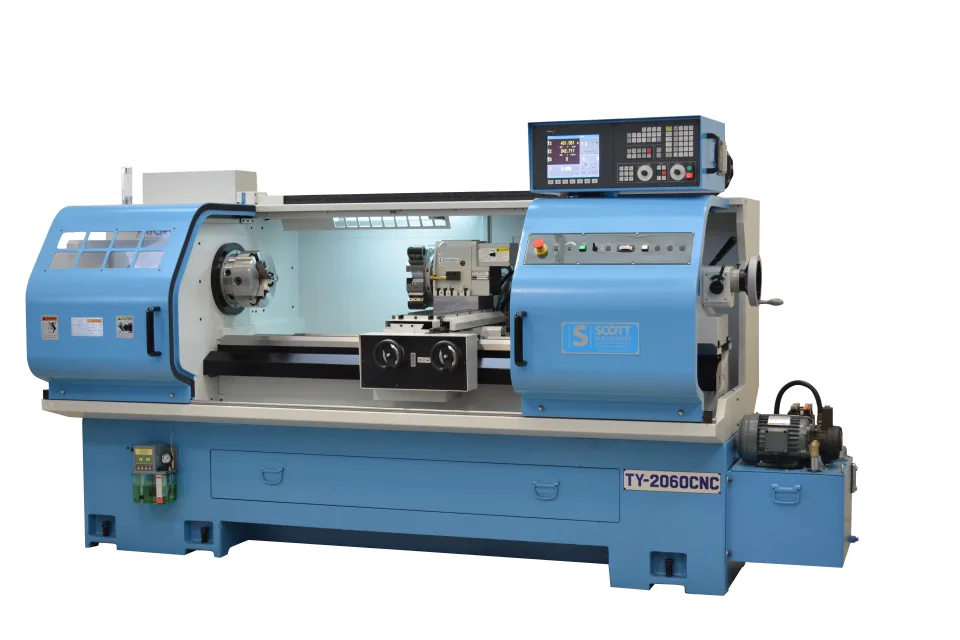

Microweily TY-2060 CNC Combination Manual / CNC Lathe
POA
CNC-0-2061 | Prices exclude GST
Product overview
About this machine.
The Microweily CNC lathe range sets the standard for precision turning in New Zealand. Built by one of Taiwan's original machine tool manufacturers, with over 50 years of experience in producing both CNC and high speed conventional lathes, Microweily machines are engineered for accuracy, reliability, and long service life. Designed to handle everything from intricate toolmaking to high volume production, these CNC lathes combine robust construction with advanced control systems for superior performance. Manufactured in Taiwan and trusted worldwide
Features
- Three separate ways of operating this machine
Manual operation with DRO function
- It is a lathe with DRO, auto tool change, CSS spindle speed when working manually.
- It is a motion controller when performing semi-automatic operations.
Semi & Auto operation modes
- Operations defined by symbolic keys. Inter graphic data entry.
- Minimum preparation time.
Full CNC Auto operation
- It is a CNC when carrying out automatic operations either created from conversational program or ISO G codes.
- Automatic part repetition for lot work
Quality Taiwanese Manufacturing

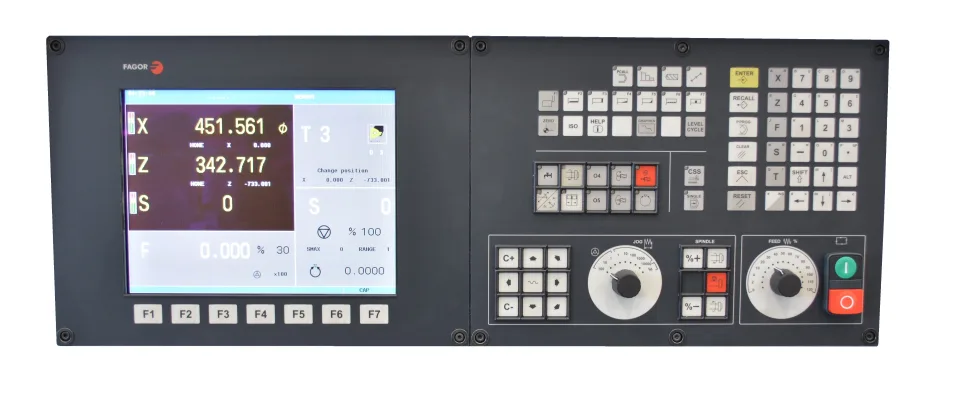

- Fagor 8055-TC Controller
- Conversational Easy Programming
- Solid Graphics Simulation

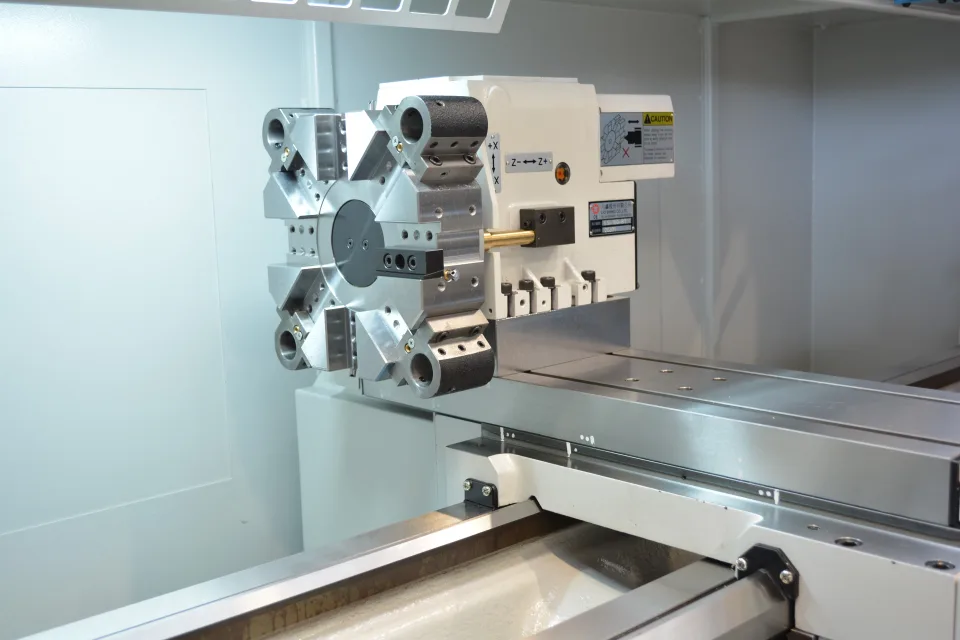

- Hydraulic Auto 8 Station Turret
- Automatic Headstock Gear Range Change
- Semi Enclosed Guarding
- 250mm Strong 3 Jaw Chuck
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Microweily
TY-2060CNC
Swing over bed
510 mm
Swing over cross slide
280 mm
Spindle bore
86 mm
Spindle mount
D1-8 camlock
Distance between centres
1500 mm
Spindle speeds
40 - 2,000 rpm
Bed width
370mm
Number of speed ranges
2
Number of tools
8 station auto turret
Tool size
25 x 25mm
Spindle motor power
10 HP / 7.5kW / 415v /3ph
Tailstock taper
5MT
Nett machine weight
2,600 kg
