CNC-1-1861

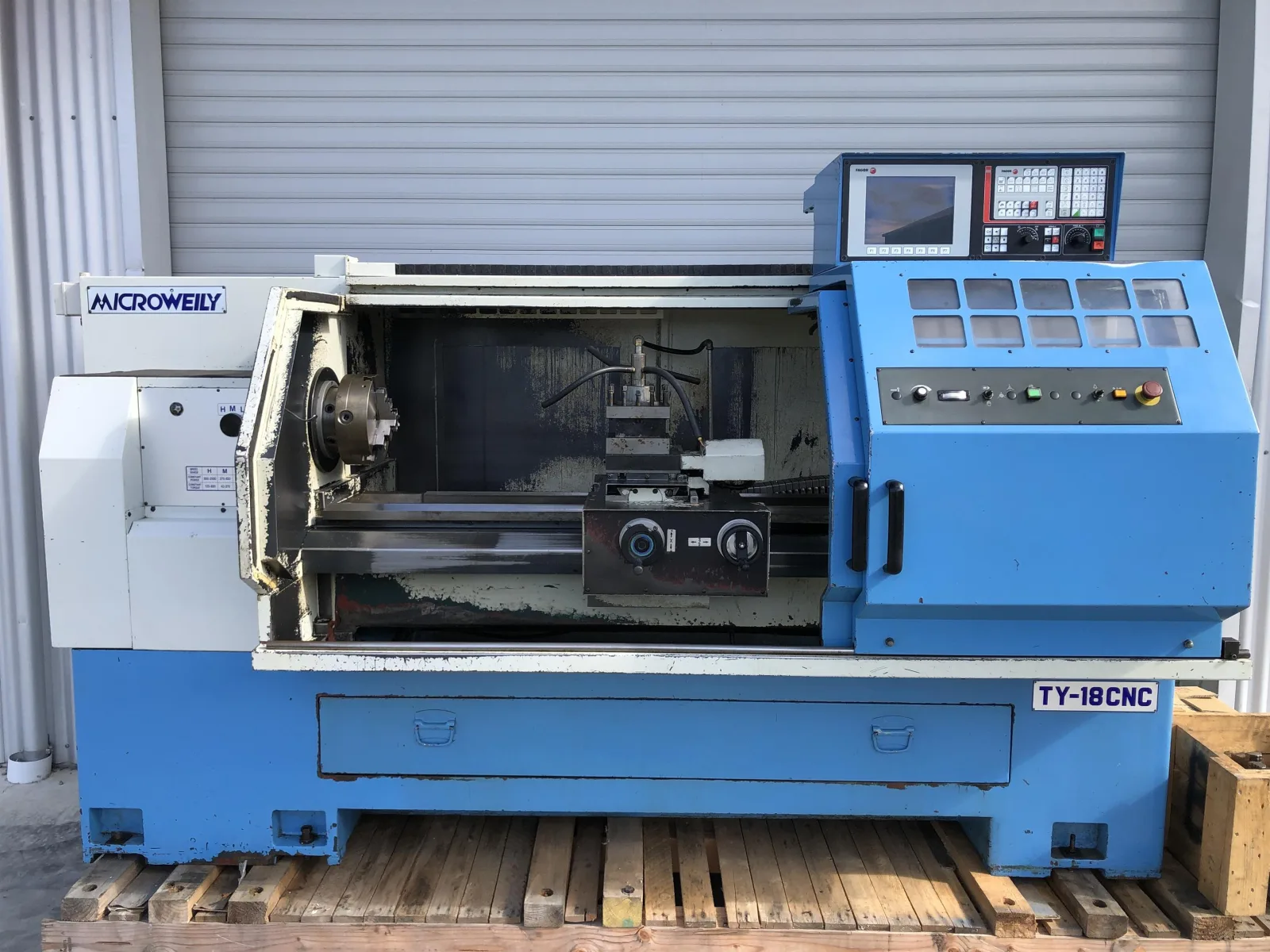

Microweily TY-1860CNC Used Teach CNC Lathe
460mm Swing x 1500mm Centres 60mm Bore
$29,999.00
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Swing over bed
460mm
Distance between centres
1500mm
Spindle bore
60mm
Microweily
TY-1860 CNC
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
Renowned Tiawannese quality CNC teach lathe. Good condition, runs well.
--We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch
Features
- Quality Taiwanese Manufacturing
- Fagor 8055-TC Control. RS232 port
- Conversational Easy Programming
- Solid Graphics Simulation
- 4 Station electric tool post
- Automatic Headstock Gear Change
- D1-6 camlock spindle
- Semi Enclosed Guarding
- Two speed tail stock
- Constant surface speed machining
- Slideway lubricating system
- Coolant system
- Work light
Accessories
- 250mm 3 jaw chuck
- 315mm 4 jaw chuck
- X6-C4 modular clamping units
- X27-C4 Capto tool holders
Machine video
See Microweily TY-1860CNC in operation.
Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.
Discuss your applicationPublished data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Microweily
TY-1860 CNC
Swing over bed
460mm
Swing over cross slide
230mm
Distance between centres
1500mm
Spindle bore
60mm
Spindle speeds
14 rpm to 2500 rpm
Tail stock taper
5 MT
Main motor
10 hp
Power supply
415 volts / 50 hz / 3 phase
Freighting details (L x D x H)
3900mm x 1400mm x 2200mm
Weight (approx)
3000 kg
Talk to Scott Machinery
Is this the right machine for your work?
Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
