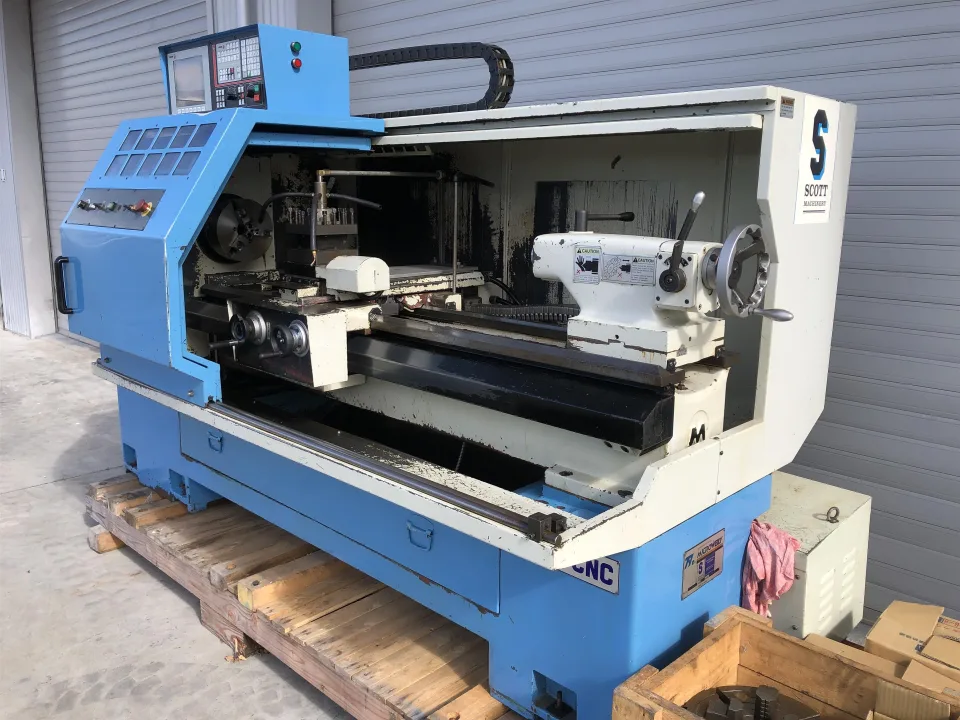

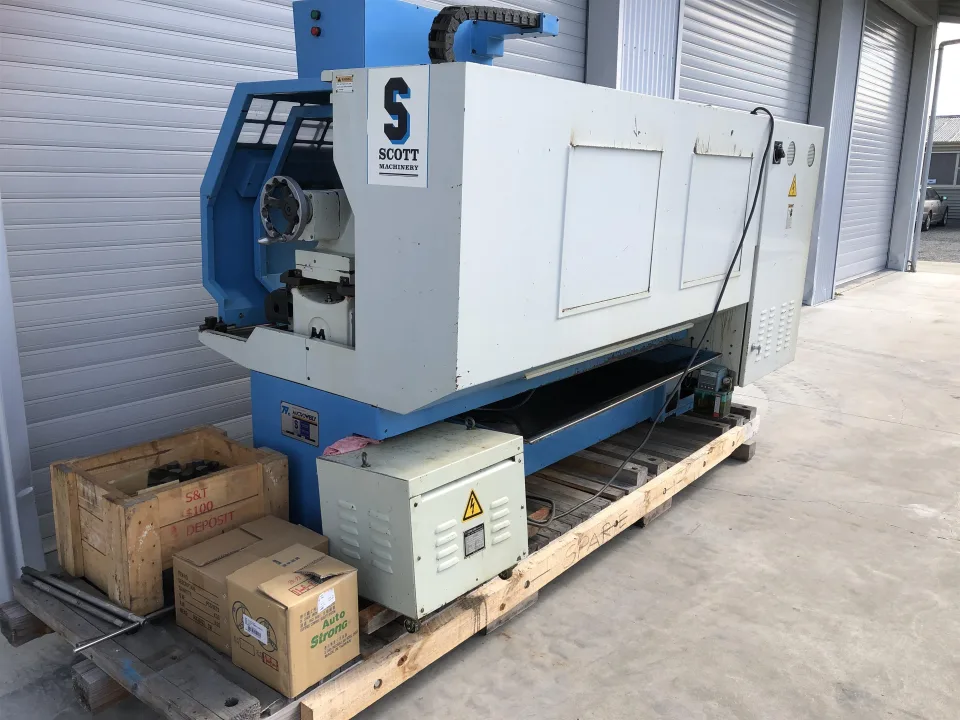

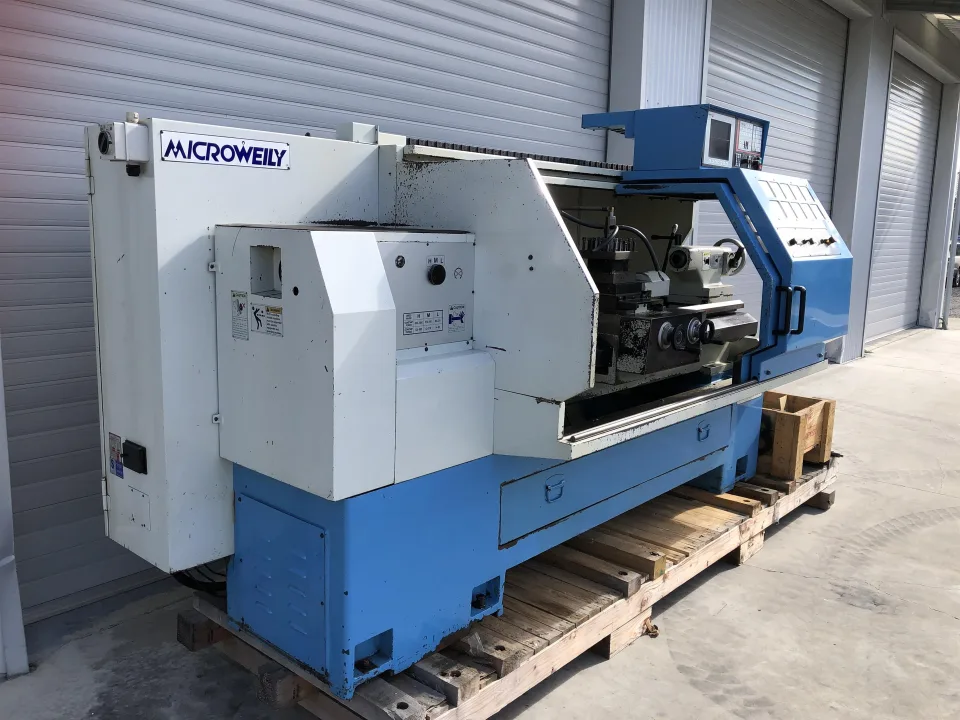

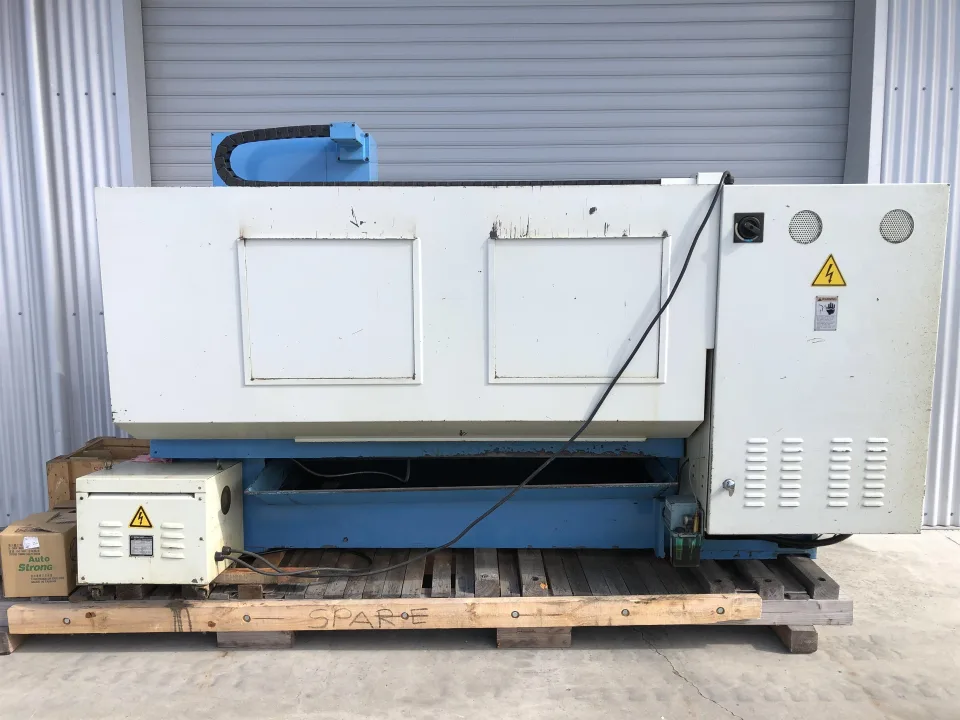

Microweily TY-1860CNC Used Teach CNC Lathe
c/w Fagor 8055-TC
$29,999.00
CNC-1-1861 | Prices exclude GST
Product overview
About this machine.
Renowned Tiawannese quality CNC teach lathe. Good condition, runs well.
--We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch
Features
- Quality Taiwanese Manufacturing
- Fagor 8055-TC Control. RS232 port
- Conversational Easy Programming
- Solid Graphics Simulation
- 4 Station electric tool post
- Automatic Headstock Gear Change
- D1-6 camlock spindle
- Semi Enclosed Guarding
- Two speed tail stock
- Constant surface speed machining
- Slideway lubricating system
- Coolant system
- Work light
Accessories
- 250mm 3 jaw chuck
- 315mm 4 jaw chuck
- X6-C4 modular clamping units
- X27-C4 Capto tool holders
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Microweily
TY-1860 CNC
Swing over bed
460mm
Swing over cross slide
230mm
Distance between centres
1500mm
Spindle bore
60mm
Spindle speeds
14 rpm to 2500 rpm
Tail stock taper
5 MT
Main motor
10 hp
Power supply
415 volts / 50 hz / 3 phase
Freighting details (L x D x H)
3900mm x 1400mm x 2200mm
Weight (approx)
3000 kg
