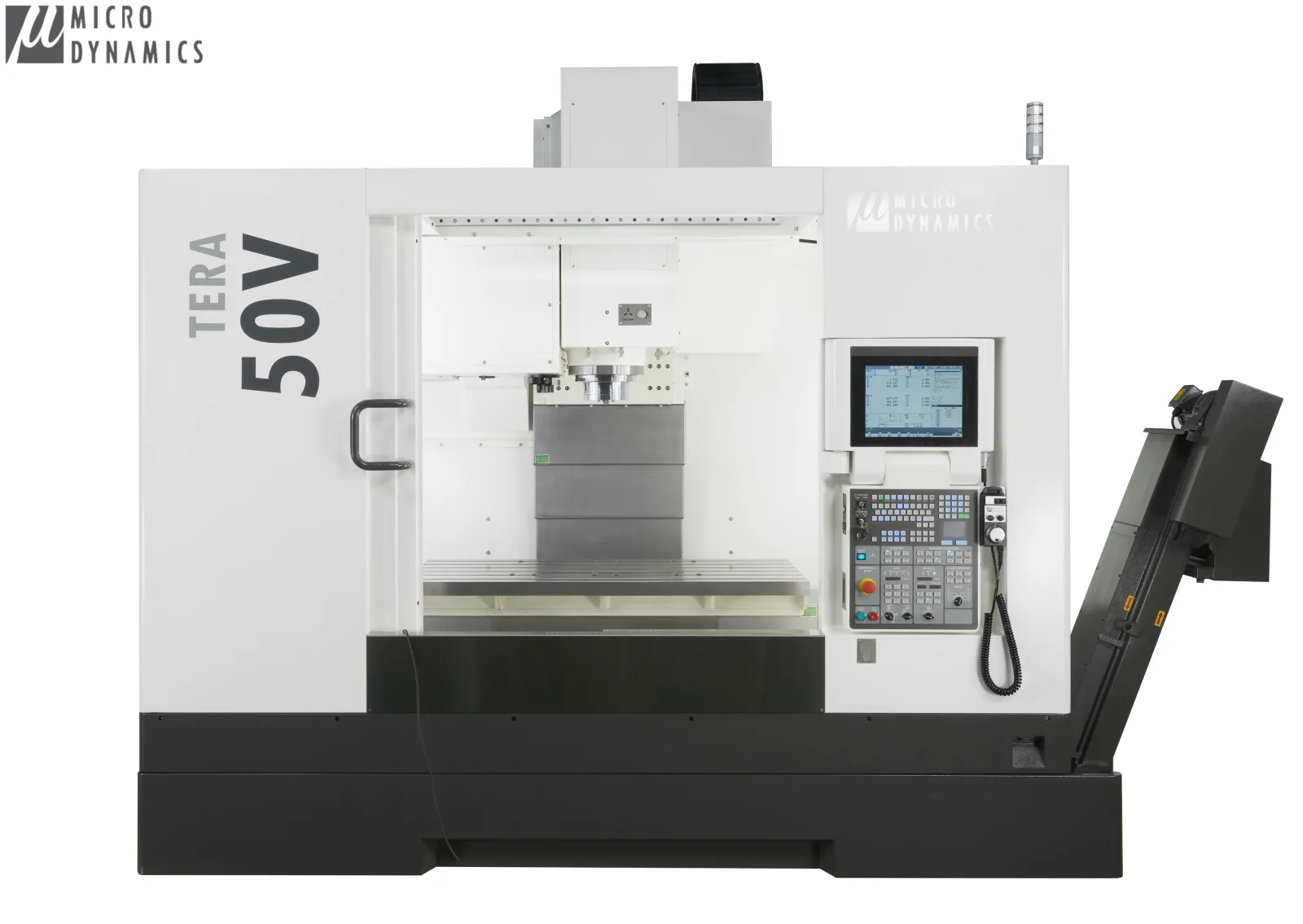

Micro Dynamics Tera 50V CNC Vertical Machining Centre

Heavy-duty vertical machining centre with 1,270 × 710 × 635 mm axis travel, a 1,420 × 700 mm table rated to 1,500 kg, and a 15,000 rpm BT40 dual-contact spindle.

Due in December Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

X-axis travel 1,270 mm
Y-axis travel 710 mm
Z-axis travel 635 mm
Table size 1,420 × 700 mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Micro Dynamics develops vertical machining centres around rigid machine structures, built-in spindle technology, thermal compensation and integrated chip management.\n\nThe Tera 50V combines a closed cast-iron structure with cross-roller linear guideways and preloaded ballscrews. Its 1,270 × 710 × 635 mm travel envelope and 1,500 kg table capacity support large, heavy components, while 52 m/min rapid traverse on the X and Y axes helps reduce non-cutting time.

Key features\nClosed cast-iron construction developed with finite-element analysis\nCross-roller linear guideways\nPreloaded ballscrews with heavy-duty support\nDYPEC thermal compensation\n15,000 rpm built-in BT40 dual-contact spindle\n52 m/min rapid traverse on the X and Y axes

Control and programming\nSiemens 828D control with ShopMill conversational programming\nprogramGUIDE and ISO programming\n3D solid graphics simulation\nAdvanced Surface technology for high-speed 3D surfaces\nEthernet, CF card, USB and RS-232 connectivity

Standard equipment\n15-inch touchscreen display and Micro Dynamics HMI\n40-tool magazine\nAutomatic power off\nCTS preparation without rotary union\nCoolant gun and air gun\nScraper-type chip conveyor and twin chip augers\nFull chip enclosure and safety door\nManuals, tool kit and foundation kit

Configured package recorded in ERP\nSpindle cooler, spindle purge and spindle air blast\nFour-jet spindle coolant ring and programmable air blow\nBase-wash coolant system and coolant gun\nOil skimmer\nChain-type chip conveyor and bucket\nFourth-axis preparation and pre-wiring

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
X-axis travel 1,270 mm
Y-axis travel 710 mm
Z-axis travel 635 mm
Table size 1,420 × 700 mm
Maximum table load 1,500 kg
Spindle nose-to-table range 100–735 mm
Spindle centre to column front 733.5 mm
Table height 900 mm
Spindle taper BT40 dual-contact
Spindle bearing inside diameter Ø70 mm
Spindle speed range 50–15,000 rpm
Maximum spindle power 31 kW
Maximum cutting torque 141 N·m
Maximum rigid-tapping speed 6,000 rpm
Tool magazine capacity 40 tools
Tool shank JIS6339 (BT40) / DIN69871 (DIN40)
Pull stud JIS6339 / DIN69872
Maximum tool diameter × length Ø75 × 300 mm
Maximum tool diameter without adjacent tool Ø150 mm
Maximum tool weight 7 kg
X-axis rapid traverse 52 m/min
Y-axis rapid traverse 52 m/min
Z-axis rapid traverse 48 m/min
Cutting feed range 0–20 m/min
Positioning accuracy over full stroke 0.005 (VDI 3441) mm
Repeatability 0.0025 mm
Power consumption (220 V, 3-phase) 40 kVA
Pneumatic supply at 0.6 MPa 300 L/min
Coolant tank capacity 400 L
Machine footprint (W × D) 3,606 × 2,478 mm
Machine height 2,953 mm
Machine net weight 8,600 kg
Packed dimensions (W × D × H) 4,100 × 2,310 × 2,550 mm
Machine gross weight 8,890 kg
