Micro Dynamics Tera 50V CNC Vertical Machining Centre
Due in December
CNC-0-6550 | Prices exclude GST
Product overview
About this machine.

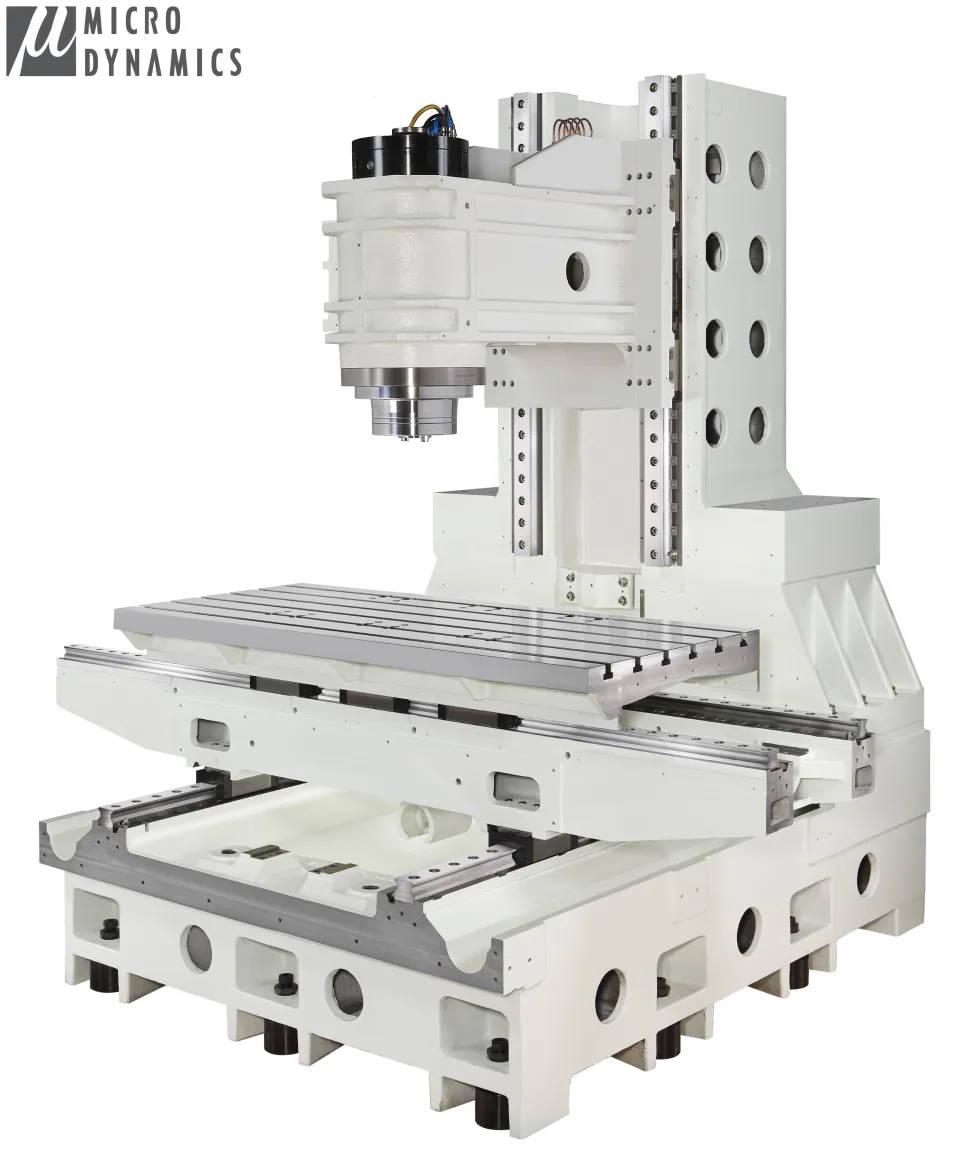

Micro Dynamics develops vertical machining centres around rigid machine structures, built-in spindle technology, thermal compensation and integrated chip management.\n\nThe Tera 50V combines a closed cast-iron structure with cross-roller linear guideways and preloaded ballscrews. Its 1,270 × 710 × 635 mm travel envelope and 1,500 kg table capacity support large, heavy components, while 52 m/min rapid traverse on the X and Y axes helps reduce non-cutting time.

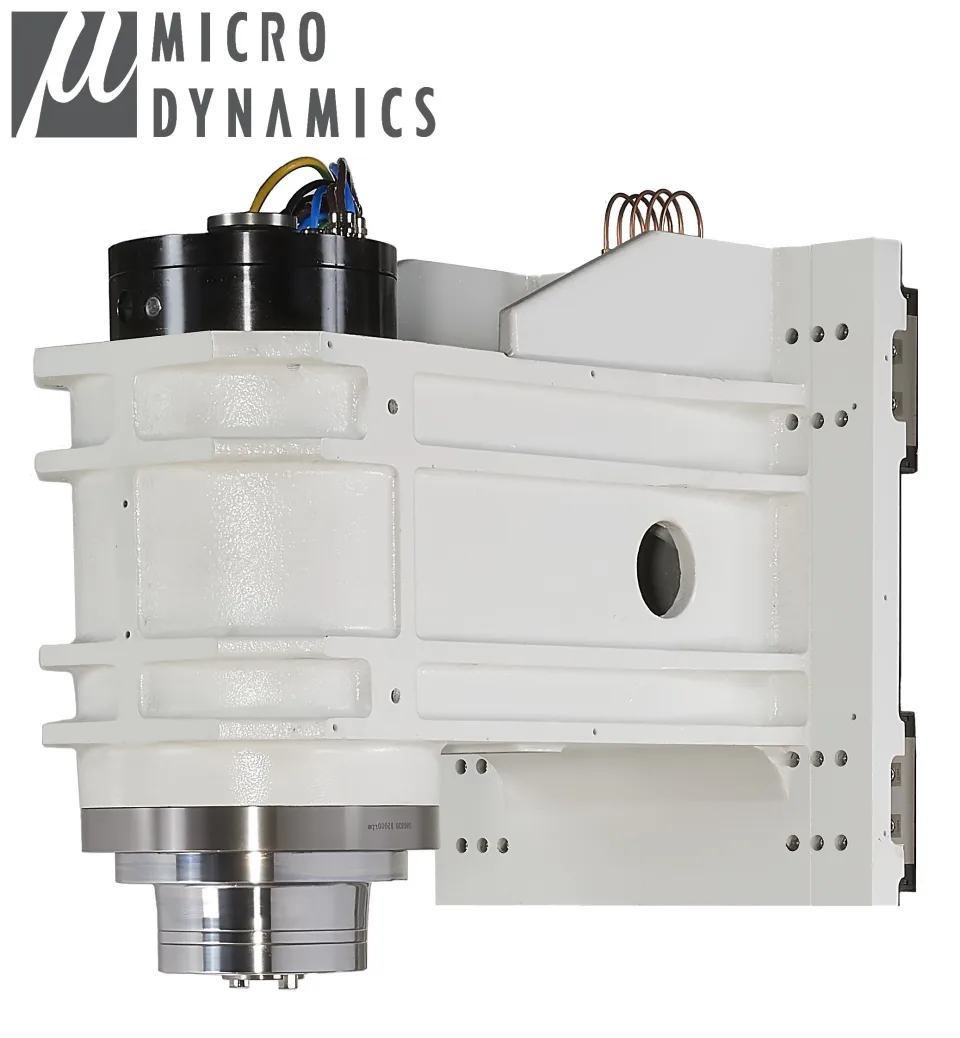

Key features\nClosed cast-iron construction developed with finite-element analysis\nCross-roller linear guideways\nPreloaded ballscrews with heavy-duty support\nDYPEC thermal compensation\n15,000 rpm built-in BT40 dual-contact spindle\n52 m/min rapid traverse on the X and Y axes
Control and programming\nSiemens 828D control with ShopMill conversational programming\nprogramGUIDE and ISO programming\n3D solid graphics simulation\nAdvanced Surface technology for high-speed 3D surfaces\nEthernet, CF card, USB and RS-232 connectivity
Standard equipment\n15-inch touchscreen display and Micro Dynamics HMI\n40-tool magazine\nAutomatic power off\nCTS preparation without rotary union\nCoolant gun and air gun\nScraper-type chip conveyor and twin chip augers\nFull chip enclosure and safety door\nManuals, tool kit and foundation kit
Configured package recorded in ERP\nSpindle cooler, spindle purge and spindle air blast\nFour-jet spindle coolant ring and programmable air blow\nBase-wash coolant system and coolant gun\nOil skimmer\nChain-type chip conveyor and bucket\nFourth-axis preparation and pre-wiring
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
X-axis travel
1,270 mm
Y-axis travel
710 mm
Z-axis travel
635 mm
Table size
1,420 × 700 mm
Maximum table load
1,500 kg
Spindle nose-to-table range
100–735 mm
Spindle centre to column front
733.5 mm
Table height
900 mm
Spindle taper
BT40 dual-contact
Spindle bearing inside diameter
Ø70 mm
Spindle speed range
50–15,000 rpm
Maximum spindle power
31 kW
Maximum cutting torque
141 N·m
Maximum rigid-tapping speed
6,000 rpm
Tool magazine capacity
40 tools
Tool shank
JIS6339 (BT40) / DIN69871 (DIN40)
Pull stud
JIS6339 / DIN69872
Maximum tool diameter × length
Ø75 × 300 mm
Maximum tool diameter without adjacent tool
Ø150 mm
Maximum tool weight
7 kg
X-axis rapid traverse
52 m/min
Y-axis rapid traverse
52 m/min
Z-axis rapid traverse
48 m/min
Cutting feed range
0–20 m/min
Positioning accuracy over full stroke
0.005 (VDI 3441) mm
Repeatability
0.0025 mm
Power consumption (220 V, 3-phase)
40 kVA
Pneumatic supply at 0.6 MPa
300 L/min
Coolant tank capacity
400 L
Machine footprint (W × D)
3,606 × 2,478 mm
Machine height
2,953 mm
Machine net weight
8,600 kg
Packed dimensions (W × D × H)
4,100 × 2,310 × 2,550 mm
Machine gross weight
8,890 kg
