Metalex G1250x1.5 Pnuematic Shear
1 / 2
Metalex logo GMEC-0-1350

Sheet Metal & Fabrication · Guillotines

Metalex G1250x1.5 Pnuematic Shear

1250 x 1.5mm Guillotine

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Capacity 1.5mm 16ga
Width 1320mm
Back gauge 750mm
Front gauge 535mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Metalex is a trusted name in metalworking machinery and tooling, known for offering reliable performance, practical design, and outstanding value. Engineered to meet the demands of workshops, fabricators, and light industrial environments, the Metalex range includes equipment such as presses, guillotines, bandsaws, folders, and roll formers. Built with a focus on durability and ease of use, Metalex machines are well regarded for their solid construction and dependable operation across a wide range of applications

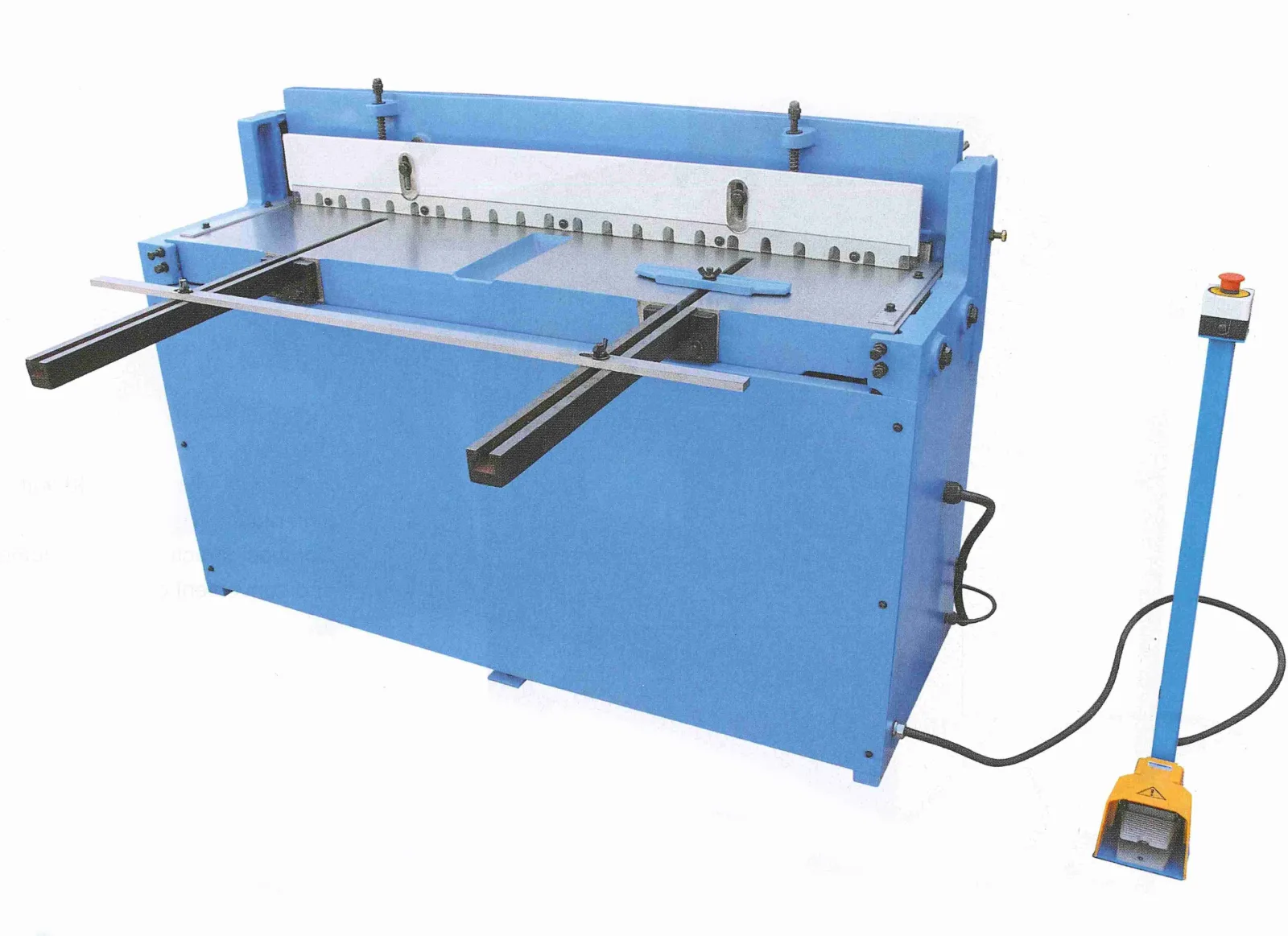

The Metalex G1250 x 1.5 pneumatic shear is a heavy duty, pedal operated guillotine shear designed for clean, precise cutting of sheet metal up to 1.5 mm thick. With a generous 1,250 mm cutting width, this shear is ideal for workshops, fabrication shops, and educational facilities handling mild steel, aluminium, brass, or plastics. Its pneumatic and pedal operation leaves hands free for safe material positioning, while a solid cast frame and high-quality ground blades ensure durability and consistent results. The integrated back gauge allows for repeatable cuts, making it perfect for light production work and accurate shearing in confined spaces.

Features:

  • 1,250 mm maximum cutting width
  • Cuts mild steel up to 1.5 mm thick
  • Low cutting angle
  • Pedal operated pneumatic operated design for hands free operation
  • High quality, precision ground blades for clean, accurate cuts
  • Solid cast frame for rigidity and long service life
  • Adjustable back gauge with fine adjustment for repeatable cutting
  • Pneumatic cylinder operated for smooth and controlled action
  • Front sheet supports and side guides (both sides) for material alignment
  • Ideal for mild steel, aluminium, brass, and plastic sheet
  • Two 350mm front support arms
  • Compact, "workshop friendly" footprint, single phase required for the "e" stop and pneumatic system to operate.

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Capacity 1.5mm 16ga
Width 1320mm
Back gauge 750mm
Front gauge 535mm
Number of strokes per minute 30
Maximum air pressure 85 - 100 PSI
Air consumption per stroke 1.4 cfm
Machine nett weight 550 kg
Shipping dimensions approx 1700 x 800 x 1200mm (620 kg)
