LUXCUT GMV2500x3.2 Mechanical Guillotine
1 / 6
LUXCUT logo GMEC-0-3820

Sheet Metal & Fabrication · Guillotines

LUXCUT GMV2500x3.2 Mechanical Guillotine

Electro Mechanical Operation Motorised digital back gauge

$19,990.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Shearing Thickness 3.2mm Mild Steel
Shearing length 2500mm
Shearing angle 1 Deg 18 mins
Strokes per minute 47min-1
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks

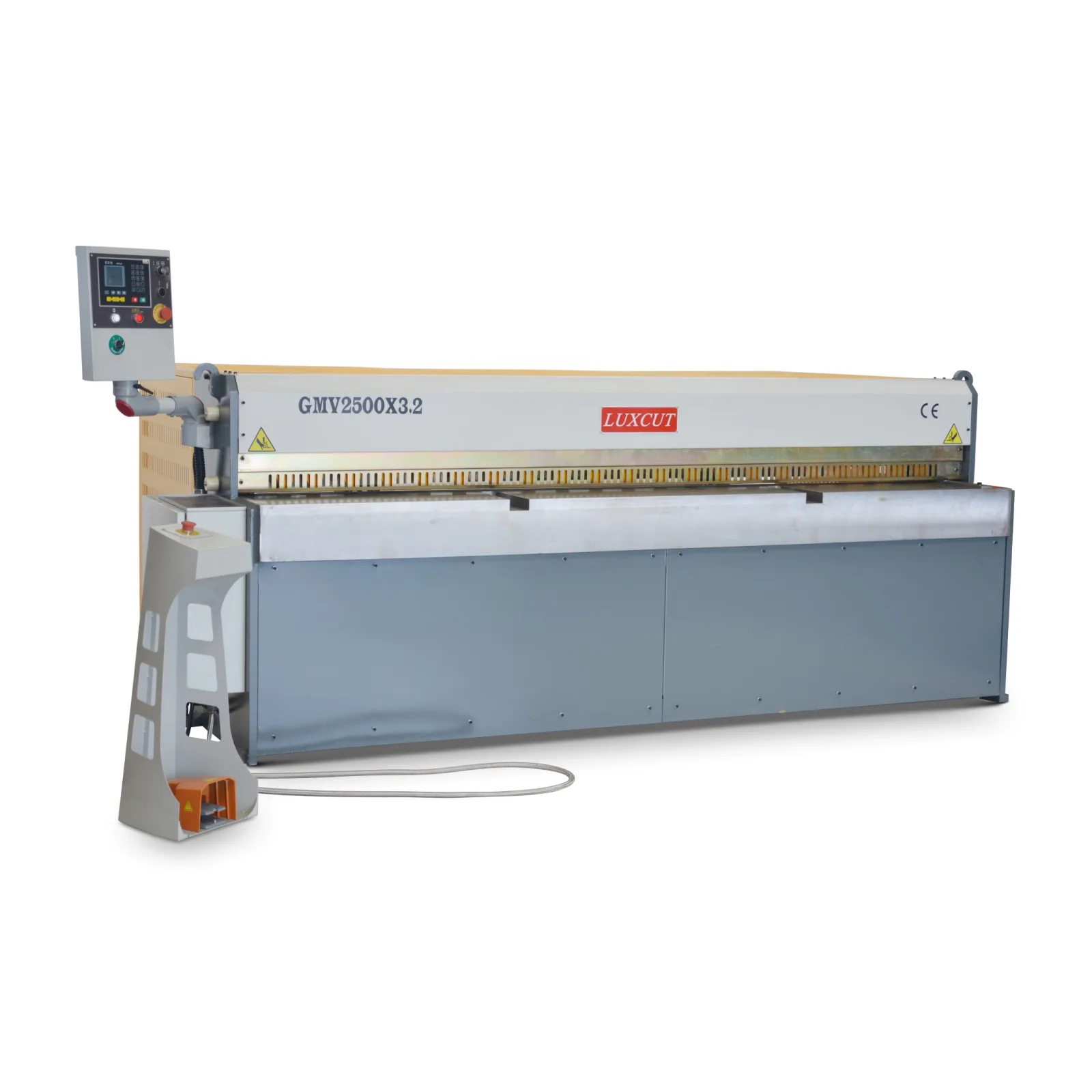

The LUXCUT GMV 2500x3.2 is a Mechanical Shearing Machine with a brake motor driving through a shaft-mounted speed reduction unit. It is controlled by a Selector switch for single or continuous strokes provides quiet instantaneous engagement. Different from the traditional driving method of mechanical shearer, its one of the most advanced miniature mechanical shearers. The low cutting angle and inclined shear direction reduces bowing and twist to a minimum. Blade clearance is easily set by a manually operated Quick Set device. It is an Ideal true cut machining equipment of sheet metal and non-ferrous sheet metal.

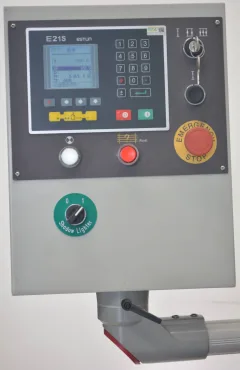

The Estun E21 NC back gauge controller allows the user to simply enter the cut length into the controller & then the machine back gauge goes to that setting for cutting. The NC control saves much time in measuring & can be simply programmed for multi-step programming in a sequence of multiple cut lengths (up to 39 steps). The multiple-step programmes can be saved for repetitive or recurring jobs.

Features:

  • Electro mechanical shear for reliable, precise cutting
  • Electro braked motor with reduction gearbox for smooth and controlled operation
  • E21S NC programmable digital back gauge for accurate, repeatable cuts
  • Fully enclosed modern compact styling for a clean and safe footprint
  • Rear guarding with light beam protection to enhance operator safety
  • Remote foot control with emergency stop for convenient and safe operation
  • Front arm supports plus squaring arm for accurate material handling
  • Continuous stroke mode for efficient repetitive cutting
  • Siemens electrics ensuring dependable and robust electrical control
  • Blade gap adjustment by dial for precise cutting clearance
  • Shadow line lighting for clear cutting line visibility

Safety features:

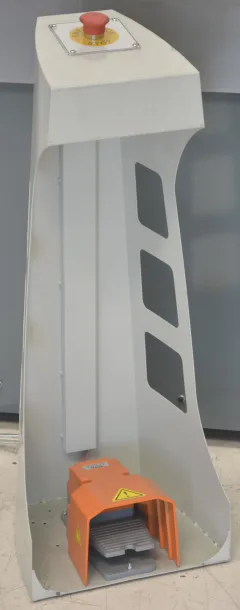

  • Remote foot control pedal with emergency stop
  • Two latching emergency stop buttons
  • Blade protection guard
  • Fixed guarding with latching photoelectric safety beams
  • Main isolation switch with lockout

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Shearing Thickness 3.2mm Mild Steel
Shearing length 2500mm
Shearing angle 1 Deg 18 mins
Strokes per minute 47min-1
Back gauge range 0-650mm
Height of table 800mm
Motor 7.5kw, 3 Phase
Weight 2200kg
Machine dimensions (L x D x H) 3124mm x 2210mm x 1180mm (2300kg)

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
