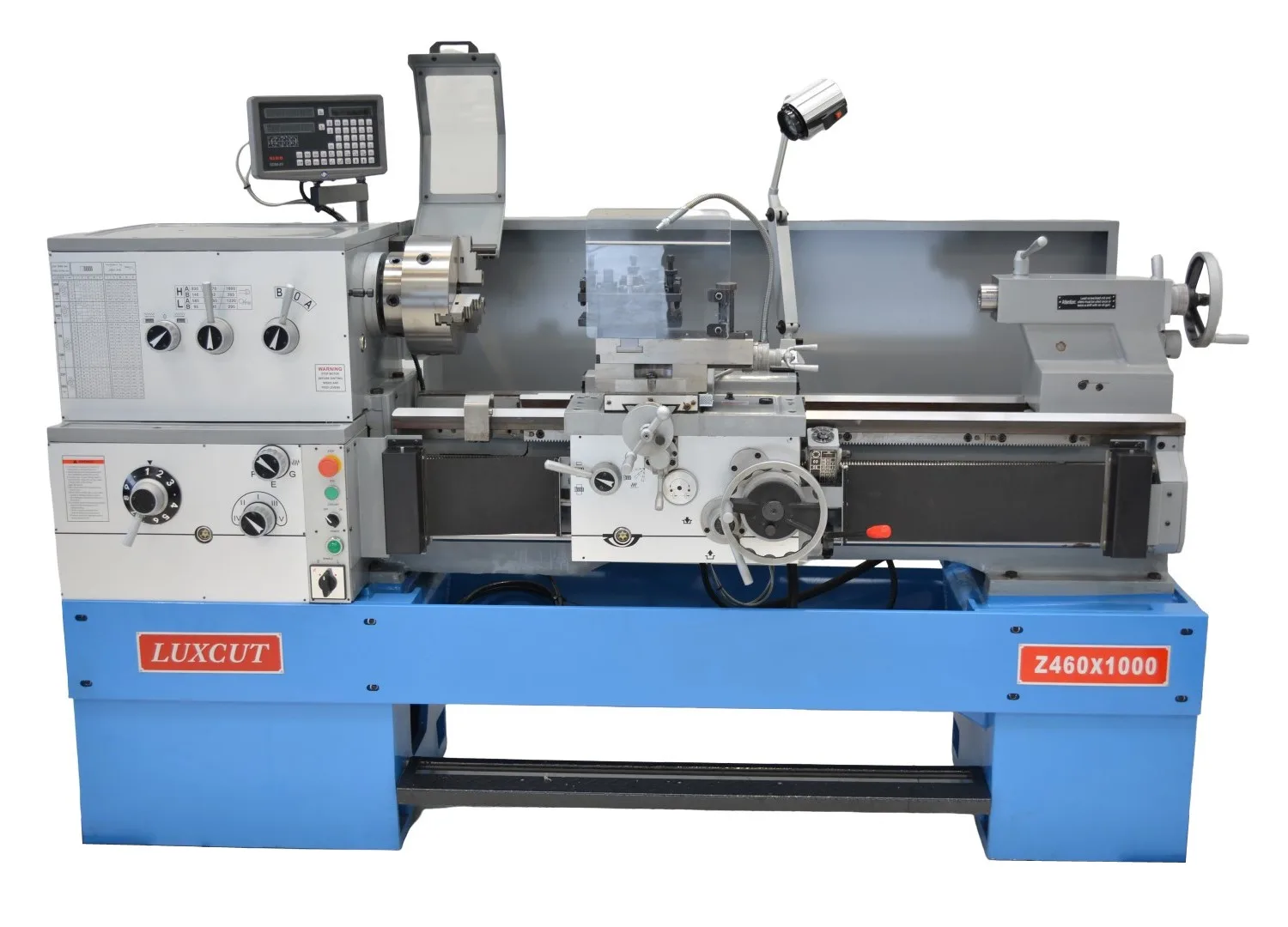

Luxcut Z460 x 1000 Centre Lathe

460mm swing x 1000mm centres x 52mm bore 415V.

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Swing over bed 460mm
Spindle bore 52mm
Swing over carriage 250mm
Swing in gap 660mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks

The Luxcut Z460 x 1000 is a precision lathe built for accuracy and reliability in general engineering and production work. With a 460 mm swing, 1,000 mm between centres and a 52 mm spindle bore, it offers excellent capacity for a wide range of turning tasks. A 12-speed geared headstock (40 1,500 rpm), hardened bedways, and comprehensive threading options make it versatile and durable, while its rigid cast-iron construction ensures long service life. We have evaluated many similar machines from the international market and have chosen this machine as we believe it represents good value for money. We visit the manufacturer annually. The main purpose of these visits is to evaluate new machine opportunities, and most importantly to ensure that the manufacturing facilities of the selected machine tool company we have chosen continue to produce machines that satisfy our criteria and have sales and technical service support and ex stock availability of spare parts.

Features:

  • Cast iron base for rigidity and stability
  • Gap bed design allowing clearance for larger diameter workpieces
  • Geared headstock drive providing smooth and precise power transmission
  • Powerful 5 HP main motor for robust performance
  • D1-6 Camlock spindle for secure and efficient chuck changes
  • Clutch in apron for seamless feed and spindle engagement
  • Enclosed feed box to protect gears and maintain accuracy
  • Right-hand carriage wheel for comfortable manual operation
  • Induction hardened and precision ground bedways for long-term accuracy

Standard Accessories:

  • 3 Jaw chuck 250mm
  • 4 Jaw chuck 310mm
  • Faceplate 410mm
  • Fixed Steady rest
  • Travelling Steady
  • Quick change tool post (Italian style size B) holds 25 x 25 tools
  • Rear splash guard
  • LED lamp
  • Coolant equipment
  • Bed stop
  • Toolbox
  • 2 Axis SINO Digital Readout System fitted

Safety features:

  • Latching emergency stop button
  • Chuck guard complete with microswitch
  • Fixed guarding
  • Curtain-type lead screw protection to prevent damage from debris
  • Tool post protection for operator safety and tooling longevity
  • Main isolation switch
  • Mechanical foot brake

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Swing over bed 460mm
Swing over carriage 250mm
Swing in gap 660mm
Spindle bore 52mm
Width of bed 335mm
Distance between centers 1000mm
Number of spindle speeds 12
Spindle speeds 40 - 1,800 RPM

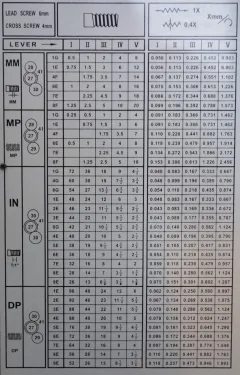

Thread range 0.5 - 20mm / 1 5/8 - 72TPI
Tailstock taper 4MT
Main motor 4kW (5hp) 3 phase
Weight 1922kg
Floor space 2104 x 1000 x 1200mm
Shipping 2,020kg, 2.54m3
