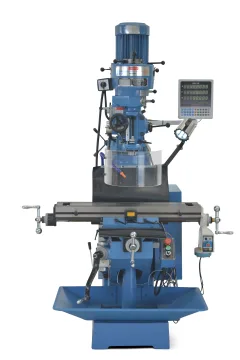

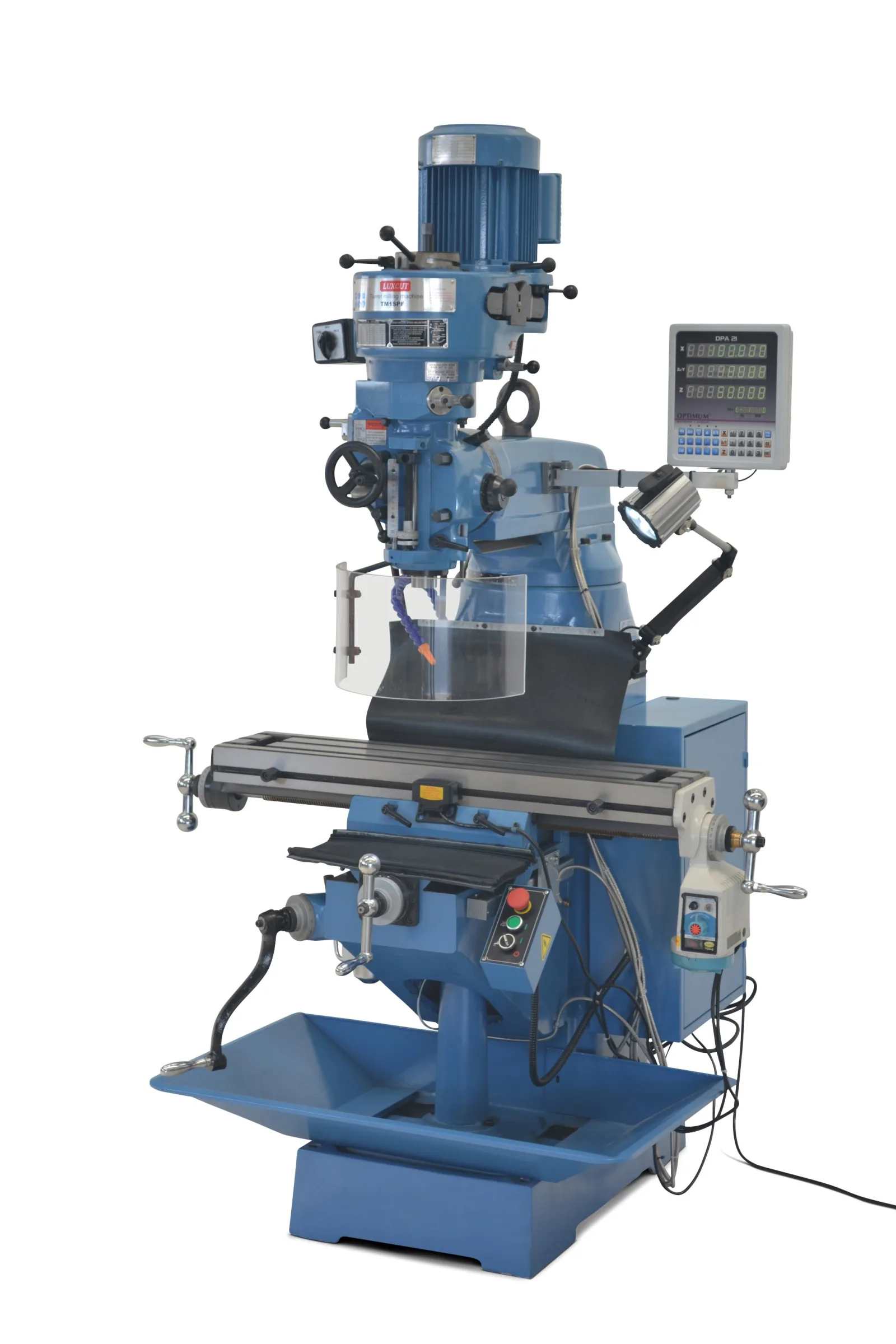

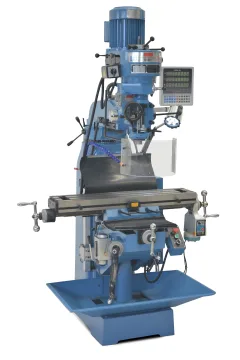

Luxcut TM-1SPF Turret Mill

Powerfeed to quill, 3 Axis digital readout & table power feed fitted

On Order Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Model TM-1SPF
Table size 910mm x 200mm
Longitudinal travel of table 600mm (*530mm)
Cross travel of table 240mm (*230mm)
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

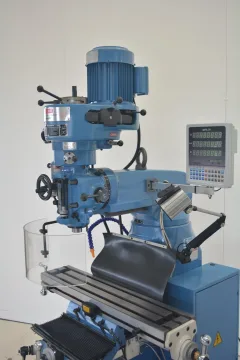

The Luxcut TM1SPF single phase turret mill is fitted with a belt drive head with 4 belt steps. Inside the milling head it has high/low gear giving it a further 4 speeds which can easily be changed by lever.

Standard features:

  • Powerfeed to quill
  • Meehanite casting
  • Siemens electrical components
  • Stepped head belt drive
  • Hardened slideways
  • Centralised lubrication
  • Head tilts +/- 90 degrees
  • Locks on all axis
  • FWD & REV spindle control
  • Spindle brake with microswitch
  • Adjustable quill stop
  • Spindle guard with safety switch

Standard accessories:

  • Electronic power feed on X-Axis
  • Coolant system with bottom splash tray
  • LED double arm work lamp
  • Fitted with the latest Optimum 3 axis digital readout system

*indicates travels with DRO & table powerfeed fitted--

  • Note: Supplied with 15AMP 3 pin plug & heavy duty 1.5m cable. Customer will need 15AMP socket

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model TM-1SPF
Table size 910mm x 200mm
Longitudinal travel of table 600mm (*530mm)
Cross travel of table 240mm (*230mm)
Spindle nose to table 360mm
Ram travel 300mm
Quill travel 127mm
Quill diameter 86mm
Quill feeds 0.045 / 0.086 / 0.142 rev/min
Spindle speeds 67 - 2,300 rpm (8 steps)
Spindle taper NT30 or R8 on request
T-slot size 16mm
Motor power 2.2kW 3HP 1 Phase 230v
Weight 930kg
Floor space 1400 x 1300 x 1900
Shipping 5m3 1000kg
