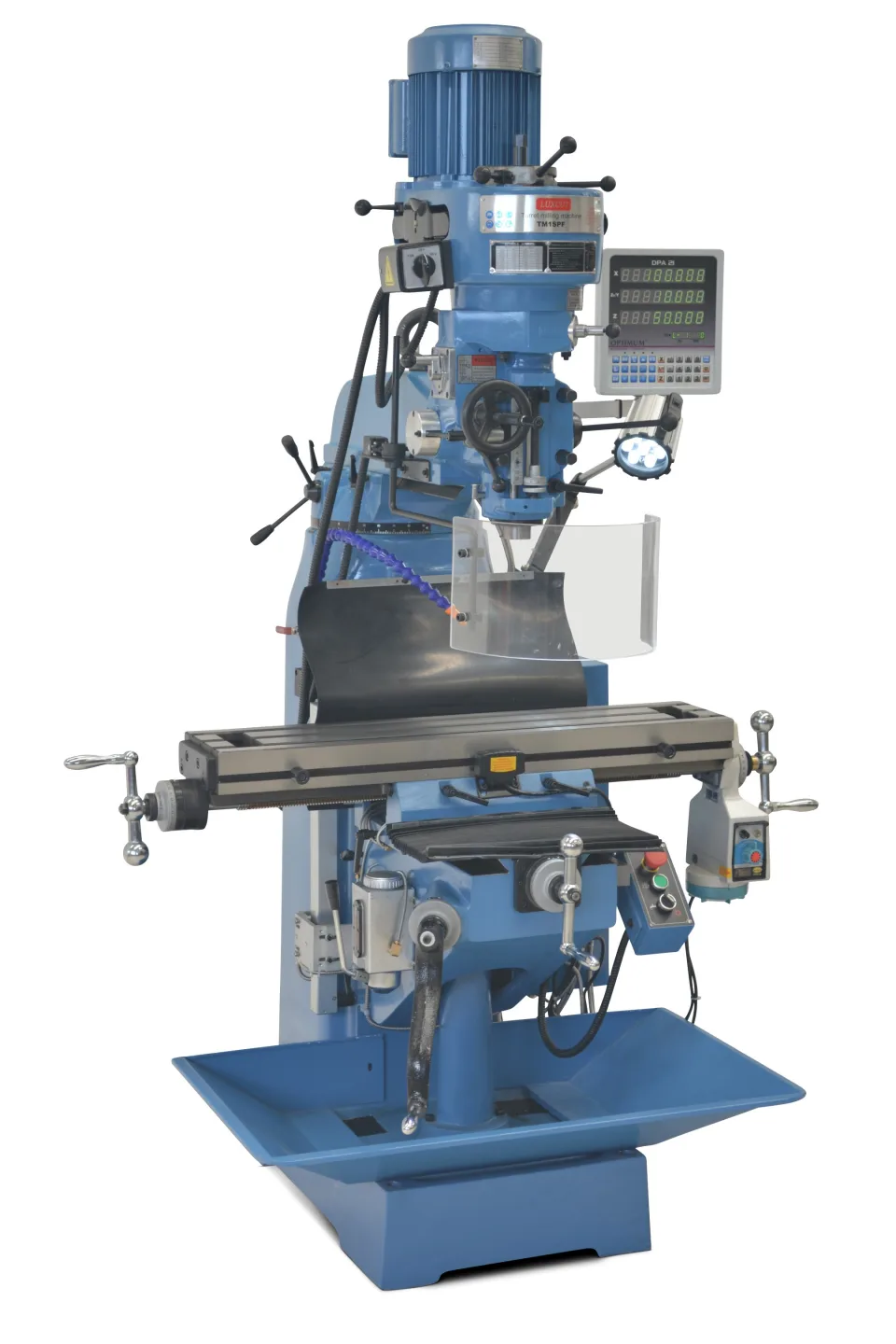

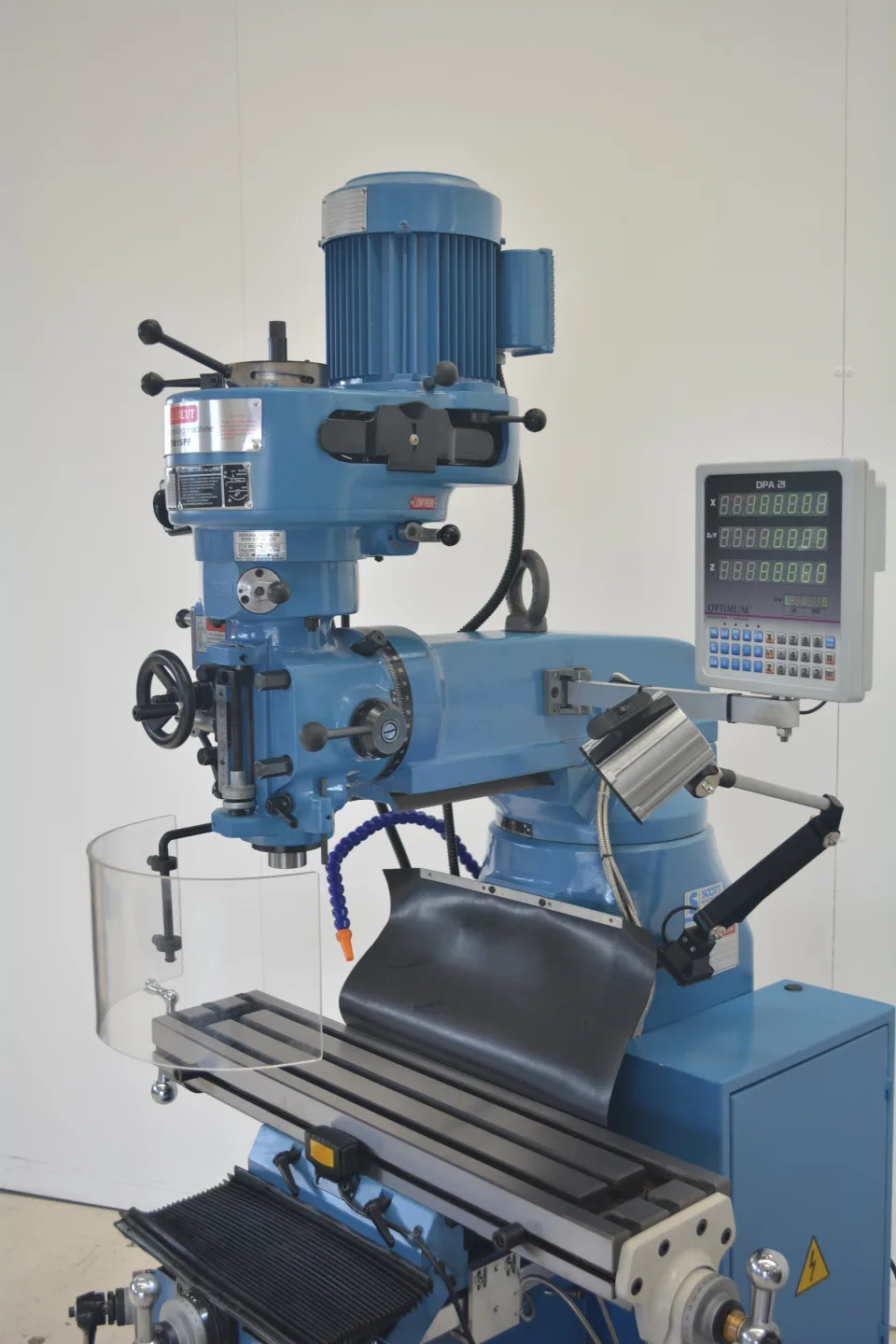

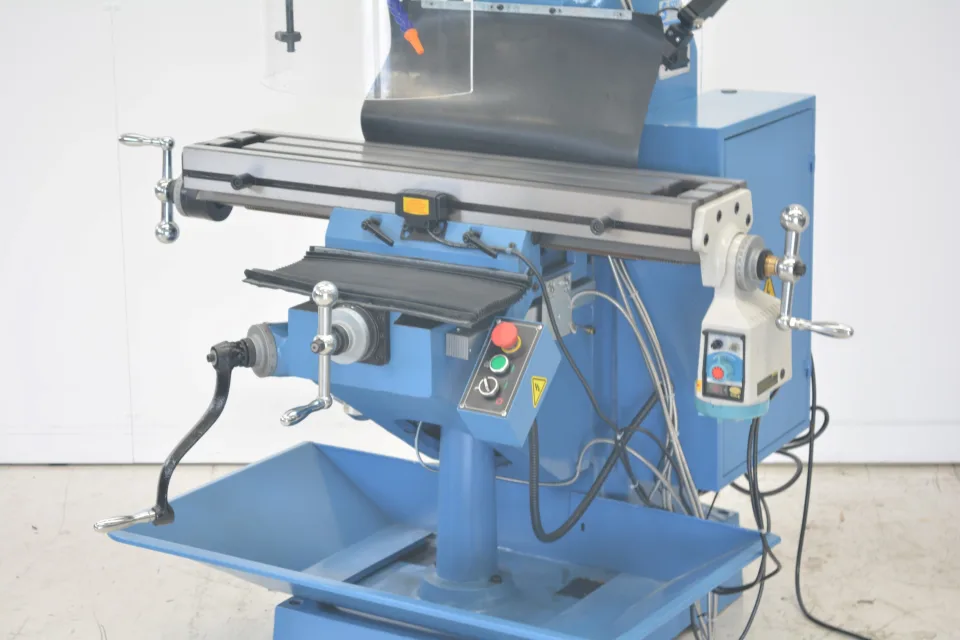

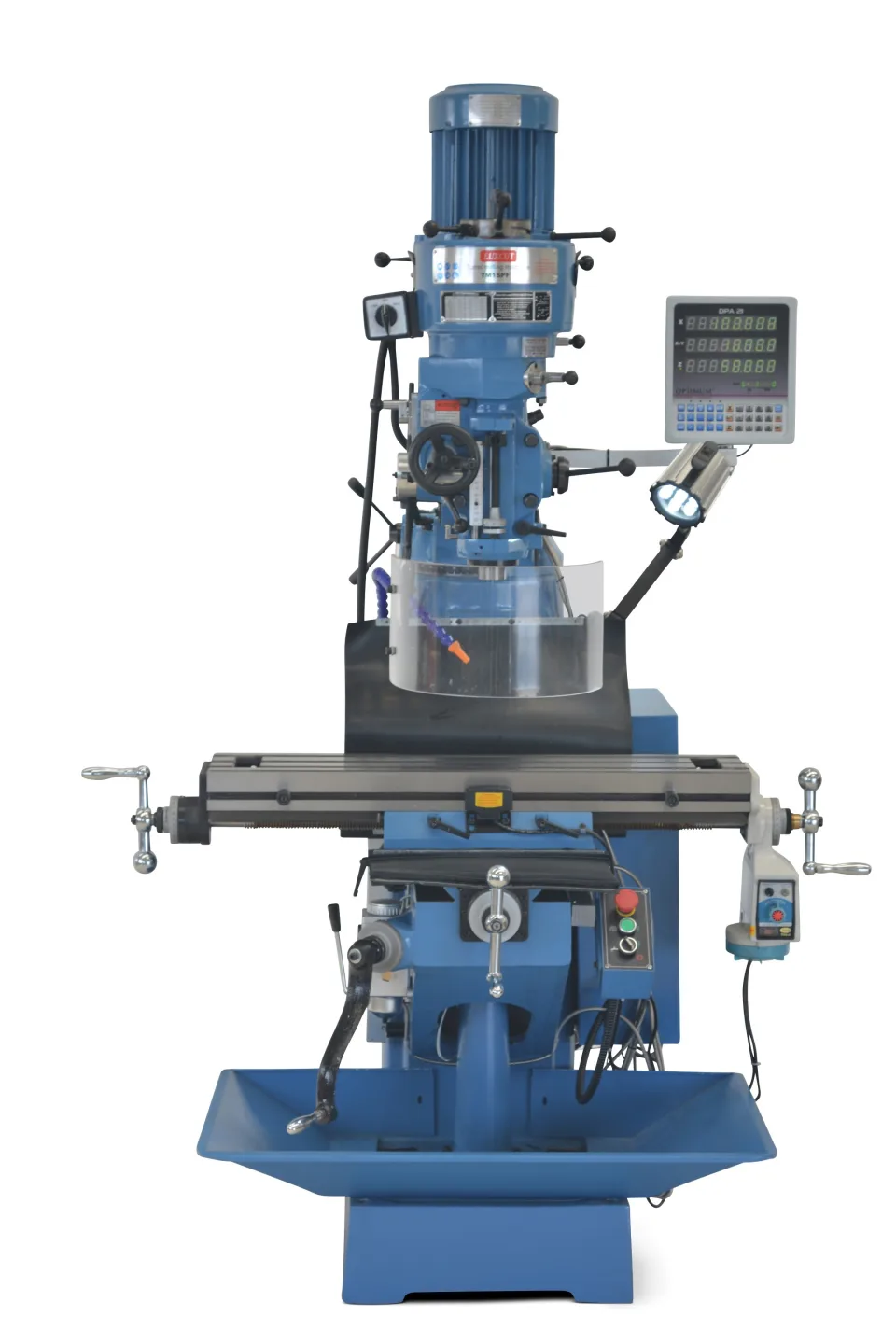

Luxcut TM-1SPF Turret Mill
c/w 3 Axis DRO, Power feed, 230v
On Order
MTUR-0-0000 | Prices exclude GST
Product overview
About this machine.
The Luxcut TM1SPF single phase turret mill is fitted with a belt drive head with 4 belt steps. Inside the milling head it has high/low gear giving it a further 4 speeds which can easily be changed by lever.
Standard features:
- Powerfeed to quill
- Meehanite casting
- Siemens electrical components
- Stepped head belt drive
- Hardened slideways
- Centralised lubrication
- Head tilts +/- 90 degrees
- Locks on all axis
- FWD & REV spindle control
- Spindle brake with microswitch
- Adjustable quill stop
- Spindle guard with safety switch
Standard accessories:
- Electronic power feed on X-Axis
- Coolant system with bottom splash tray
- LED double arm work lamp
- Fitted with the latest Optimum 3 axis digital readout system
*indicates travels with DRO & table powerfeed fitted--
- Note: Supplied with 15AMP 3 pin plug & heavy duty 1.5m cable. Customer will need 15AMP socket
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
TM-1SPF
Table size
910mm x 200mm
Longitudinal travel of table
600mm (*530mm)
Cross travel of table
240mm (*230mm)
Spindle nose to table
360mm
Ram travel
300mm
Quill travel
127mm
Quill diameter
86mm
Quill feeds
0.045 / 0.086 / 0.142 rev/min
Spindle speeds
67 - 2,300 rpm (8 steps)
Spindle taper
NT30 or R8 on request
T-slot size
16mm
Motor power
2.2kW 3HP 1 Phase 230v
Weight
930kg
Floor space
1400 x 1300 x 1900
Shipping
5m3 1000kg
