LUXCUT GHS4000NCx10 Swing Beam Hydraulic NC Guillotine

Heavy duty swing beam shear with programmable NC backgauge

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Shearing capacity 1mm - 10mm mild steel
Shearing width 4000mm
Shearing angle 1.3 degrees
Strokes per minute 13 p/min
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks

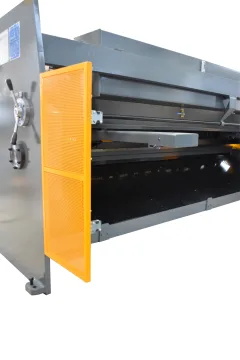

The LUXCUT GHS4000NCx10 is an efficient electro-hydraulic swing beam guillotine which is designed to cut steel & other materials. Scott Machinery has included safety features of full fence blade guarding that will protect fingers and body parts from the blades during operation. Also fitted with side throat guarding & rear guarding with two photoelectric safety beams. The machine is fitted with four emergency stop buttons (2 on the front of the machine, one on the pendant control & one on remote foot pedal.)

The Estun E21 NC back gauge controller allows the user to simply enter the cut length into the controller & then the machine back gauge goes to that setting for cutting. The NC control saves much time in measuring & can be simply programmed for multi-step programming in a sequence of multiple cut lengths (up to 39 steps). The multiple-step programs can be saved for repetitive or recurring jobs. The NC controller also allows the machine to be simply operated by one person rather than aligning to a 4m cut line by two people.

Features:

  • Swing beam style design for reliable and accurate shearing
  • Hydraulic shearing via swing cutting beam
  • Hydraulic pistons for firm material clamping during cutting
  • Estun E21 programmable NC back gauge controller with powered movement, multi step programming, and memory for repetitive cuts
  • Light shadow line for precise manual alignment with the cutting line
  • Quick set blade clearance lever for fine micro adjustment depending on sheet thickness
  • Continuous stroke cycle function for repetitive cutting
  • Pendant mounted control arm for operator convenience
  • Front arm supports & squaring arm to assist in accurate material handling
  • Ball-type front material transfer table for smooth and effortless sheet feeding
  • Supplied without oil (approx 300 lts) TBC

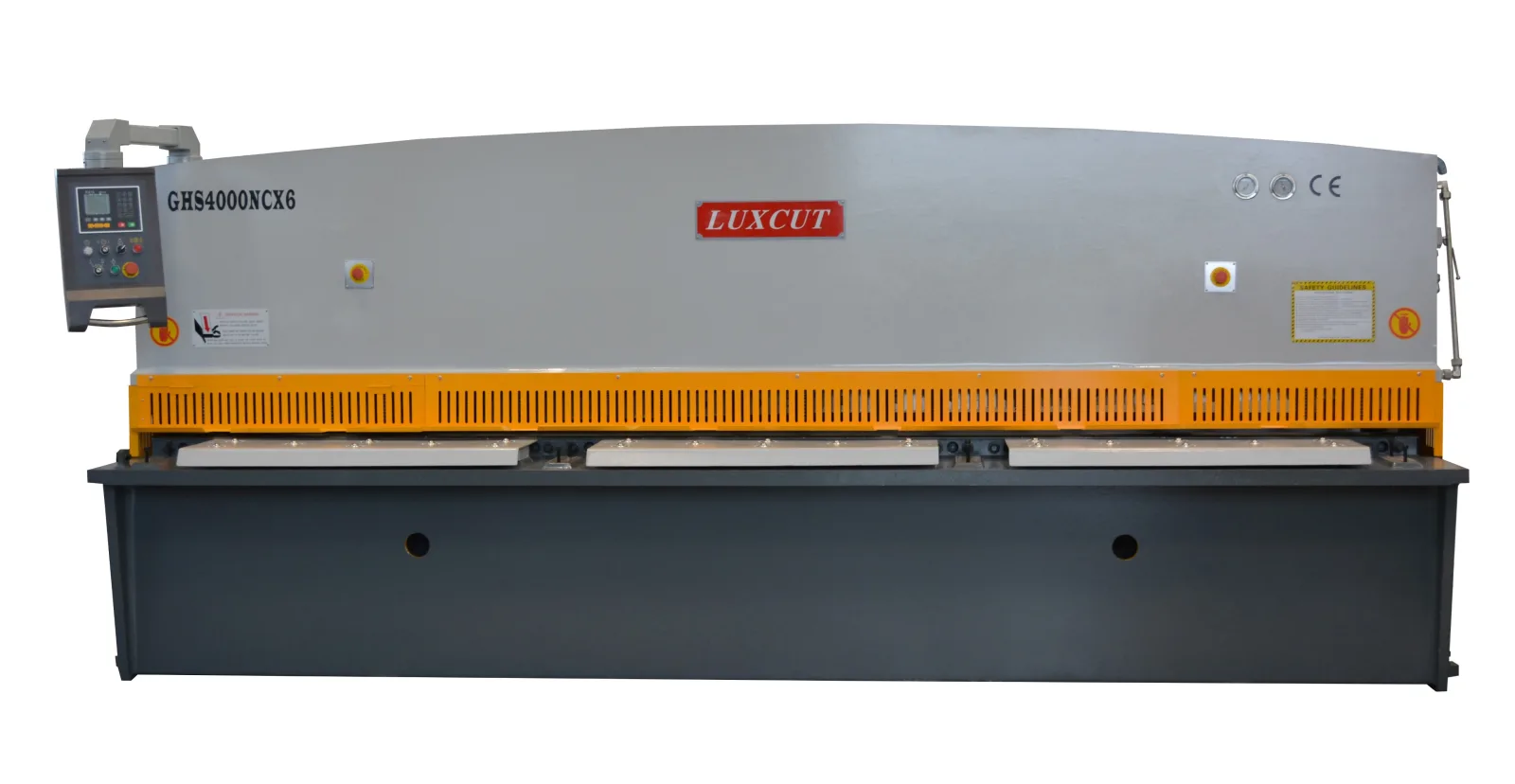

  • Please note: Photo shown is GHS4000NCx6mm

Safety features:

  • Remote foot control pedal with emergency stop
  • Four latching emergency stop buttons
  • Blade protection guard with micro-switch
  • Fixed guarding with latching photoelectric safety beams
  • Main isolation switch with lockout

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Shearing capacity 1mm - 10mm mild steel
Shearing width 4000mm
Shearing angle 1.3 degrees
Strokes per minute 13 p/min
Throat 150mm
Height of work table 810mm
Max back-gauge range 20-1000mm
Main motor drive 11kw
Dimensions (L x W x H ) 4800mm x 3100 x 2000mm (includes front supports)
Machine weight 11,200kg
