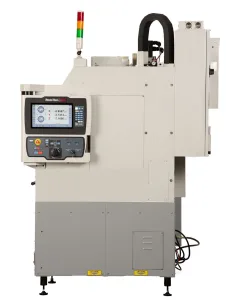

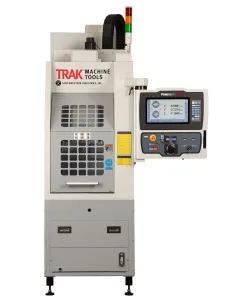

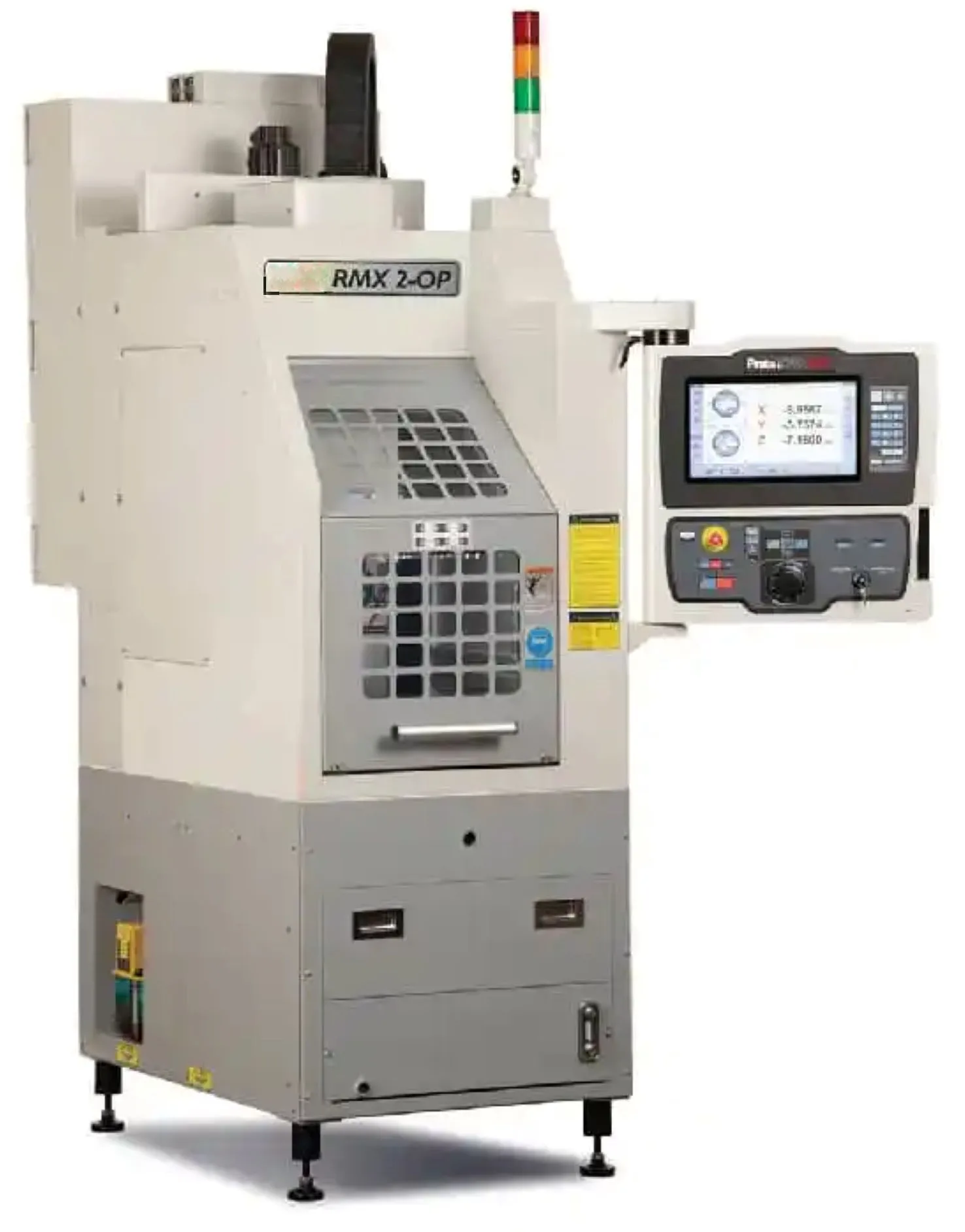

King Rich TRAK RMX 2op ProtoTRAK CNC Mill

Give yourself an advantage! Second operation, portable VMC.

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

X Axis Table Travel 356mm
Y Axis Table Travel 461mm
Z Axis Table Travel 435mm
Table size 457x381mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Designed to be easy to learn, use, and move, the TRAK RMX 2OP is one of the first portable VMC designed for second operations work. It allows a second spindle to be brought quickly and easily to operators idled by the cycle time of their primary machines so that both first and second operations can be run simultaneously. This arrangement makes it practical, for the first time, the creation of work cells. The result is part cycle time is reduced and output is increased at no additional cost in labour.

Easy to Increase Productivity: Run spindles simultaneously vs. sequentially Reduce cycle times and increase output with no additional cost in labour Eliminate moving or stacking of parts Free more capable primary ("first operation") machines to perform more complex work

Win win

ProtoTRAK Standard Hardware

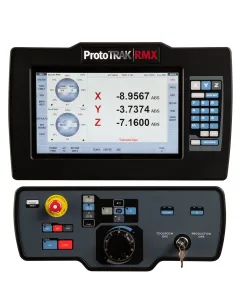

  • ProtoTRAK Touchscreen RMX Control
  • Optimised digital servo drives
  • 8 Station tool changer
  • Electronic handwheel
  • 10,000 rpm spindle
  • Tapping
  • Flood coolant
  • Worklight
  • Auto lubrication
  • USB Port
  • Networking

Optional Equipment

  • Advanced features
  • DXF converter
  • MT Connect
  • TRAKing for remote handwheel
  • Kurt modified vice
  • 4th Axis with controller
  • External USB drive
  • Offline programming

Key features

  • Clear, uncluttered screen display
  • Prompted data inputs
  • English language, no codes
  • Soft keys change within context
  • Windows operating system
  • 3-axis CNC
  • Inch/mm selectable
  • Absolute home location
  • Canned cycles - pockets, profiles, bolt hole patterns, etc.
  • Rigid Tapping

Machine video

See King Rich TRAK RMX 2op in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
X Axis Table Travel 356mm
Y Axis Table Travel 461mm
Z Axis Table Travel 435mm
Table size 457x381mm
Spindle to table 70-525mm
Rapid feed rate 15M/min
Max table load 250kg
"T" slot size 16mm
"T"slot number and pitch 4 of@ 63mm
Spindle speeds 50-10,000 rpm
Spindle motor 2.25kw (3hp)
Spindle Taper BT30
Tool changer 8 Station
Max tool diameter 50mm
Machine weight 1,100kg
Footprint 880x1,800x2,520mm (+600mm for pendant)
Pull stud type JIS B 6339
Ball screw 6mm Pitch
AC digital servo motors max torque X=7Nm / Y=7Nm / Z=9Nm
Cutting feedrates 1,500 MM/min
Coolant tank capacity 68L
Working height ( without riser blocks) 2570mm
Power requirements 21 AMP
Air requirements 6 Bar ( 220lL per min)
