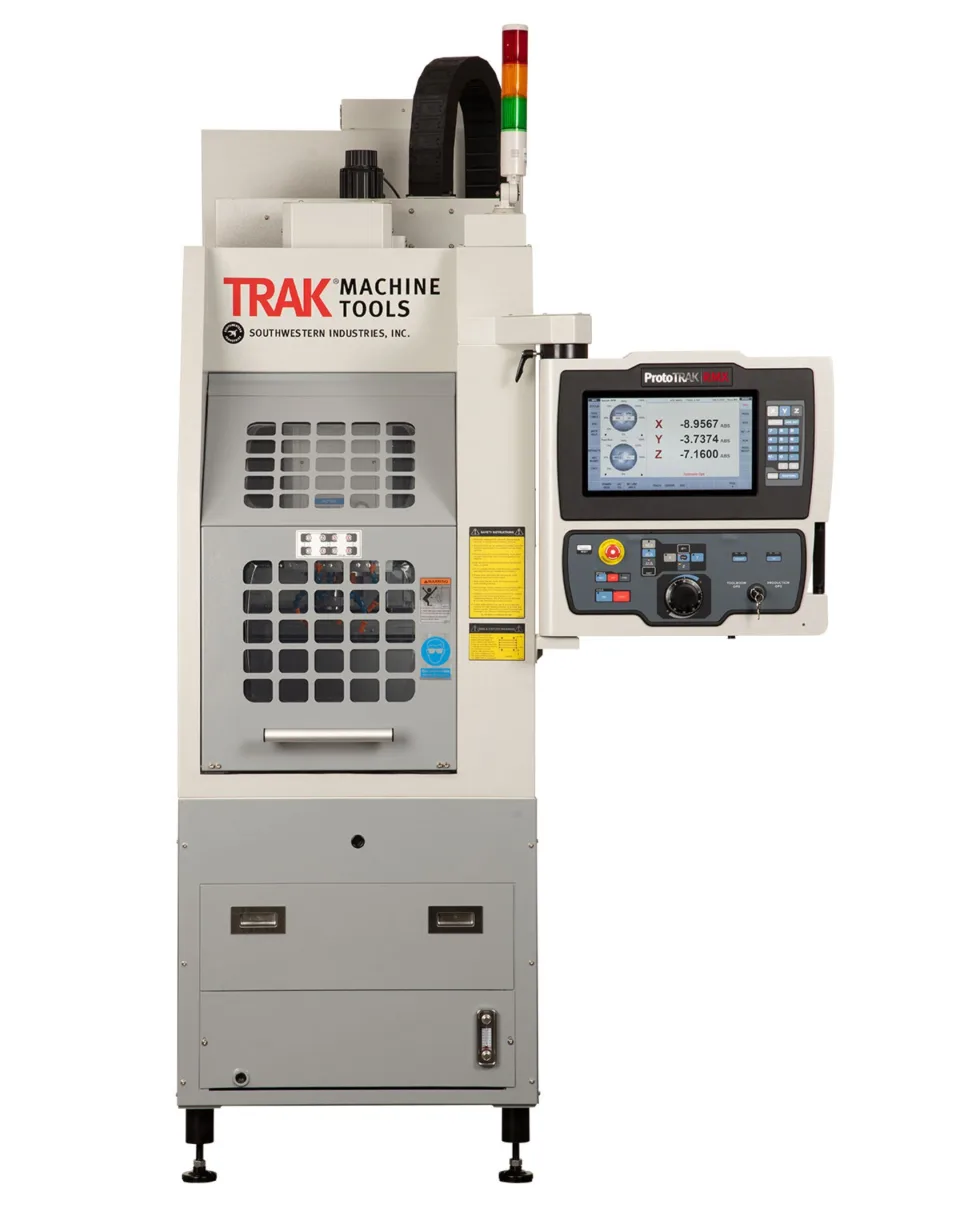

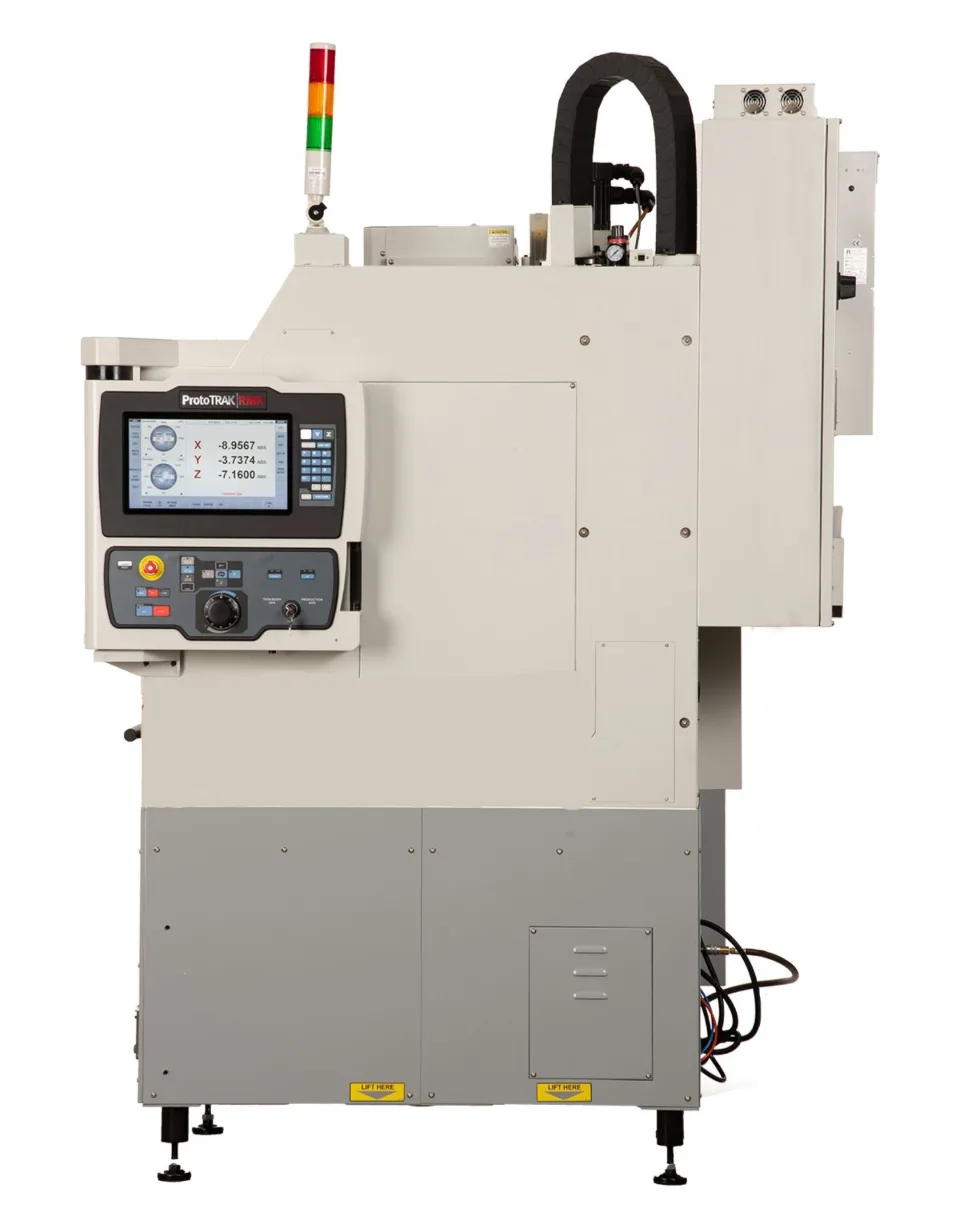

King Rich TRAK RMX 2op ProtoTRAK CNC Mill
3 axis
Product overview
About this machine.

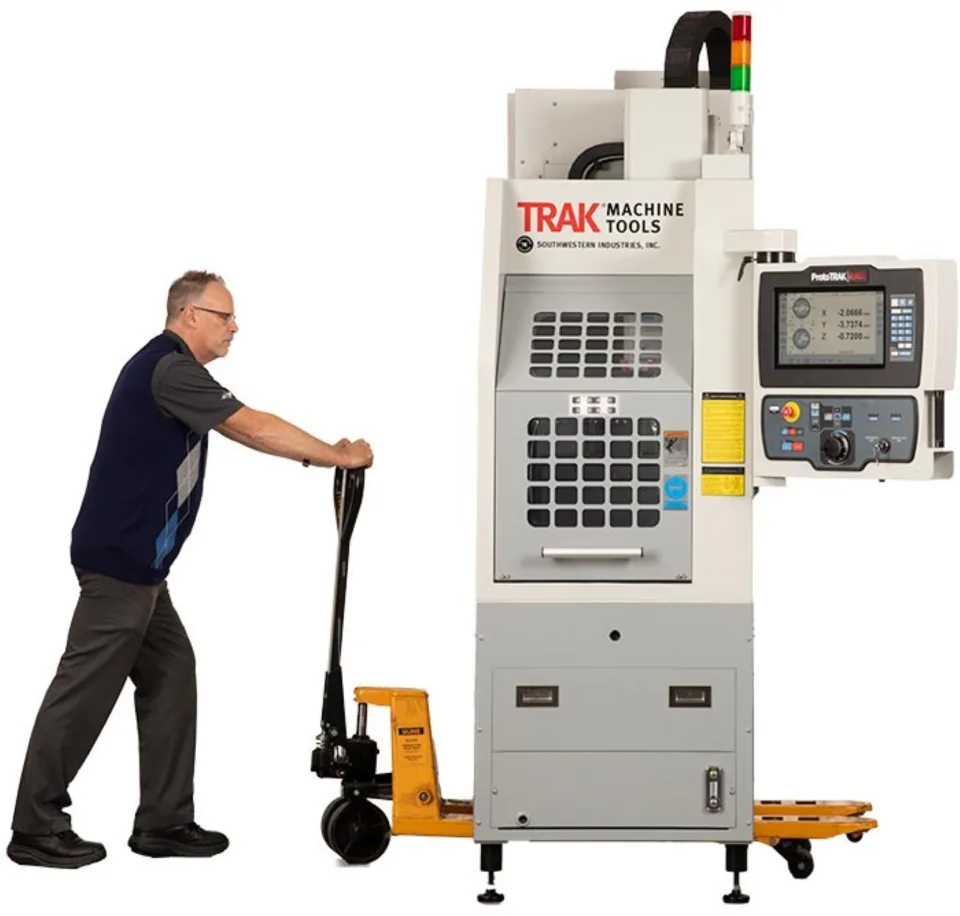

Designed to be easy to learn, use, and move, the TRAK RMX 2OP is one of the first portable VMC designed for second operations work. It allows a second spindle to be brought quickly and easily to operators idled by the cycle time of their primary machines so that both first and second operations can be run simultaneously. This arrangement makes it practical, for the first time, the creation of work cells. The result is part cycle time is reduced and output is increased at no additional cost in labour.
Easy to Increase Productivity: Run spindles simultaneously vs. sequentially Reduce cycle times and increase output with no additional cost in labour Eliminate moving or stacking of parts Free more capable primary ("first operation") machines to perform more complex work
Win win
ProtoTRAK Standard Hardware

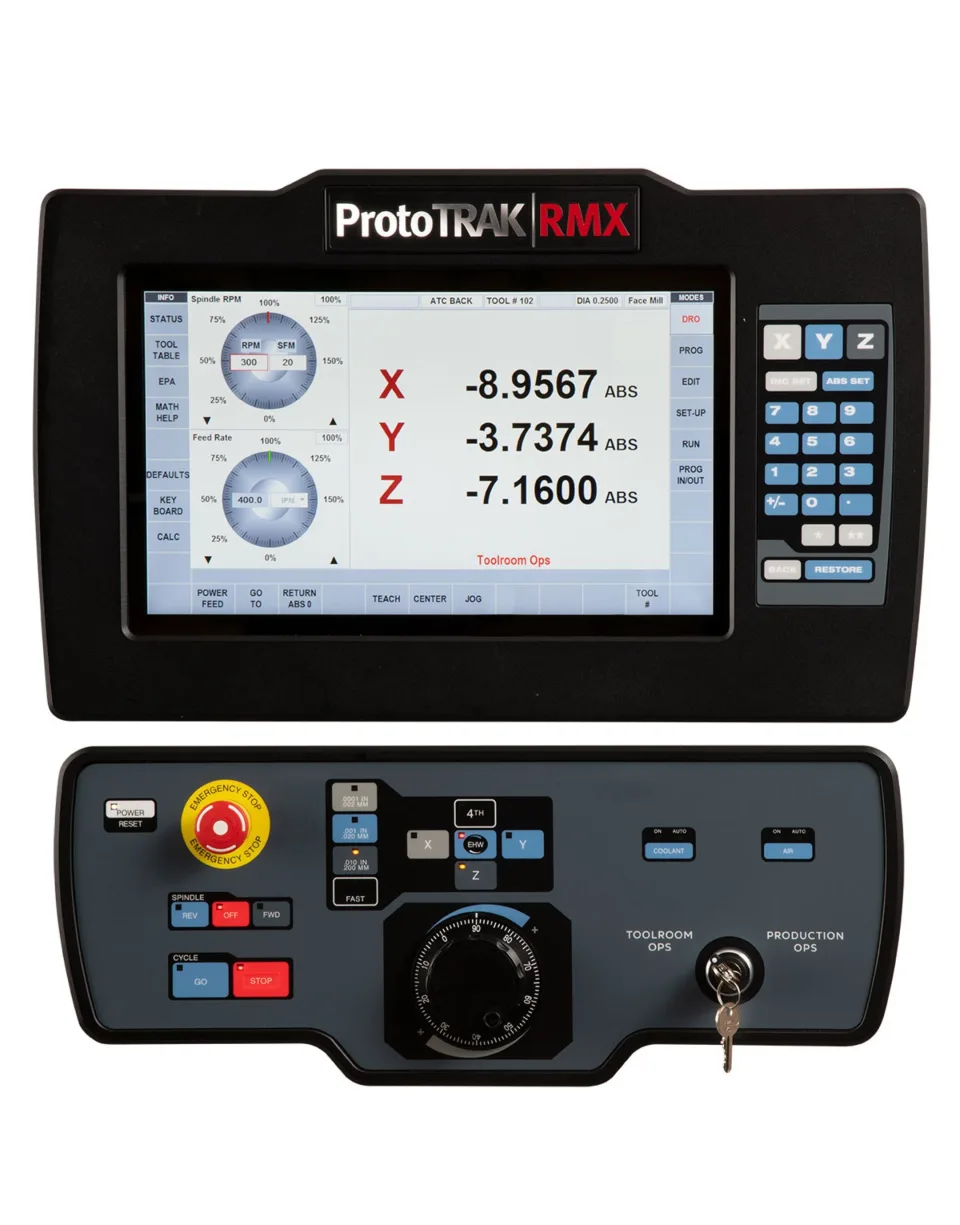

- ProtoTRAK Touchscreen RMX Control
- Optimised digital servo drives
- 8 Station tool changer
- Electronic handwheel
- 10,000 rpm spindle
- Tapping
- Flood coolant
- Worklight
- Auto lubrication
- USB Port
- Networking
Optional Equipment
- Advanced features
- DXF converter
- MT Connect
- TRAKing for remote handwheel
- Kurt modified vice
- 4th Axis with controller
- External USB drive
- Offline programming
Key features
- Clear, uncluttered screen display
- Prompted data inputs
- English language, no codes
- Soft keys change within context
- Windows operating system
- 3-axis CNC
- Inch/mm selectable
- Absolute home location
- Canned cycles - pockets, profiles, bolt hole patterns, etc.
- Rigid Tapping
