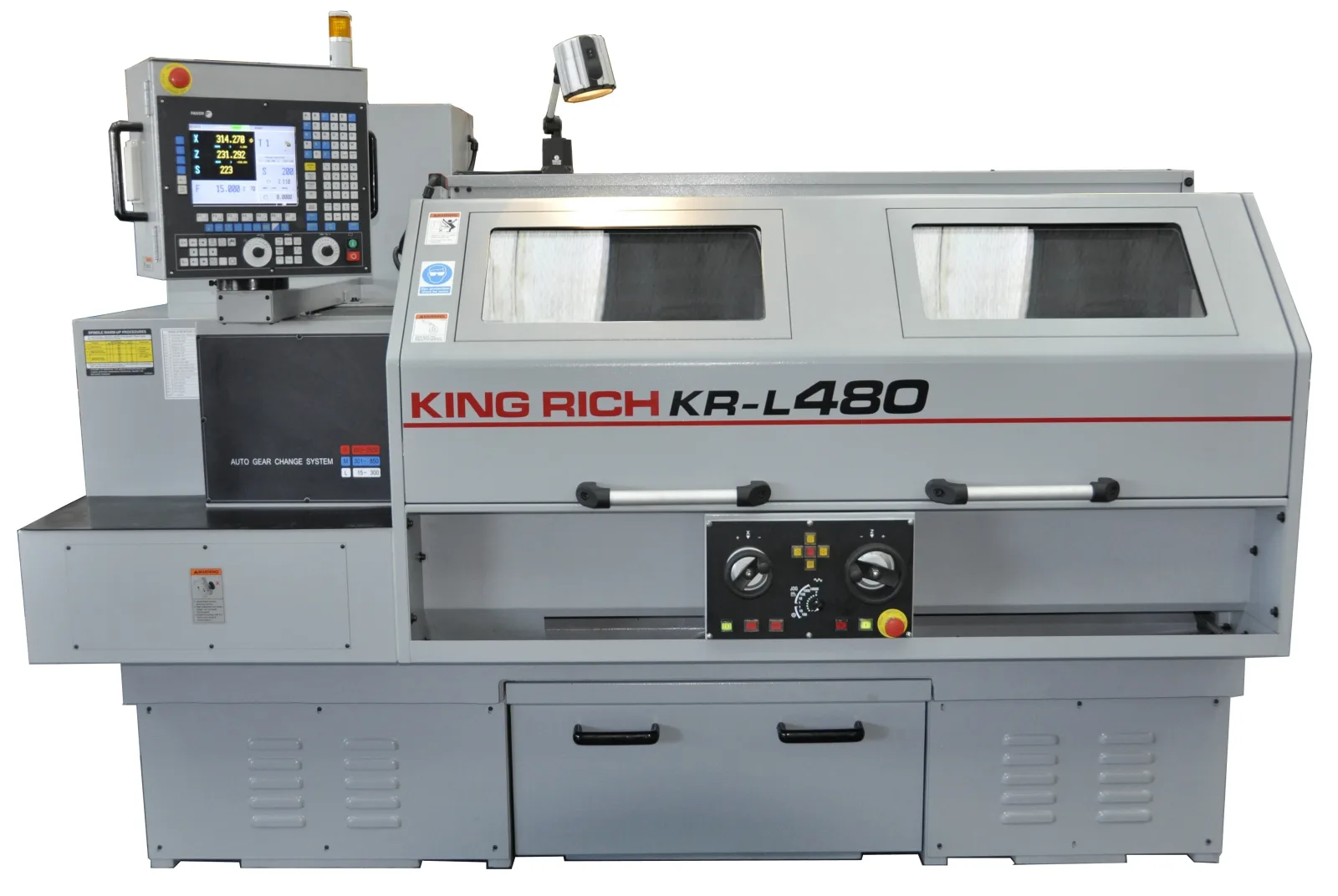

King Rich KR-L480 Combination Manual/CNC Lathe
8 station auto tool turret 1250mm between centres
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
A perfect size teach lathe for general engineering. It has features including a nice roller door system which keeps the machine fully enclosed, external hand wheels and controls, a nice chip removal tray system and having the control mounted above the headstock works well as this is the direction you are looking when watching machining.
Quality Taiwanese Manufacturing

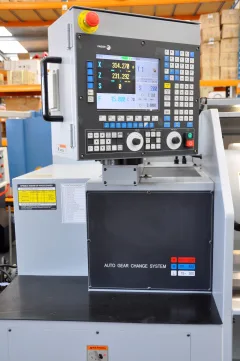

- Fagor 8058-TC Control
- Fagor digital spindle drive and motor
- Conversational Easy Programming
- Solid Graphics Simulation
- Saddle and guideway c/w turcite-B
- Automatic Headstock Gear Range Change
- Roller door style enclosed Guarding

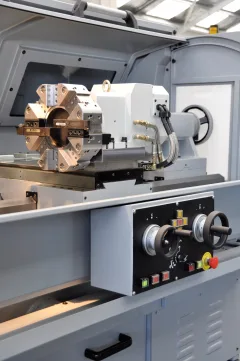

- X/Z Electronic (MPG) hand wheels on Carriage
- Integrated machine base and bed for rigidity
- Camlock spindle
3 Jaw lathe chuck 250mm (Strong KD8-10)
- 8 Station Servo (high speed) Turret
- Auto Lubrication System
- Heat exchanger for the headstock oil, with filter
- Air assisted levitating tailstock
- Ethernet, USB and RS-232 file transfer options
Optional:
- Smaller model - KR-L360
- Larger model - KR-BL480
Note:
- Main guard must be closed for automatic mode
- (not shown in video)
