King Rich KR-L480 Combination Manual/CNC Lathe
c/w Fagor 8058 control
POA
CNC-0-4800 | Prices exclude GST
Product overview
About this machine.
A perfect size teach lathe for general engineering. It has features including a nice roller door system which keeps the machine fully enclosed, external hand wheels and controls, a nice chip removal tray system and having the control mounted above the headstock works well as this is the direction you are looking when watching machining.
Quality Taiwanese Manufacturing

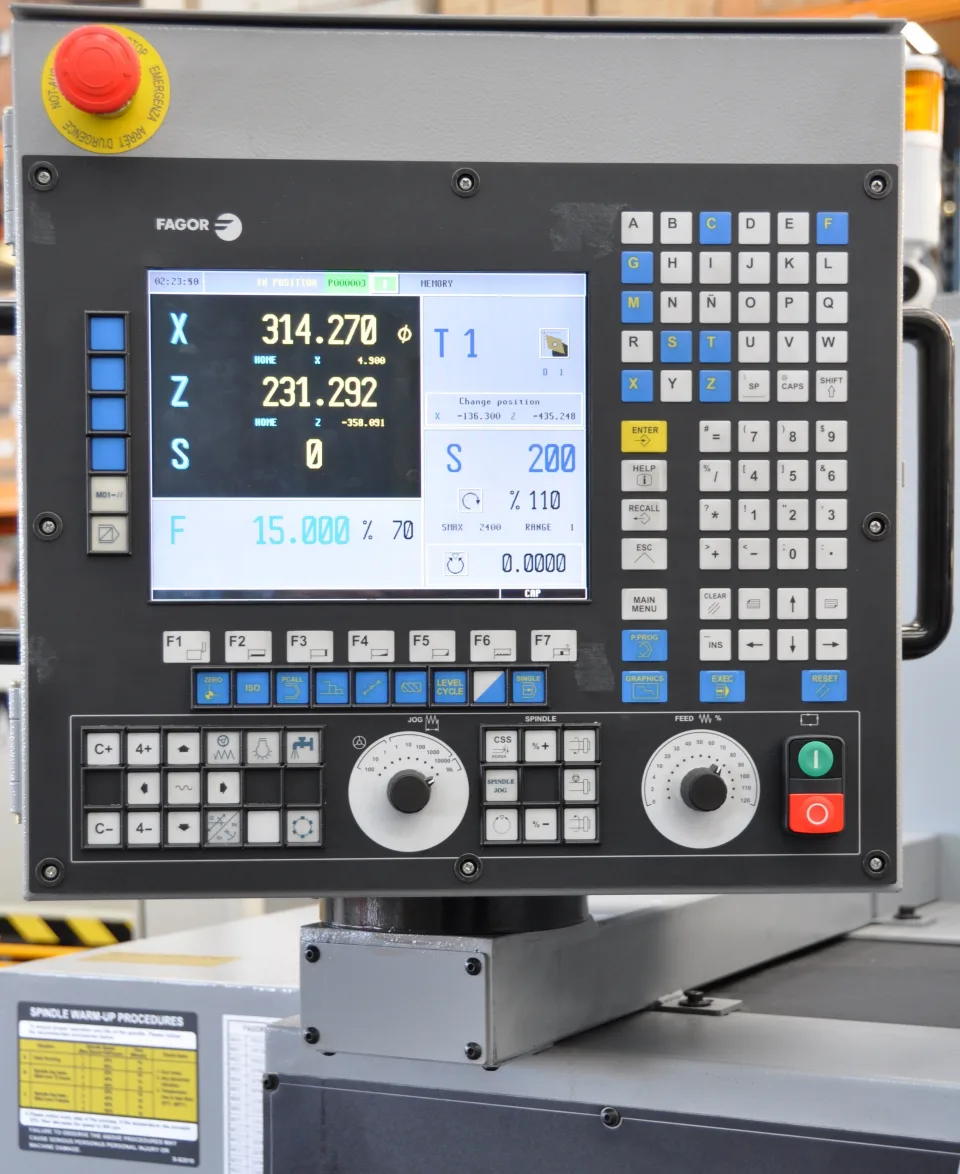

- Fagor 8058-TC Control
- Fagor digital spindle drive and motor
- Conversational Easy Programming
- Solid Graphics Simulation
- Saddle and guideway c/w turcite-B

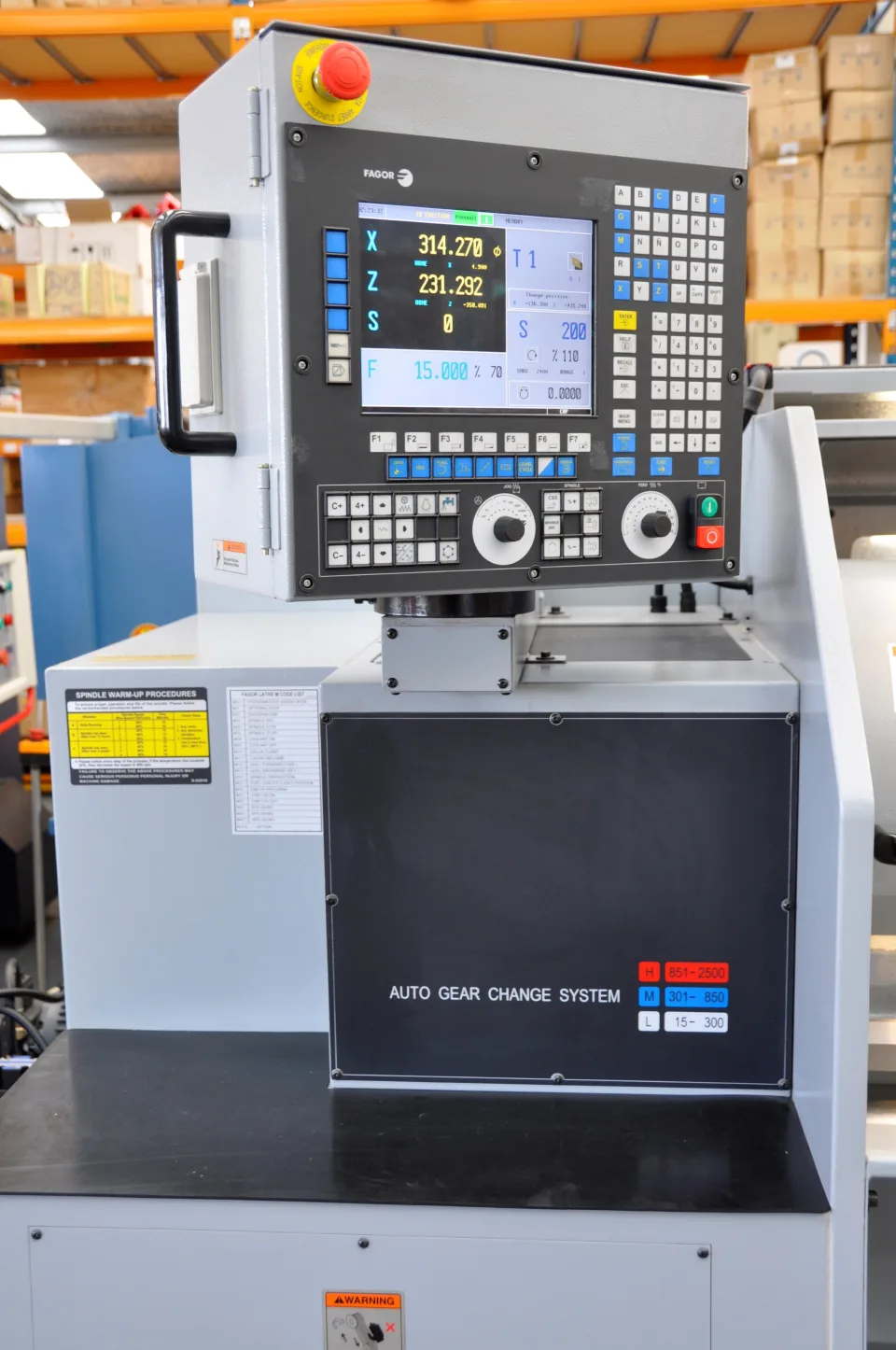

- Automatic Headstock Gear Range Change
- Roller door style enclosed Guarding
- X/Z Electronic (MPG) hand wheels on Carriage
- Integrated machine base and bed for rigidity
- Camlock spindle

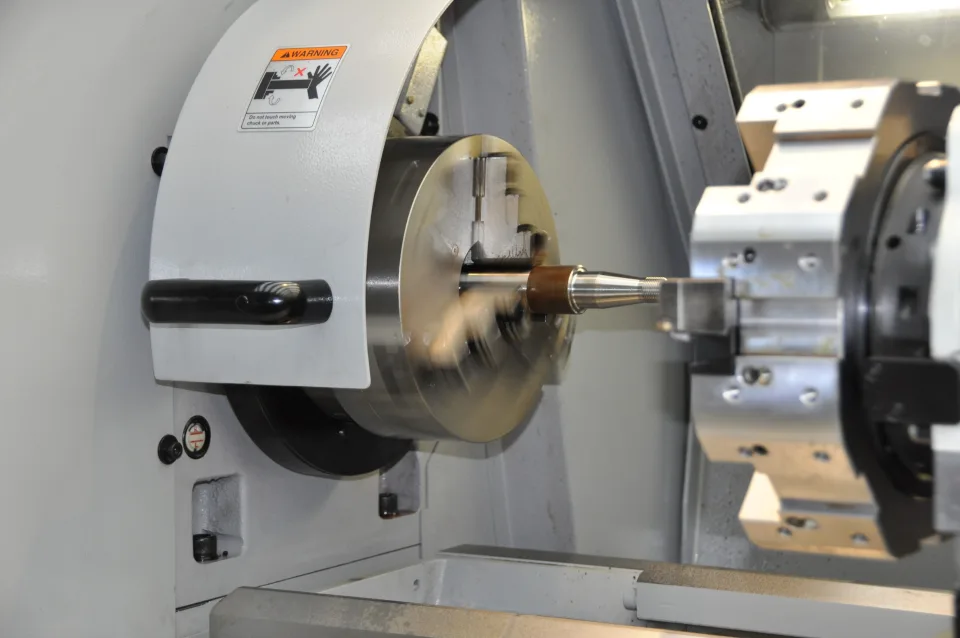

3 Jaw lathe chuck 250mm (Strong KD8-10)

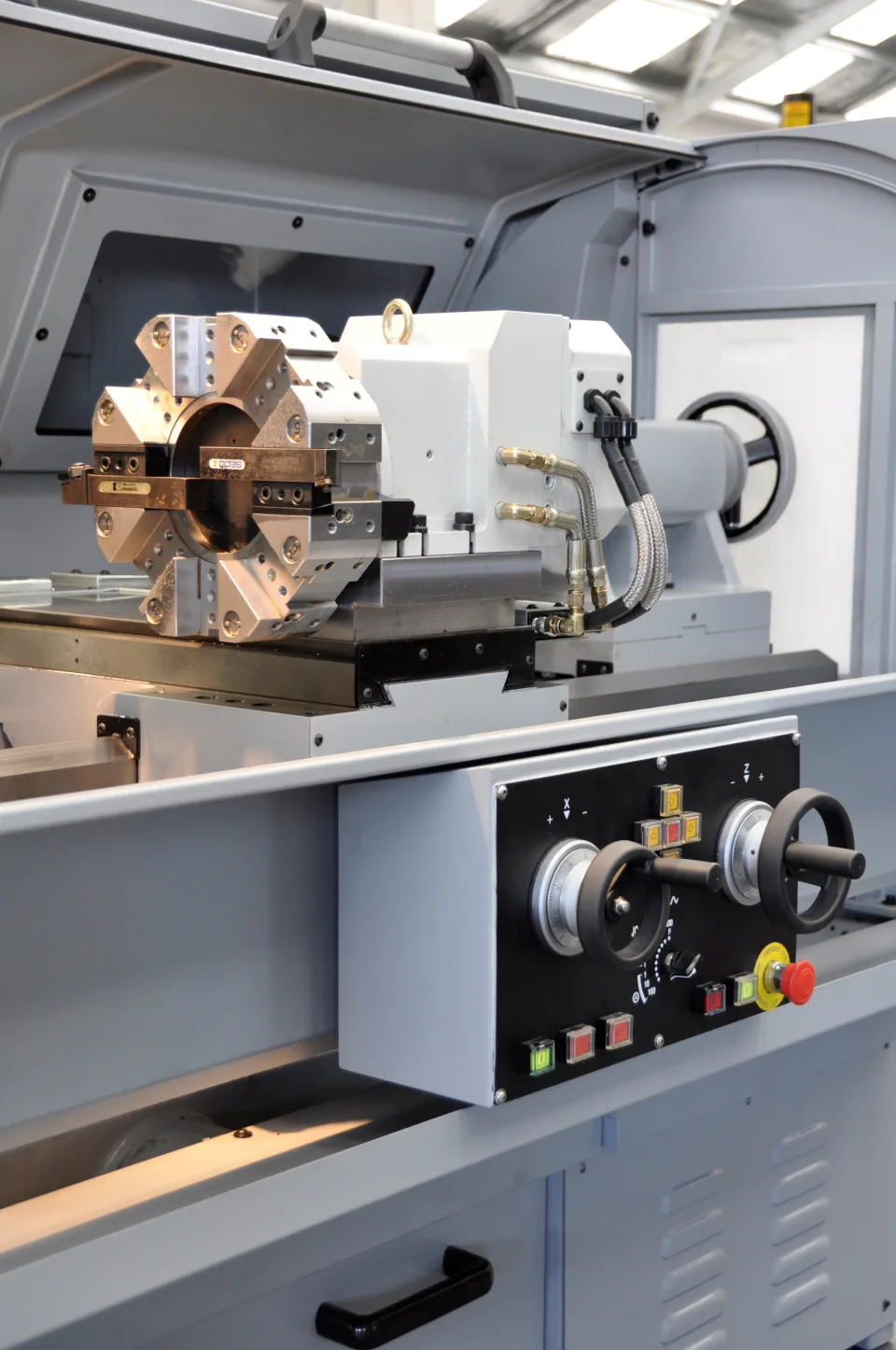

- 8 Station Servo (high speed) Turret
- Auto Lubrication System
- Heat exchanger for the headstock oil, with filter
- Air assisted levitating tailstock
- Ethernet, USB and RS-232 file transfer options
Optional:
- Smaller model - KR-L360
- Larger model - KR-BL480
Note:
- Main guard must be closed for automatic mode
- (not shown in video)
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
KR-L480 CNC
Swing over bed
480mm
Swing over cross slide
263mm
Swing in gap
700mm
Spindle bore
80mm
Spindle nose
D1-8
Width of bed
370mm
Turning length
700mm
Work piece length
940mm
Distance between centres
1250mm
Speed range
15 - 2,500 rpm (3 ranges)
Tailstock taper
5MT
Tooling size (external)
25 x 25mm
Motor power
7.5kW
Weight
3,150kg
Floor space
2,620 x 1,265 x 1,820mm (LxWxH)
Shipping
10.3m3 3,400kg
