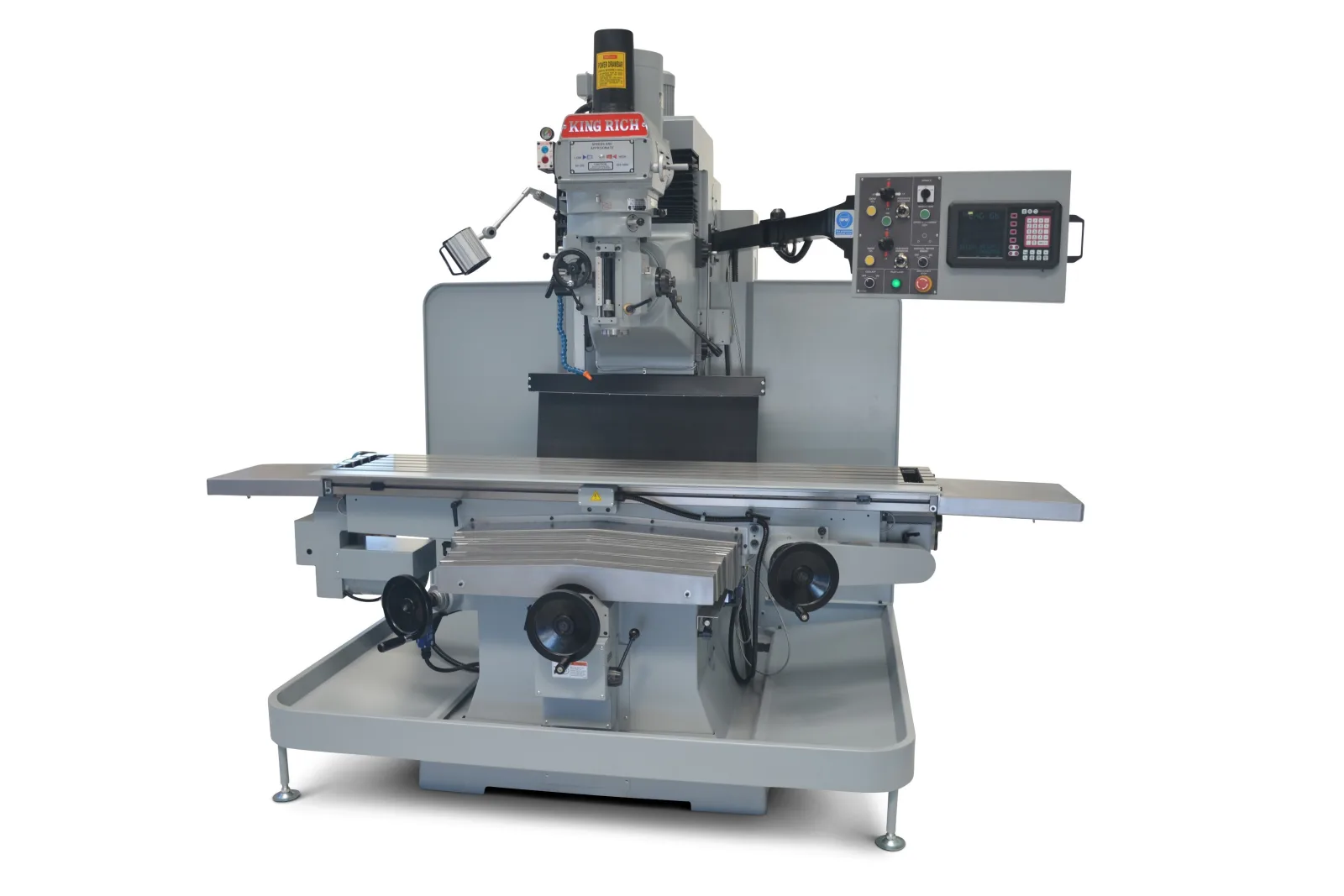

King Rich KR-B4V Rigid Bed Type Milling Machine
Premium quality, Heavy duty manual bed mill
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Speed range
60 - 3,000 rpm
Model
KR-B4V
Working surface of table
355 x 1930mm
Longitudinal travel
1500mm
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
Premium quality, Heavy duty manual bed mill
Quality Taiwanese Manufacturing
- Unique Honeycomb design Mehanite casting
- 3 Axis variable feed via inverter
- Ball screws on X&Y with auto lubrication
- Clutch fitted to transmission on X & Y
- Precision class 7 spindle bearings
- Maximum spindle runout 5 microns
- Vertical head movement by AC motor with auto brake
Powerfeed to quill 3 steps
- Hardened & ground slideways & table
- Power draw bar
- Coolant
- Halogen lamp
- Splash & chip tray + guarding options
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
KR-B4V
Working surface of table
355 x 1930mm
Longitudinal travel
1500mm
Cross travel
600mm
Vertical travel of head
480mm
Speed range
60 - 3,000 rpm
Quill diameter
116mm
Quill travel
140mm
Quill feeds
0.0418 / 0.0786 / 0.1303 mm/rev
Spindle taper
NT40
Spindle motor
7.5 hp
Nett machine weight
3200 kg
